Sany HGR 33 Placing Boom
- Product Code: WEB-SY-HGR33
-
Description:

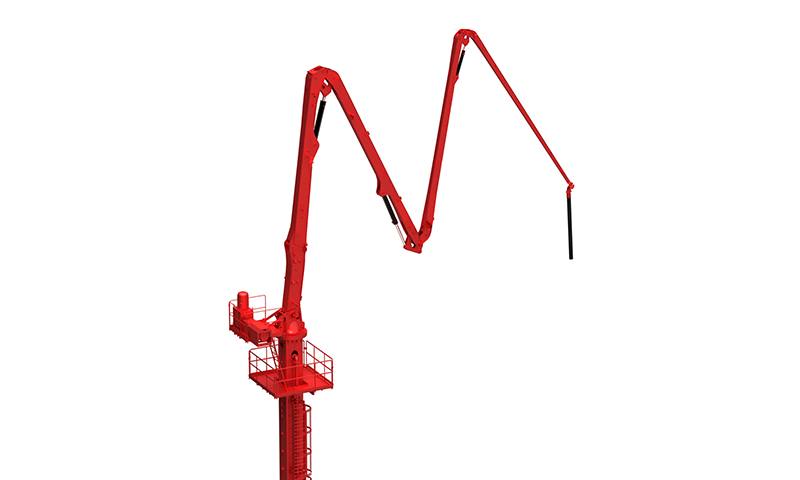

The Sany HGR 33 stationary placing boom has 4 arms and a reach of 33 m. Its excellent quality, reliability, super high efficiency, rapid installation, full 360° rotation, and dead-zone free boom features all contribute to the unique qualities of this Sany concrete placing boom.
Sany placing booms have been involved in the construction of major landmark projects such as Europe‘s tallest building – the Russian Federation Building – and China‘s tallest building – the Shanghai Tower.
TECHNICAL HIGHLIGHTS
Distribution boom: 4-sections
Delivery line: 125 mm, Double-layer pipeline
Delivery pressure: 85 bar
Hydraulic power unit: 15 kW
Max. pipe column: 18 m
ADVANTAGES & FUNCTIONS
• Quick assembly on site
• Robust, proven technology
• Climbs up with the building
TECHNICAL DATA
BOOM
Folding system - 4-arm Z
Vertical reach - 33.0 m
Horizontal reach - 33.0 m
Reach depth - 26.9 m
End hose length - 3 m
Max. column height - 18 m
Slewing range - 365°
DIMENSIONS
Overall length - 11505 mm
Width - 2513 mm
Height - 2800 mm
WEIGHT
Placing boom - 4.3 t
Pedestal w/o power pack - 3.7 t
