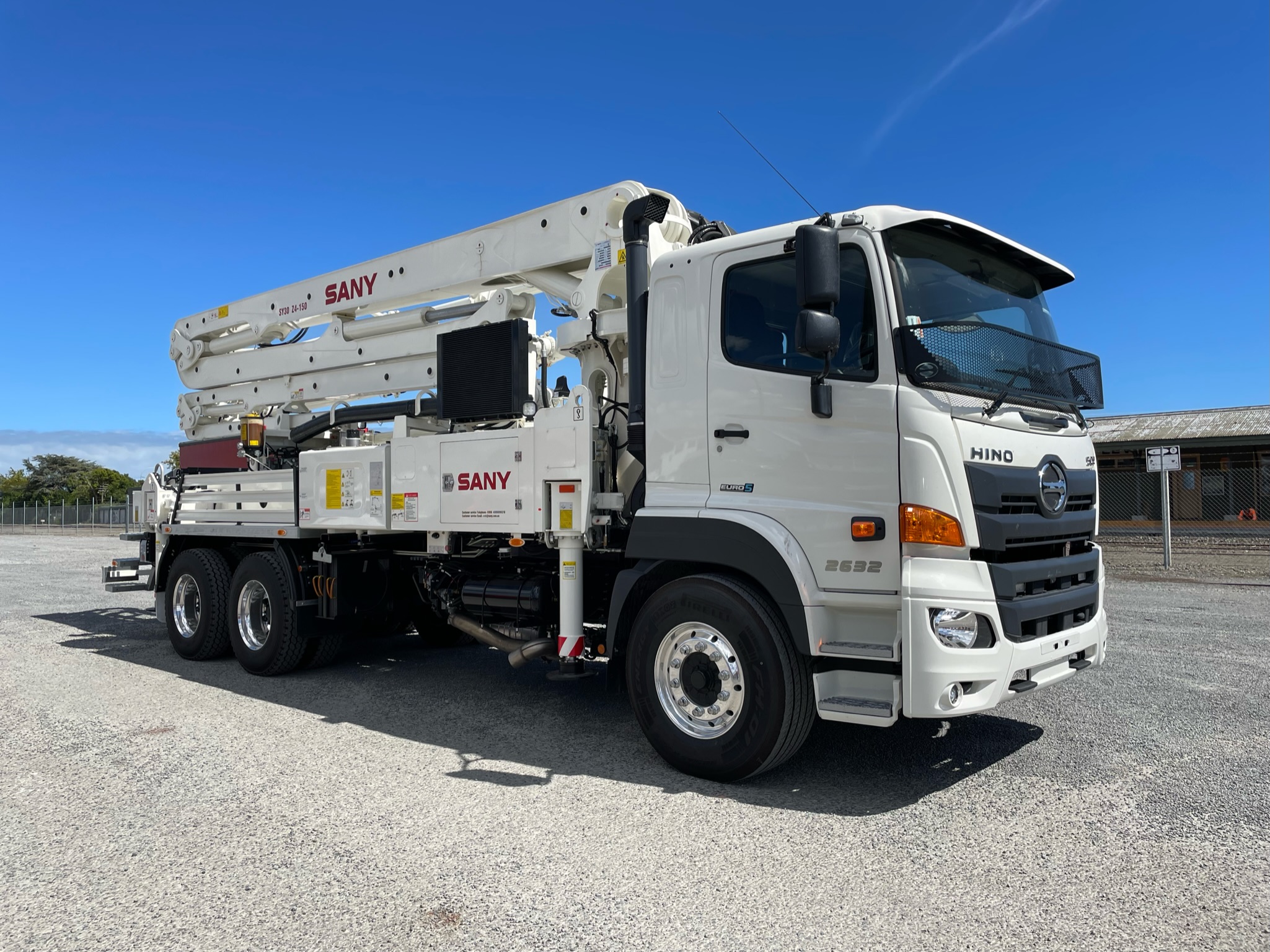

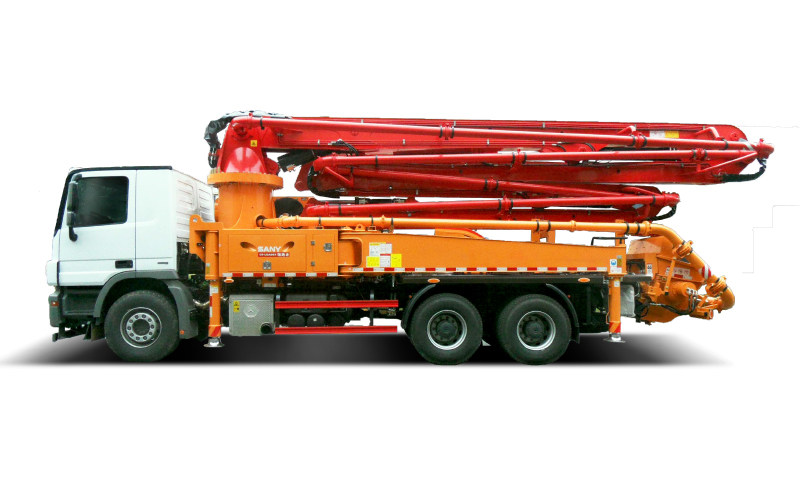

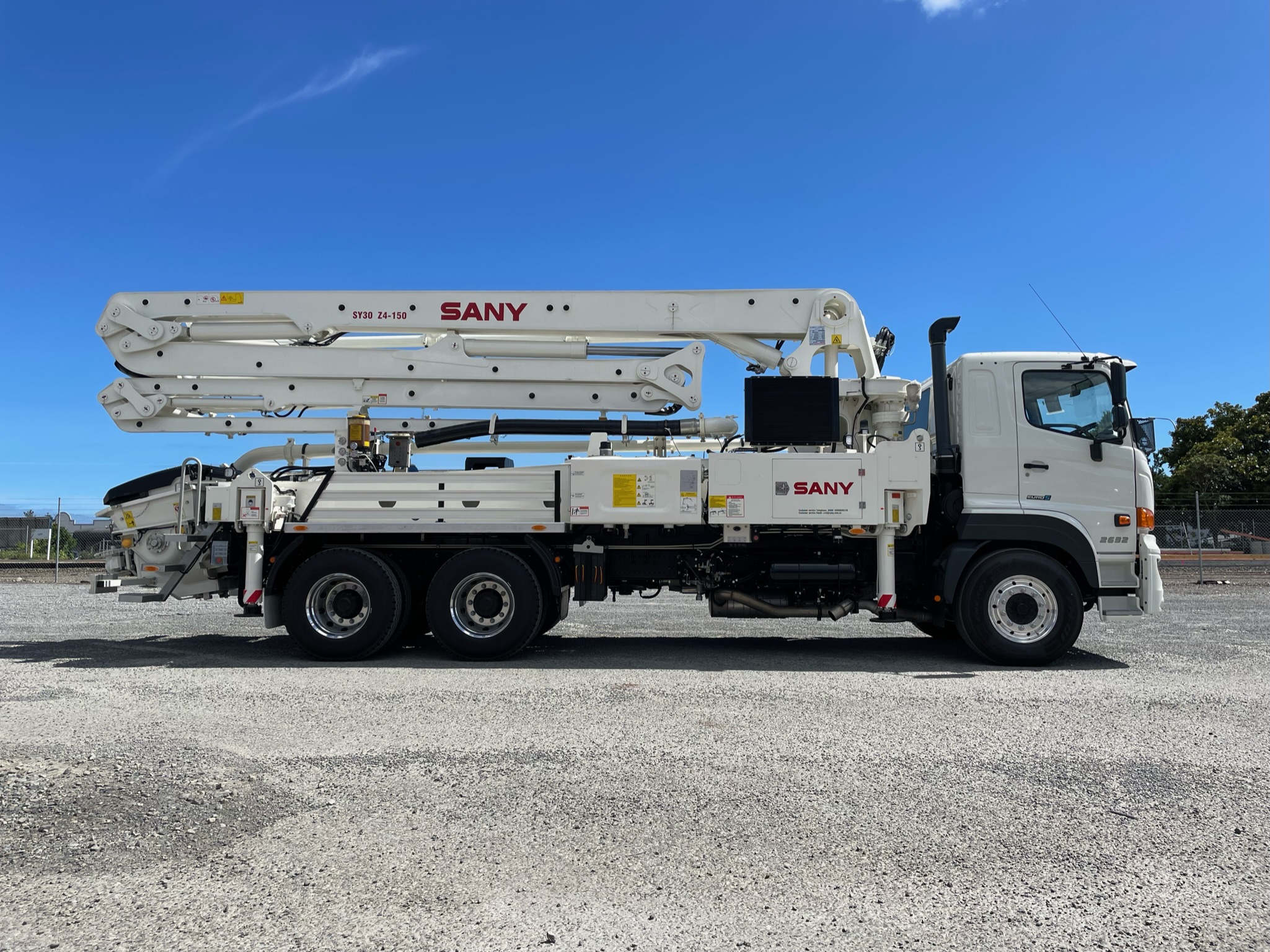

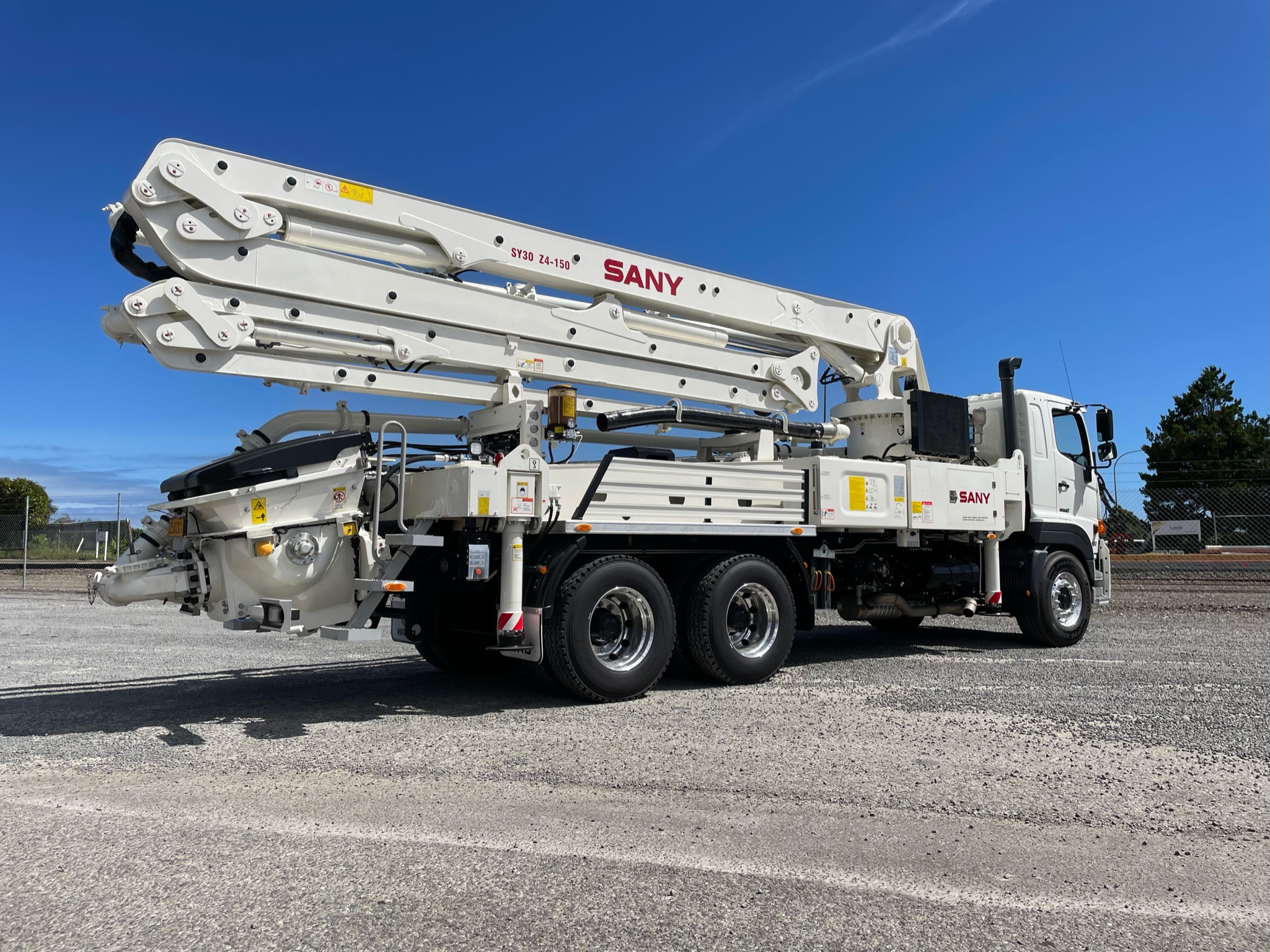

Sany 30M Truck-Mounted Concrete Pump

  • Product Code: WEB-SY30-Z4-150
  • Description:

    SANY truck-mounted concrete pumps have a heavy-duty design with a simple user interface, which includes an intuitive HBC wireless remote. SANY pumps adopt a range of core technologies to ensure smooth pumping and safe operation. These include 700-degree boom rotation, energy saving, fault self-diagnosis, safety, smart boom system and highly wear resistant parts. Fine production, rigorous tests and reliable components of world-renowned brands guarantee a long service life for your SANY concrete pump.



KEY FEATURES

• Water tank 400 l

• Working light for illuminating hopper

• OSS one side support (assistance device)

• Warning device boom not in cradle

• Vibrator on hopper grid

• Platform aluminium



TECHNICAL DETAILS

Folding System - 4-arm Z

Vertical Reach - 30.1 m

Horizontal Reach - 26.5 m

Unfolding Height - 9.6 m

Delivery Line - 125 mm

Delivery Cylinder Diameter - Stroke Length - 230/1600 mm

Output  - 137 m³/hr

Delivery Pressure  - 70 bar

Strokes / min  - 34



DOWNLOADS

Data Sheet SY30 Download
