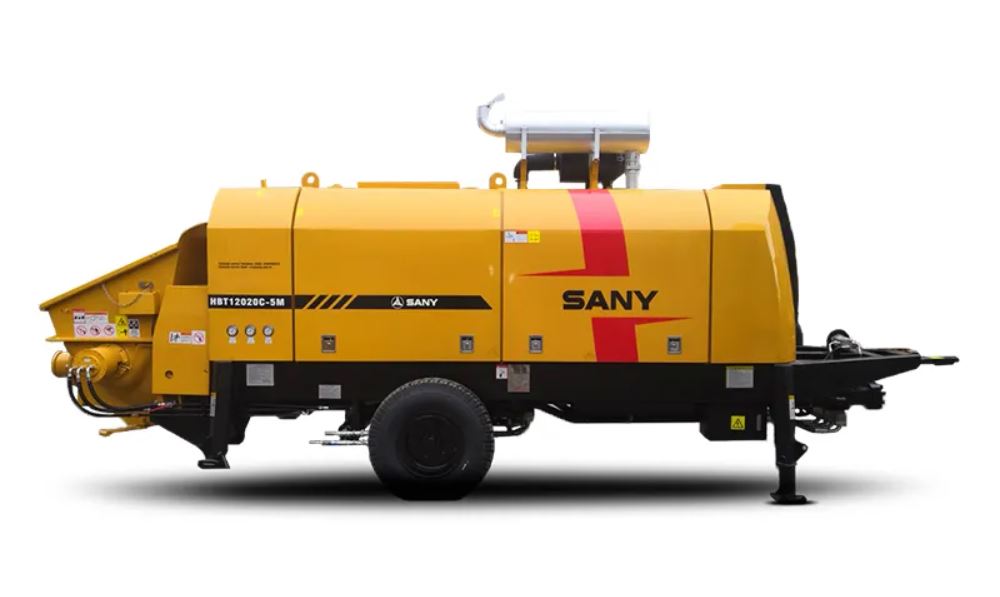

Sany 120 Series Trailer Pump
- Product Code: WEB-SYHBT12020C-5S
-
Description:
The Sany 120 Series Trailer Pump's advanced, efficient, intelligent and wear resisting technology make it a great choice.
FEATURES
Advanced Hydraulic System
• Differential pressure controlled, bi-directional hydraulic system
• High flow, high efficiency valve system
• Automatically retracted pistons
Intelligent Control System
• Fault self-diagnosis technology
• Dedicated motion controller
• Emergency Override Available
Efficient Pumping System
• High-efficiency pump technology
• Large bore reversing cylinder
• High power mixing motor
• New-type hopper
Advanced Energy-saving Technology
• New generation energy saving technology automatically adjusts engine power output to match the load results in fuel savings of up to 25%.
Wear-resisting Technology
• G5 improved wearing part Adopt Sino-Germany high-tech materials and advanced technology to greatly improve the product performance.
TECHNICAL DATA
Max Output Quantity - 120 / 75 m³/h
Max Output Pressure - 11 / 21 MPa
Engine Rated Power - 300kW
Generator/Engine - Diesel
Type - S-Valve
Dimension (L*W*H) - 7380 × 2125 × 2950 mm
Gross Weight - 9310 kg
Delivery Cylinder Bore*Strok - 200 × 2100mm
