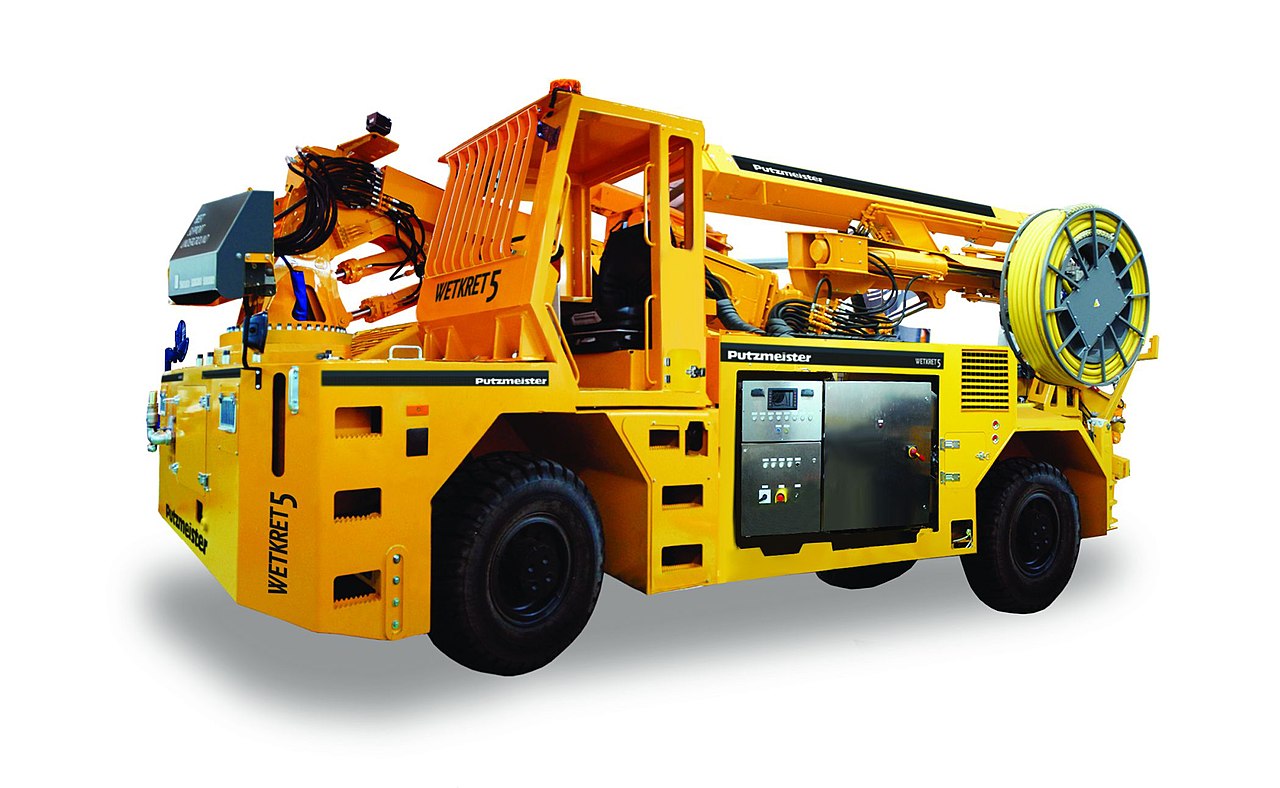

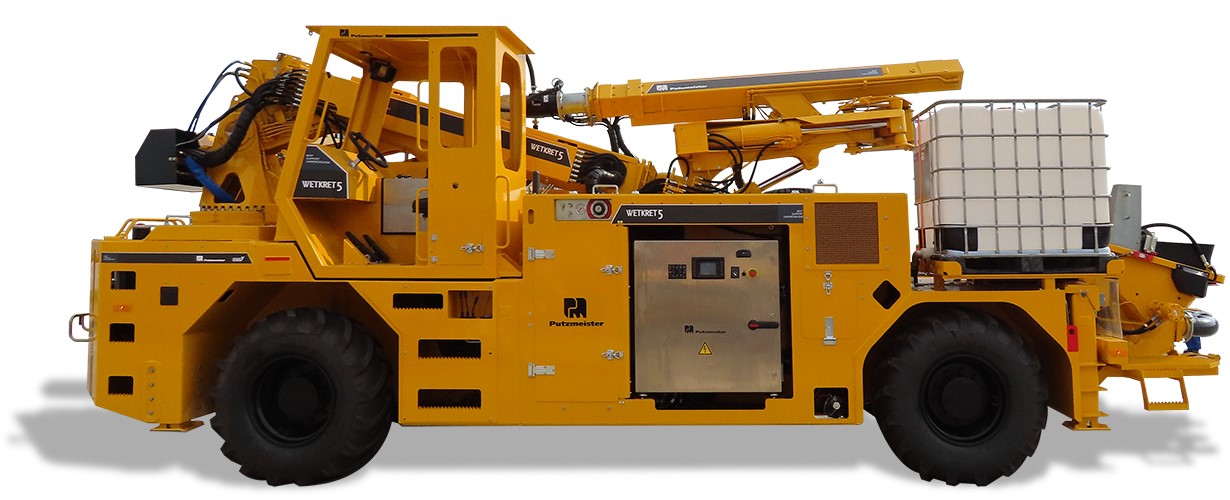

Putzmeister Wetkret 5 Shotcrete Machine
- Product Code: WEB-WETKRET5
-
Description:
Designed for safe and precise concrete spraying in medium and large tunnel sections. The robust Wetkret 5 concrete spraying equipment has all the features required for the highest quality shotcreting for demanding underground projects with medium to large cross-sections. Always putting safety first, Wetkret 5 has been designed for agile, long-lasting and autonomous work. The Putzmeister concrete pump guarantees low pulsation, the additive synchronization with the concrete flow is very precise, the remote control spraying arm can be moved easily to adapt to the cross-sections and control with intuitive software allows adjustments to be made to the mix and the troubleshooting of errors and alarms. In addition, with the built-in cleaning and compressor system, including the optional Hydroscaling system, no external components are required for applying the concrete.
PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.
KEY FEATURES
• Far reaching spraying arm providing 17 m spraying reach
• Diesel engine with Stage V emissions regulation, suitable for the EU
• Built-in cleaning system with diesel and electric operation
• Remote control, both with cable and wireless, for all machine functions and easy and precise handling of spraying arm movements
• The large diameter and long stoke of the Putzmeister concrete pump minimize pulsations and lengthen the life wear of its components
• Hopper with agitator, electric vibrator and RFID security system on the grille. Pumping of steel or polymer fibres. Easy and safety to open for maintenance and cleaning.
• Highly intuitive control software via a multilingual colour display. Allows adjustment of additive dosage, indicates the concrete flow rate and troubleshoots errors
• Screw additive pump with flowmeter to ensure a high-quality finish
• It can be equipped with numerous accessories, such as the optional Hydroscaling system for surface cleaning
TECHNICAL DETAILS
Length x Width x Height - 8,800 x 2,400 x 3,000 mm
Weight - 19,500 kg
Ground Clearance - 320 mm
Wheelbase - 4,550 mm
Max. Longitudinal Gradient while Driving - 30 %
Max. Transversal Gradient while Driving - 10 %
Drive System Electric - 55 kW
Engine - Diesel
Engine Power - 129 kW
Emission Stage - EU-Stage V / EPA-Tier 4f
Max. Speed - 20 km/hr
Diesel Tank - 200 + 18.9 Adblue l
Additive Pump Adjustment Range - 100-1,200 l/hr
Additive Pump Pressure - 12 bar
Additive Tank - 1,000 l
Control System - PLC
Delivery Cylinder Diameter - Stroke Length - 180/1000 mm
Output - 4-33 m³/hr
Delivery Pressure - 75 bar
Max. Aggregate Size - 16 mm
Filling Height - 1440 mm
SPRAYING ARM SA 7.2
Rotation - 360 degree
Inclination - +120/-120 degree
Nutation - 8 degree
Nozzle - DN40/DN50
