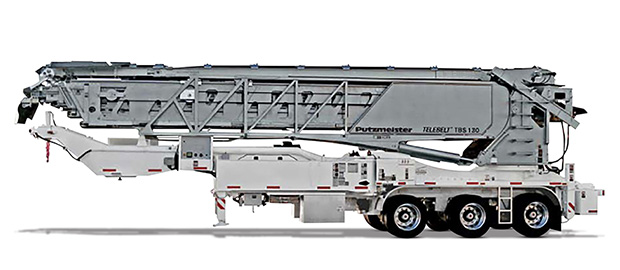

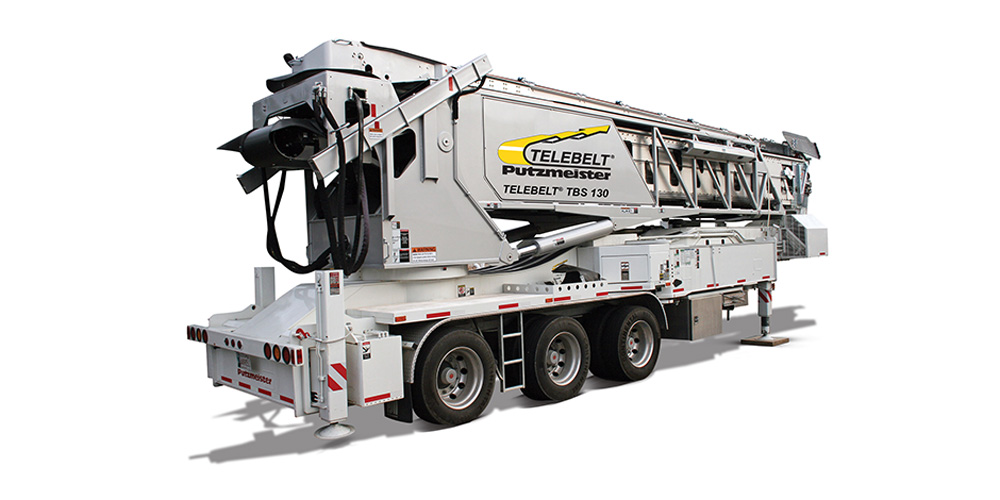

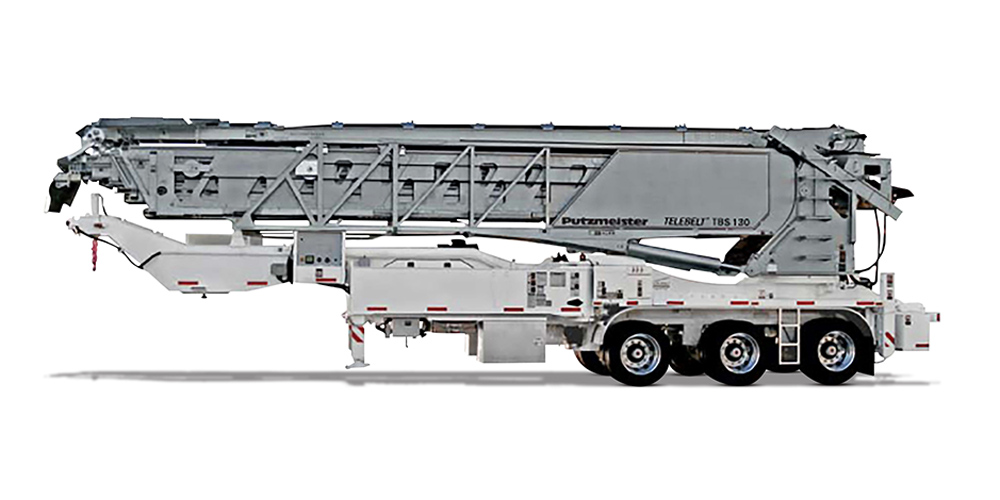

Putzmeister TBS130 Telebelt
- Product Code: WEB-TBS130
-
Description:
You get unmatched versatility from the 5th wheel configuration of the Putzmeister Telebelt® TBS 130. Greater mobility, tighter turning radius, reduced axle loads and a reduced footprint will come in handy on any job site. It delivers up to 275 m³ per hour with a horizontal reach of 38.47 m. You can specify the type of chassis and the trailer axle configuration to meet your local requirements.
PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.
KEY FEATURES
• 5th wheel configuration for mobility, tighter turning radius, and reduced axle loads
• Six hopper options for different job needs
• Low unfolding heights
• Telescoping boom
• Ideal for mass concrete placement
TECHNICAL DETAILS
Arms - 5
Conveyor Horizontal Reach - 38.47 m
Conveyor Horizontal Reach - 33.74 m
Conveyor Belt Width - 457 mm
Feed Conveyor Length - 11.60 m
Feed Conveyor Belt Width - 457 mm
End Hose - Length - 4.57 m
Discharge height from grade - 20.48 m
Discharge height from grade - 8.14 m
Rated capacity main and feed conveyors by minute - 4 m³/min
Rated capacity main and feed conveyors by minute - 4 m³/min
Slewing Range - 360°
Horizontal Reach net - 36.70 m
Horizontal Reach net - 31.97 m
Outrigger spread - hydraulically rotate out and down (front-rear) - 8.56 / 8.10 m
Outrigger load: Front-Rear - 234 / 206 kN
Weight - 36390 kg
Engine - Deutz TCD2012 (Caterpillar C6.6 ACERT optional)
Engine Power - 155 kW
