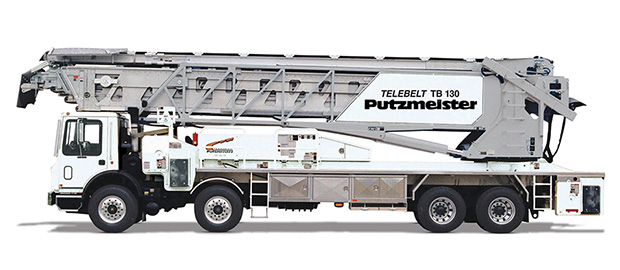

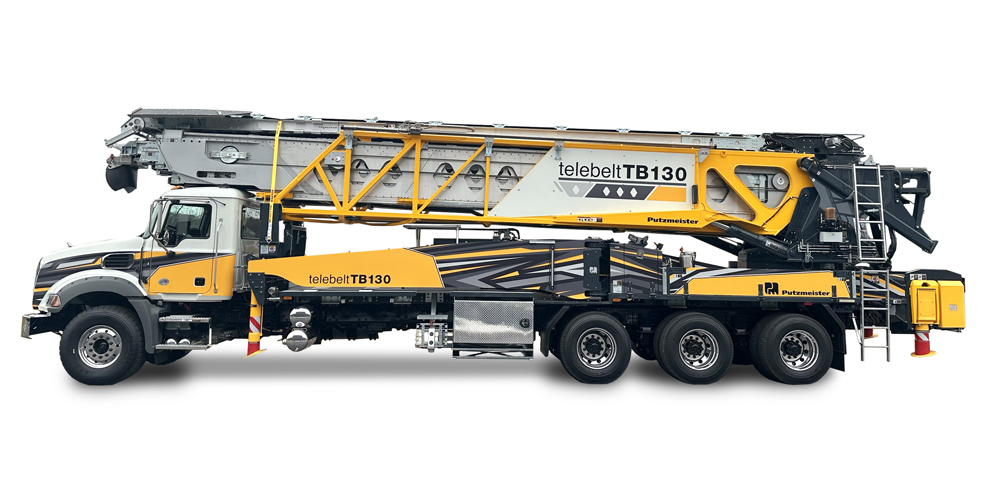

Putzmeister TB130 Telebelt
- Product Code: WEB-TB130
-
Description:
Strong, yet lightweight and easy to control, the Putzmeister Telebelt® TB 130 conveyer has a horizontal reach of 38 m to save you time and labor. The five-section telescoping boom and fully hydraulic conveyor handle concrete slumps up to 305 mm and materials ranging from sand to 100 mm rock. With an outrigger design for quick setup in congested areas and rough terrain, the TB 130 is ideal for projects such as wind farms, dams, bridge decks, and landscaping.
PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.
KEY FEATURES
• For a variety of material from non pumpable concrete to sand and gravel
• Six hopper options to fit different job needs
• Reversing conveyor feature to switch direction of material flow
• Performs multiple tasks from one location
TECHNICAL DETAILS
Arms - 5
Conveyor Horizontal Reach - 38.47 m
Conveyor Horizontal Reach - 33.74 m
Conveyor Belt Width - 457 mm
Feed Conveyor Length - 11.60 m
Feed Conveyor Belt Width - 457 mm
End Hose - Length - 4.57 m
Discharge height from grade - 20.1 m
Discharge height from grade - 7.86 m
Observed capacity - 4 m³/min
Observed capacity - 4 m³/min
Slewing Range - 360°
Horizontal Reach net - 36.81 m
Horizontal Reach net - 31.99 m
Outrigger spread - hydraulically rotate out and down (front-rear) - 8.46/8.84 m
Outrigger load: Front-Rear - 166/201 kN
Weight - 35 508 kg
