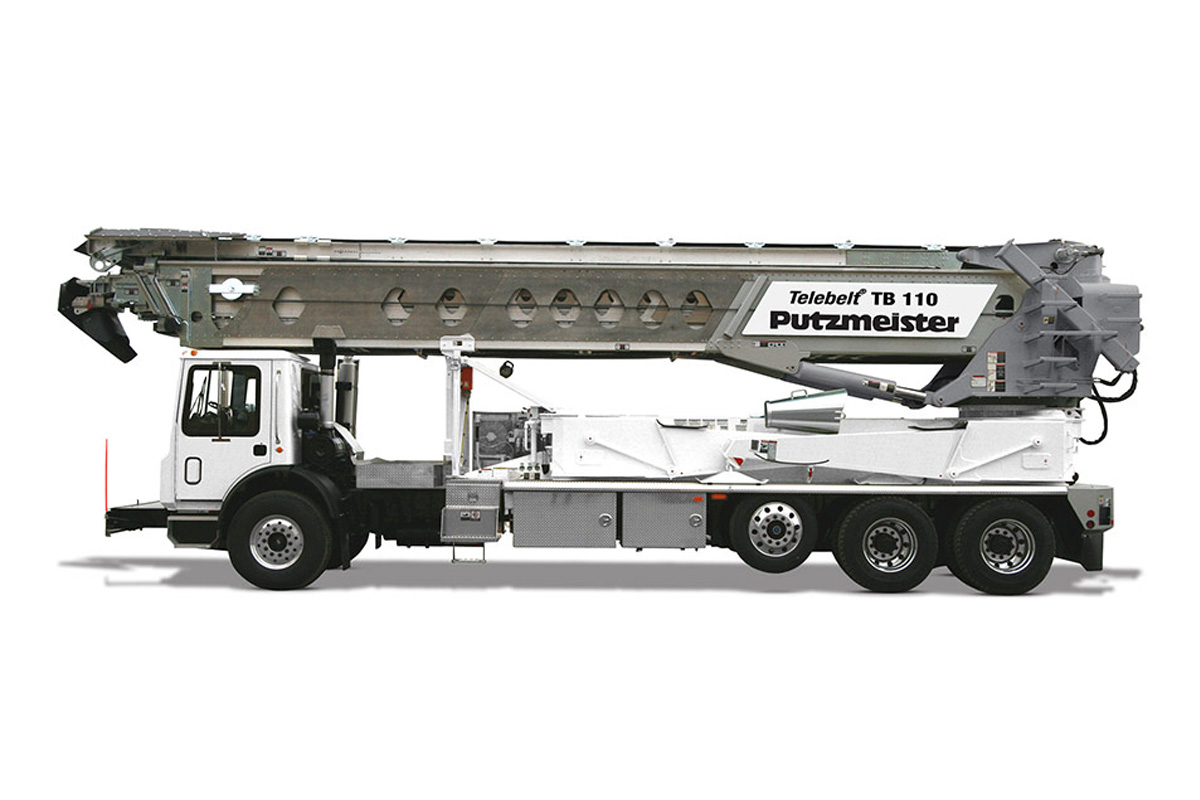

Putzmeister TB110 Telebelt
- Product Code: WEB-TB110
-
Description:
The TB 110 is a mobile belt conveyor for applications with low clearances. Operating at up to 5 m³ per minute, the Putzmeister Telescopic Belt Conveyor Telebelt® TB 110 can quickly convey a wide variety of materials ranging from sand to 10 cm gravel and rock. The four-section telescopic conveyor provides 32.33 m of horizontal reach in heights as low as 4.84 m with smooth, surge-free conveying. Setup is quick and easy in congested areas, even in rough terrain, with its unique butterfly outriggers.
PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.
KEY FEATURES
• For a variety of material from non pumpable concrete to sand and gravel
• Six hopper options to fit different job needs
• Places material at high volumes
• Reversing conveyor feature to switch direction of material flow
TECHNICAL DETAILS
Arms - 4
Conveyor Horizontal Reach - 32.34 m
Conveyor Horizontal Reach - 27.91 m
Conveyor Belt Width - 457 mm
Feed Conveyor Length - 11.60 m
Feed Conveyor Belt Width - 457 mm
End Hose - Length - 4.57 m
Discharge height from grade - 18.36 m
Discharge height from grade - 6.11 m
Rated capacity main and feed conveyors by minute - 4 m³/min
Rated capacity main and feed conveyors by minute - 2.90 m³/min
Observed capacity - 4 m³/min
Observed capacity - 4 m³/min
Horizontal Reach net - 30.65 m
Horizontal Reach net - 26.23 m
Outrigger spread - hydraulically rotate out and down (front-rear) - 7.05/8.17 m
Outrigger load: Front-Rear - 153 kN
