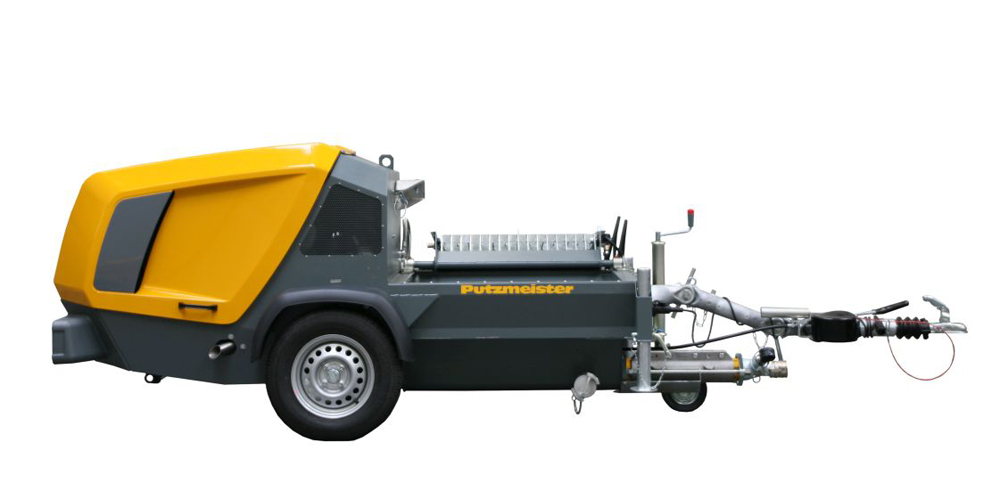

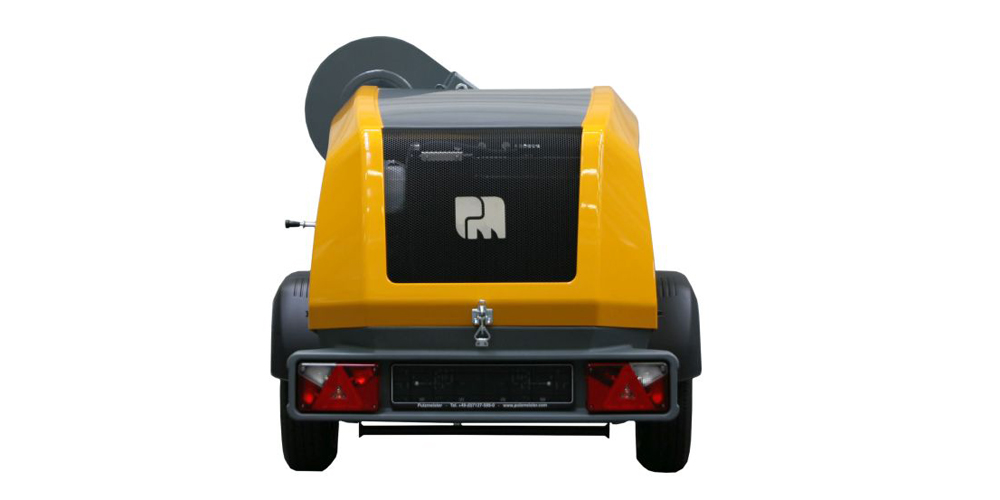

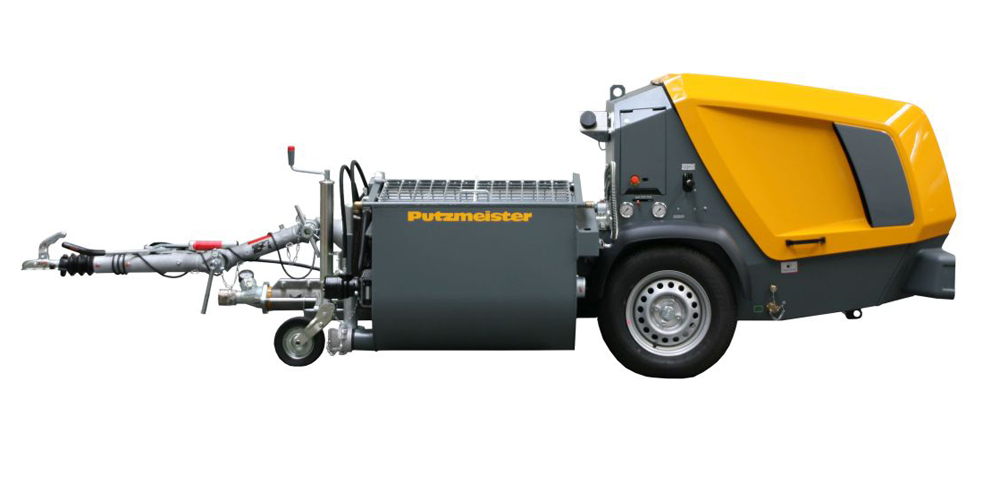

Putzmeister SP 25 DQR Mortar / Grout Pump
- Product Code: WEB-SP25DQRSV
-
Description:
The powerful worm pump SP 25 DQR with compulsory mixer is suitable for a variety of other special applications such as concrete renovation or filling and grouting work, in addition to classic interior and exterior plastering. The increased efficiency focuses on higher throughputs, as well as longer conveying distances and higher delivery pressures. Multicomponent materials and ready-mix dry mortar can be mixed on the construction site in the powerful compulsory mixer for any mixing time. The lifting function of the mixer allows a lower filling height and permits the simple transfer of the mixed batch to the conveyor hopper.
PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.
KEY FEATURES
• Robust design – tested in construction site use and on the test track
• Large lifting mixer with 240 l volume allows mixing of larger material quantities/containers
• Lower filling height facilitates filling and cleaning of mixer
• Central control with intuitive keypad and clearly arranged display
• Larger tank for maximum operational performance without refuelling
• Support legs for optimal stability on the construction site
• Robust plastic cover according to the highest quality standard
• Safe transfer of machine with crane – thanks to integrated crane lugs
TECHNICAL SPECIFICATIONS
Mixing Vessel - 240 l
Feed Hopper - 250 l
Output - 0.3 – 4.5 m³/hr
Delivery Pressure - 35 bar
Horizontal Reach gross - 70 m
Vertical Reach - 50 m
Compressor - 2-cylinder 400 l/min, 7 bar
Pump - Worm pump 2L6
Engine - 3-cylinder Kubota Diesel, (Stage V)
Engine Power - 28 kW
Weight - 1050 kg
Length x Width x Height - 4280 × 1410 × 1480 mm
Filling Height - 770 mm
Max. Aggregate Size - 6 (2L6), 8 (2L75) mm
Chassis - braked, approved for road use
DOWNLOADS
Putzmeister SP 25 DQR Brochure
