Putzmeister SP 25 DHF Mortar / Grout Pump
- Product Code: WEB-SP25DHFSV
-
Description:

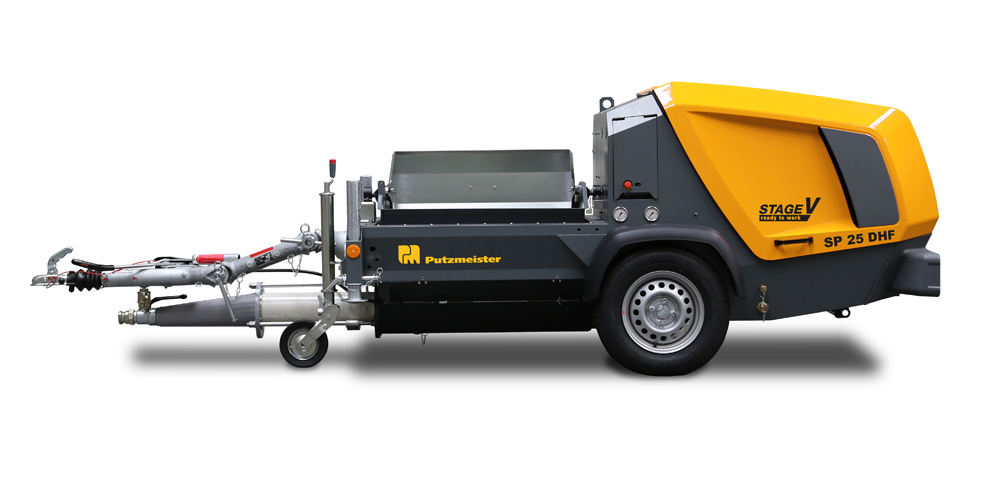

The powerful SP 25 DHF worm pump is suitable for conveniently and reliably placing large volumes of self-levelling floor screed. With it's strong three-cylinder diesel engine with 37 kW and “Stage V” emissions, the pump can be operated without issues now and in the future. The increased efficiency focuses on higher throughputs, longer delivery ranges and higher delivery pressures. The large filling area features a swinging spray guard and a powerful vibrating screen. The low filling height facilitates loading on the construction site as well as the final cleaning. The low pump weight also makes for easier handling on the construction site.
PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.
KEY FEATURES
• Robust design – tested in construction site use and on the test track
• Supports a variety of worm pumps through to the 2L8
• Reliable remote control makes possible a variety of functions

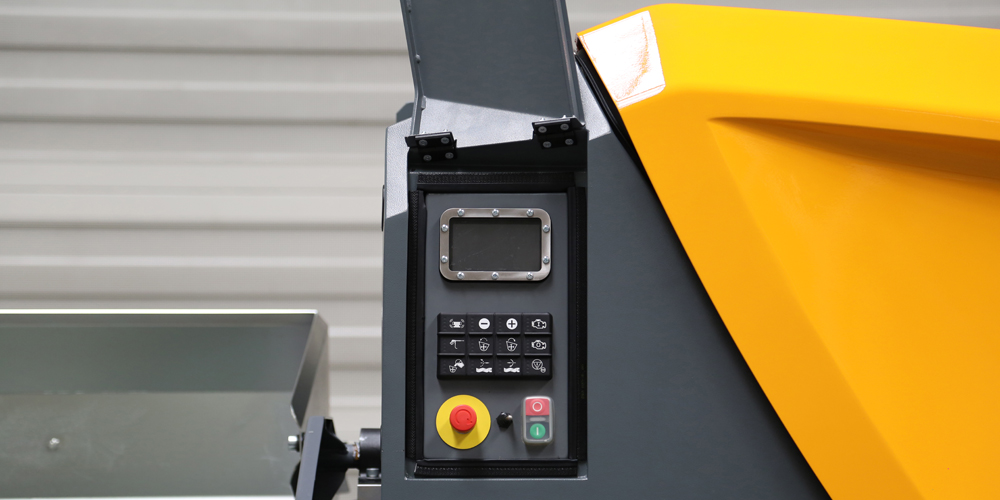

• Central control with intuitive keypad and clearly arranged display
• Larger tank for maximum operational performance without refuelling
• Support legs for optimal stability on the construction site
• Robust plastic cover according to the highest quality standard for maximum durability
• Safe transfer of machine with crane – thanks to integrated crane lugs
TECHNICAL SPECIFICATIONS
Feed Hopper - 250 l
Output - 20 m³/hr
Delivery Pressure - 35 bar
Horizontal Reach gross - 200 m
Vertical Reach - 60 m
Pump - Worm Pump 7515 Premium

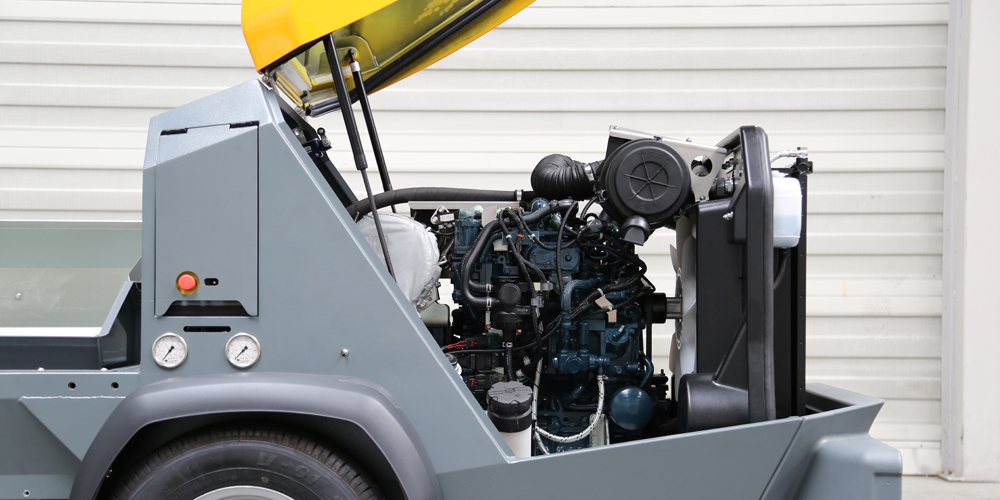

Engine - 3-Cylinder Kubota, Stage V
Engine Power - 37 kW
Engine Revolutions - 2700 rpm
Diesel Tank - 40 l
Weight - 1050 kg
Length x Width x Height - 4280 × 1410 × 1300 mm
Filling Height - 730 mm
Max. Aggregate Size - 8 mm
Chassis - braked, approved for road use
DOWNLOADS
Putzmeister SP 25 DHF Stage V Brochure
