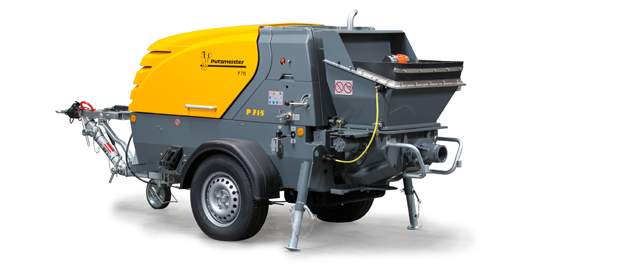

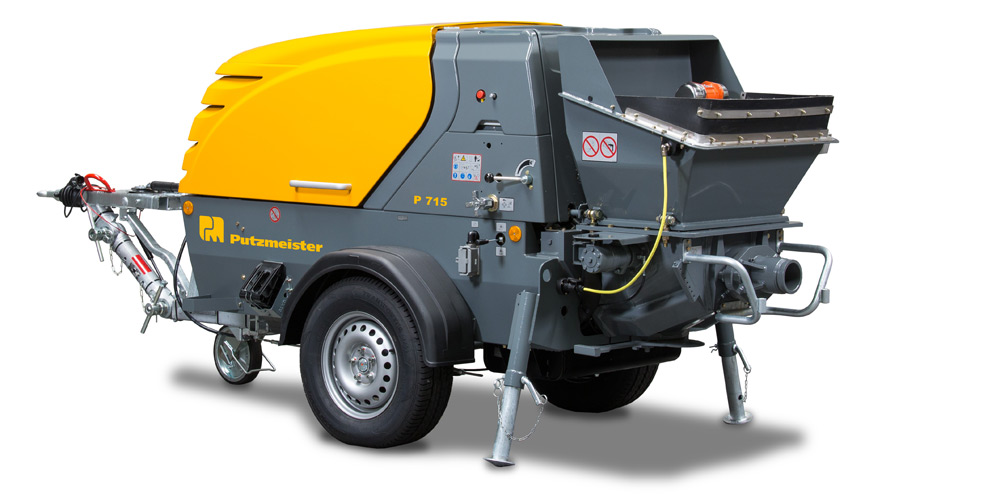

Putzmeister P 715 TD Concrete Trailer Pump
- Product Code: WEB-P175TD
-
Description:
The Putzmeister fine concrete pump trailer is small, light, and features a powerful dual-piston pump. It is used for pumping cement, self-levelling floor screed, fine concrete and anhydrite up to a grain size of 16 mm. The integrated S-valve with self-seal effect allows pump pressure of up to 68 bar and is sealed against sludge and water. The self-adjusting ring on the S-pipe automatically compensates for wear.
PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.
KEY FEATURES
• Maintance and service-friendly
• Operating panel ergonomical on one side
• Large hopper 280 l with rubber collar and protective grid
• Piston pump unit extremely robust
• With less than 1900 kg the lightest among the fine concrete pumps
• Chassis for road use
TECHNICAL DETAILS
Output - 4-17.4 m³/hr
Feed Hopper - 250 l
Delivery Pressure - 68 bar
Horizontal Reach gross - 300 m
Vertical Reach - 100 m
Pump - hydraulic 2 cylinder
Strokes (piston side) - 27
Delivery Cylinder Diameter - Stroke Length - 150/700 mm
Max. Aggregate Size - 16 mm
Engine - Diesel 3-cylinder
Engine Power - 34.5 kW
Length x Width x Height - 4600 x 1520 x 1750 mm
Weight - 1850 kg
