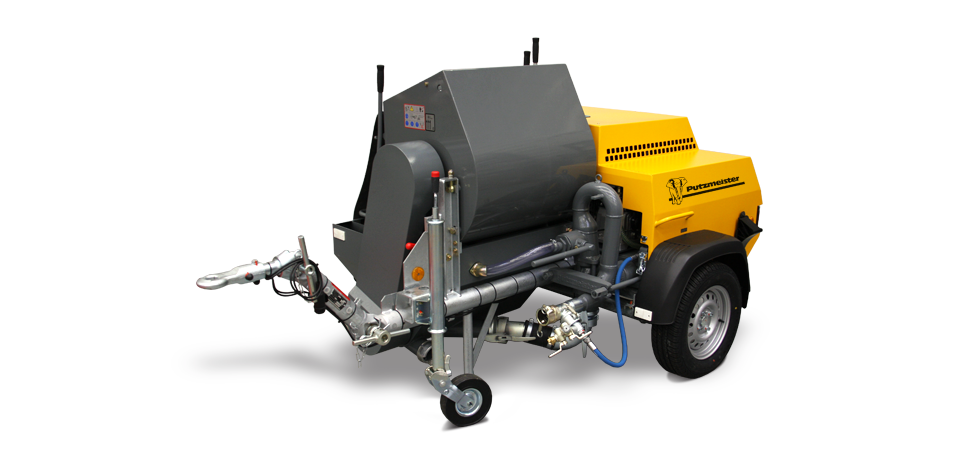

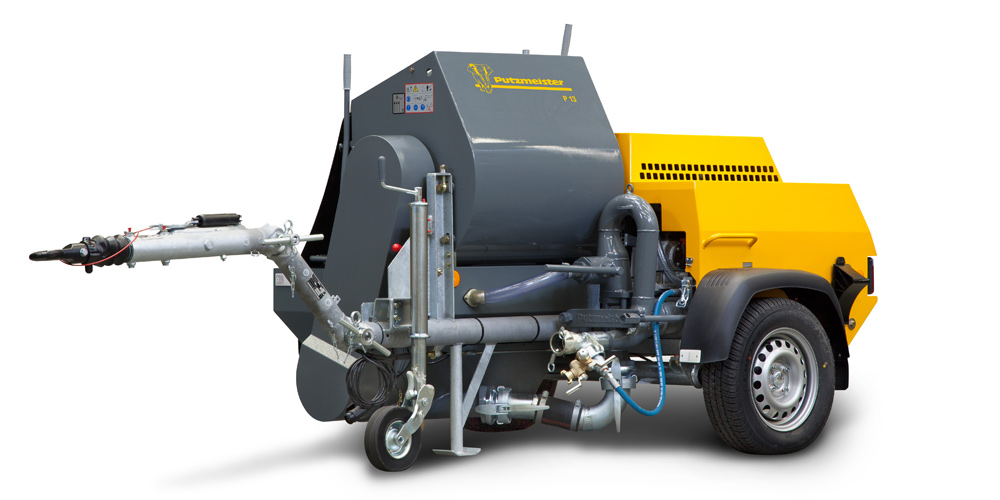

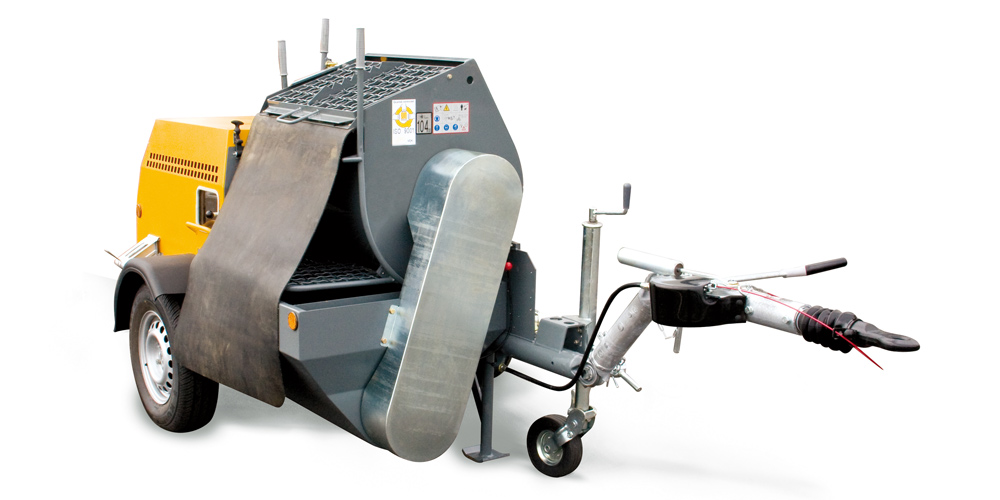

Putzmeister P13 DMR Mortar / Grout Pump
- Product Code: WEB-P13DMR
-
Description:
Mixing - Pumping - Spraying with one machine. The Putzmeister P 13 is robust and service-friendly for the most challenging site mixes in the world. This pump is suitable for job-site mixes or exterior and interior plasters in bags, Bentonite slurries, special mortars, insulating plasters, cement plaster, lime-cement plaster, lightweight masonry mortar and self-levelling floor screed.
PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.
KEY FEATURES
• Robust and low-maintenance for the most difficult site-made mixes all over the world
• Robust, powerful piston pump (KA 230) even processes sand
• The delivery capacity can be mechanically set over 3 levels
• 170 l compulsory mixer ensures optimum mix quality
• Also available with piston pump KA 139 instead of KA 230
• Robust components for reduced wear and tear
TECHNICAL DETAILS
Feed Hopper - 200
Output - 20-80 l/min
Output - 30-90 l/min
Horizontal Reach gross - 150 m
Vertical Reach - 80 m
Delivery Pressure - 40 bar
Compressor - 300 l/min
Pump - KA 230
Engine - Electric
Engine Power - 7.5 kW
Engine Revolutions - 2900
Strokes (piston side) - 130 mm
Delivery Cylinder Diameter - Stroke Length - 100 mm
Weight - 990 kg
Length x Width x Height - 3000 x 1640 x 1450 mm
Filling Height - 1300 mm
Max. Aggregate Size - 6 mm
Max. Aggregate Size - 8 mm
Chassis - unbraked
Pressure Connection - M 50
