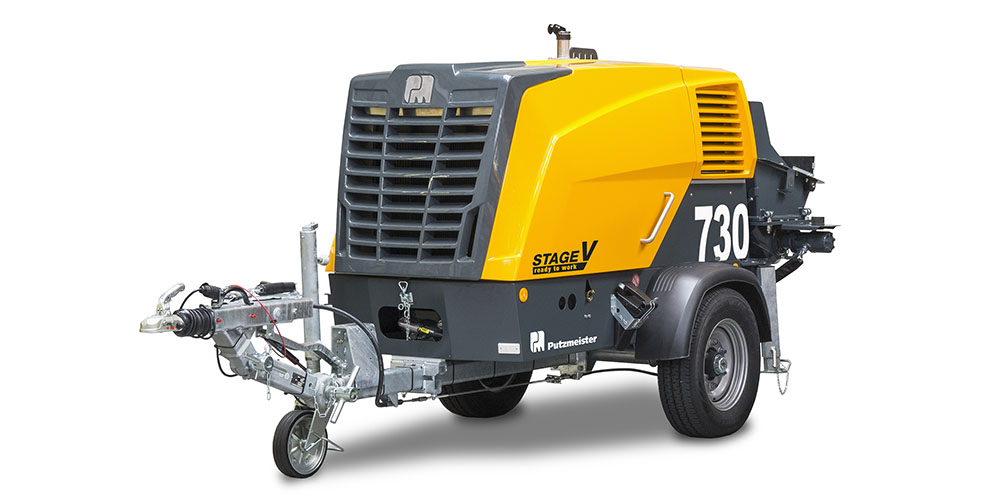

Putzmeister P 730

  • Product Code: WEB-P730
  • Description:

    The new P 730 piston pump is ideally suited for conveying fine concrete up to a grain size of 32 mm and for working with shotcrete. It is our most powerful machine of this kind – boasting even more power and a higher delivery rate – while being lightweight with a well thought-out and user-friendly design. In addition, it is easier to service and requires less maintenance than ever before.

KEY FEATURES

• More power and higher delivery rate

• Brand-new engine technology – clean and efficient. Meets all requirements of the applicable “Stage V” emissions standard

• New and ergonomic central control unit with intuitive keypad on the right side of the machine

• Optimised fuel consumption with Ergonic® Output Control (EOC)

• Larger hopper (360 l) with rubber collar and protective grille

• Comprehensive standard equipment

• Extremely robust piston pump unit

• Support feet to ensure stability

• Improved accessibility for maintenance points and reduced service requirements when using maintenance-free components

• Made in Germany

TECHNICAL DETAILS

Feed Hopper - 300 l / 360 l (with rubber collar)

Output - 3-30 m³/hr

Delivery Pressure - 55 bar

Horizontal Reach gross - 300 m

Vertical Reach - 100 m

Drive - 3-cylinder Deutz diesel engine with turbocharging kW

Engine Power - 55.4 kW

Pump - 2-cylinder pump, hydraulic

Strokes - 29 per minute

Delivery Cylinder Diameter / Stroke Length - 180/700 mm

Pressure Connection - 125 mm

Weight  - 2450 (TD) kg

Length x Width x Height - 4810 mm x 1592 mm x 1983 mm (TD)

Filling Height  - 1340 mm (TD)

Max. Aggregate Size - 32 mm

Chassis - Trailer (TD), Stationary (SD)

* All data provided is based on experience and depends on the material used. Specifications subject to change without prior notice, no responsibility is taken for the correctness of this information. Other data can be obtained on request.
