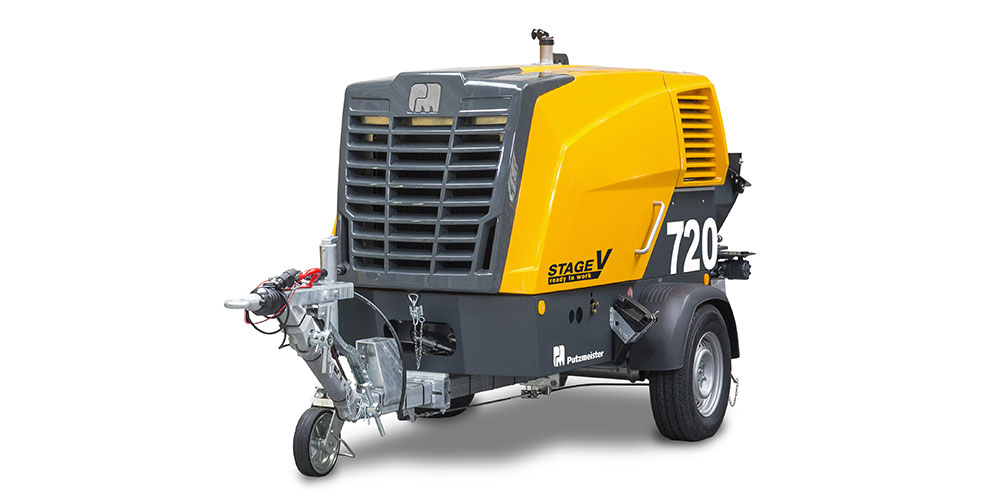

Putzmeister P 720

  • Product Code: WEB-P720
  • Description:

    The P 720 reliably conveys pumpable media with a grain size of up to 16 mm across large distances. The powerful piston pump is ideal for applications with shotcrete and self-levelling floor screed. With a delivery pressure of up to 80 bar and an output of 21 m³/h, it is a true all-rounder boasting small dimensions and low weight.

KEY FEATURES

• Brand-new engine technology – clean and efficient. Meets all requirements of the applicable “Stage V” emissions standard

• New and ergonomic central control unit with intuitive keypad on the right side of the machine

• Optimised fuel consumption with Ergonic® Output Control (EOC)

• Large hopper (280 l) with rubber collar and protective grille

• Comprehensive standard equipment

• Extremely robust piston pump unit

• The lightest fine-concrete pump of its class with less than 1900 kg

• Support feet to ensure stability

• Improved accessibility for maintenance points and reduced service requirements when using maintenance-free components

• Made in Germany

TECHNICAL DETAILS

Feed Hopper - 250 l / 280 l (with rubber collar)

Output - 3-21 m³/hr

Delivery Pressure - 80 bar

Horizontal Reach gross - 300 m

Vertical Reach - 100 m

Drive - 3-cylinder Deutz diesel engine with turbocharging kW

Engine Power - 44.5 kW

Pump - 2-cylinder pump, hydraulic

Strokes  - 29

Delivery Cylinder Diameter / Stroke Length - 150/700 mm

Pressure Connection - 4.5 "

Weight - 2050 (TD) kg

Length x Width x Height  - 4800 mm x 1491 mm x 1916 mm (TD)

Filling Height  - 1324 mm (TD)

Max. Aggregate Size - 16 mm

Chassis - Trailer (TD), Stationary (SD)

* All data provided is based on experience and depends on the material used. Specifications subject to change without prior notice, no responsibility is taken for the correctness of this information. Other data can be obtained on request.
