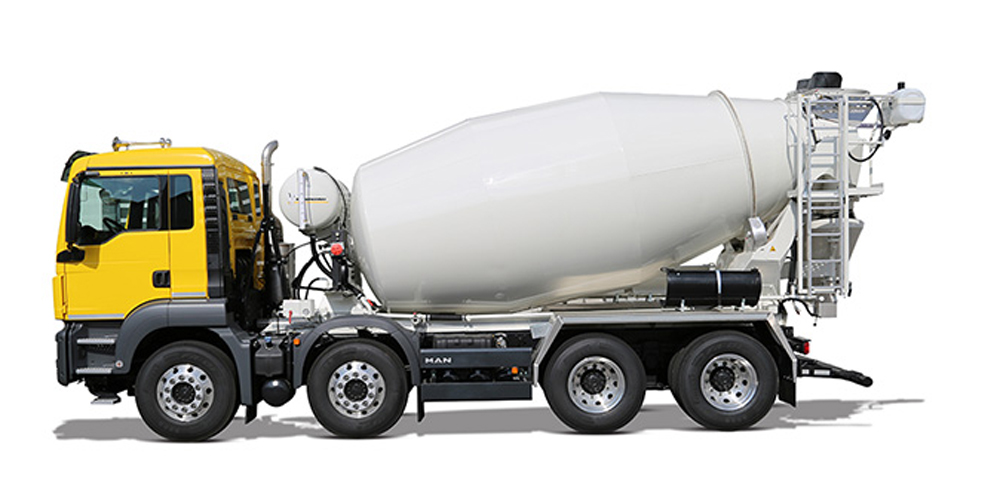

Putzmeister P 7 Truck Mixer
- Product Code: WEB-P7
-
Description:
The P 7 is an agile truck mixer for smaller amounts of concrete. Truck mixers are used every day, therefore the have to run reliably and be low-maintenance. Low wear-and-tear in particular plays an important role in a rough environment and in dealing with coarse materials, so that it can supply transport concrete without any loss in quality for years to come. Consequently, Putzmeister truck mixers are consistently built as standard with boron/magnesium steel. This heat-treated steel offers high wear protection for a good price. The truck mixer therefore withstands difficult conditions and ensures a long service life. The Putzmeister P 7 truck mixer is available in standard, light (L) and ultra light (UL) version.
KEY FEATURES
• Reduced consumption and operating costs
• 20 % weight saving over standard 4.5 mm thick steel constructions (UL Version)
• Enclosed rear up to the frame
• Long discharge chute – 1.45m
• Enclosed mixer frame made from S500 steel
• Large manhole - Ø 580 mm
• Optimised drum geometry
• 27 Mn Cr B5 boron/magnesium steel = approx. 30 % higher wear resistance
• Enlarged platform with ergonomic guard rail
• Underride protection with footstep
• Fully-automated Ergonic® Mixer Control (EMC)
• Integrated stowage compartment (optional)
TECHNICAL DETAILS
Nominal Fill - 7 m³
Water Line - 8.23 m³
Geometric Volume - 12.97 m³
Installation Angle - 12.70 degree
Height - 2645 mm
Standard Version Weight - 3520 kg
Light Version Weight - 3170 kg
Ultra Light Version Weight - 3050 kg
