Putzmeister MXR 35-4 Placing Boom
- Product Code: WEB-MXR35-4
-
Description:
Stationary Boom with 4 Arms and 540° Slewing Range. The Putzmeister MXR 35-4 stationary boom is economical and ideal for different purposes. It can be used for the construction of power stations, caverns, liquid gas tanks and bridges, and on various high-rise building construction sites. The MXR 35-4 is perfect for integration in climbing formwork, the autonomous through-climbing of floors, and free-standing installations.
PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.
KEY FEATURES
• No counter weight necessary
• Easy operation of the climbing device
• Placing boom operated by remote control (cable or radio)
• Working platform for safe operation

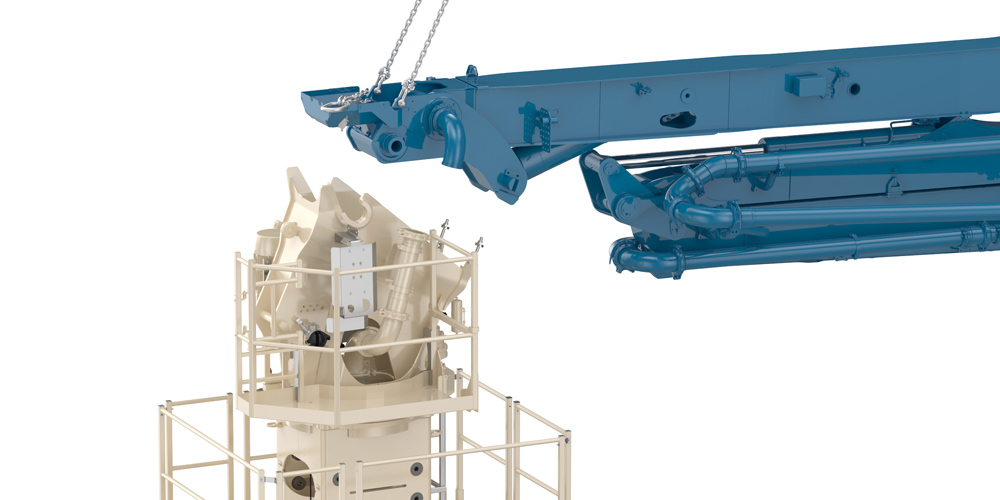

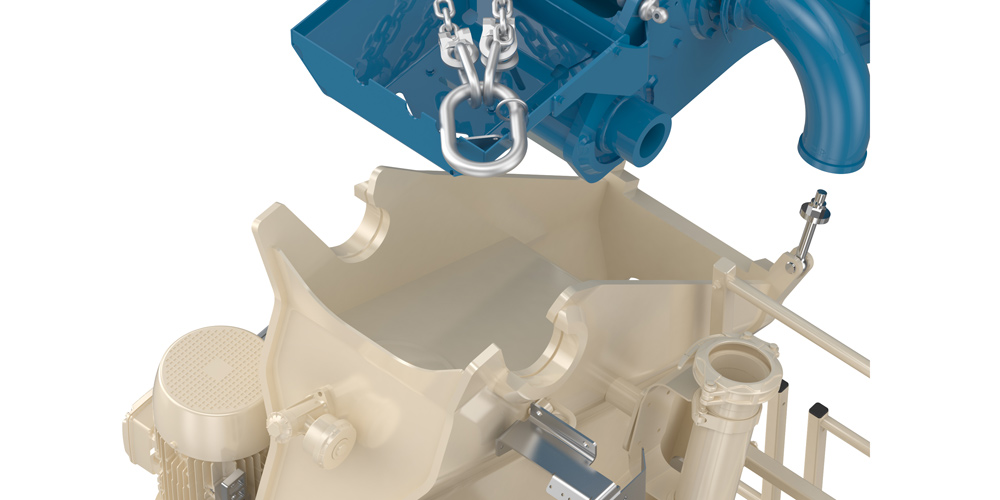

• Quick separating column, easy to assemble
TECHNICAL DETAILS
Folding Type - Z
Horizontal Reach gross - 34.7 m
Reach Depth - 28.0 m
Slewing Range - 540 degree
End Hose - Length - 3 m
Delivery Line - DN 125
Boom Weight - 5600 kg
Pedestal Weight - 2500 kg
DOWNLOADS
Putzmeister MX Stationary Booms Brochure
Data Sheet / Specifications / Overview
(Please Note: drawing may differ to New Zealand specifications)
