Putzmeister MX 35/39Z Placing Boom
- Product Code: WEB-MX35/39Z
-
Description:

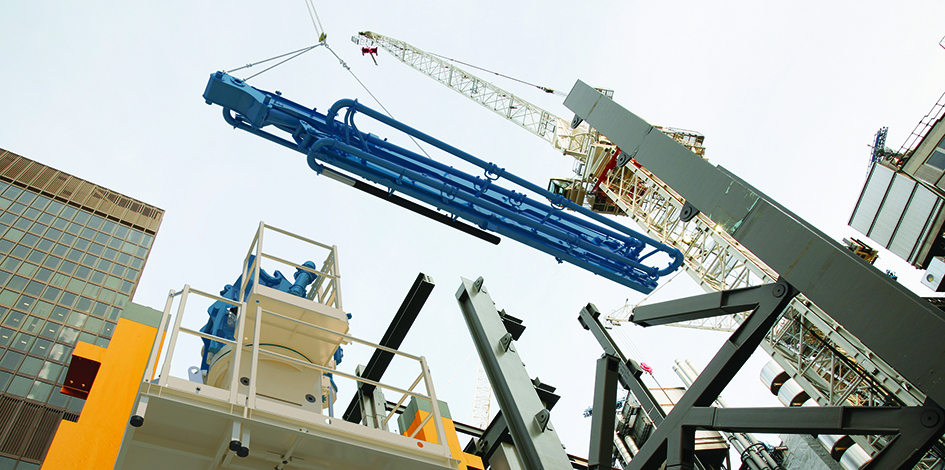

Developed innovation from the bottom to the boom tip! The MX 35/39Z Placing Boom from Putzmeister combines flexibility, operator convenience and low operating costs. This is down to the innovative hinge design with quick disconnect system, which ensures simple and fast assembly and disassembly. The MX 35/39Z boasts sophisticated features, including a lighted boom tip, local controls, and the intelligent Ergonic ® 2.0 radio remote control. The working platform allows safe access to all assembly, operating and service points. It also includes dedicated storage space for tools and crane gear.
PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.
KEY FEATURES
• Innovative hinge technology of the MX quick disconnection system for simple and timesaving assembly
• Boom easily detaches from its pedestal
• The MX 35/39Z works from a freestanding position of more than 60 feet (18 m) without counterweigh
TECHNICAL DETAILS
Arms - 4
Folding Type - Multi-Z
Horizontal Reach gross - 34.6 m
Vertical Reach - 34.3 m
Reach Depth - 28.0 m
Slewing Range - 365 degree
Delivery Line - DN 125
Boom Weight - 5700 kg
Pedestal Weight - 2500 kg
DOWNLOADS
Putzmeister MX 35/39Z Placing Boom Brochure
Putzmeister Placing Systems Brochure
