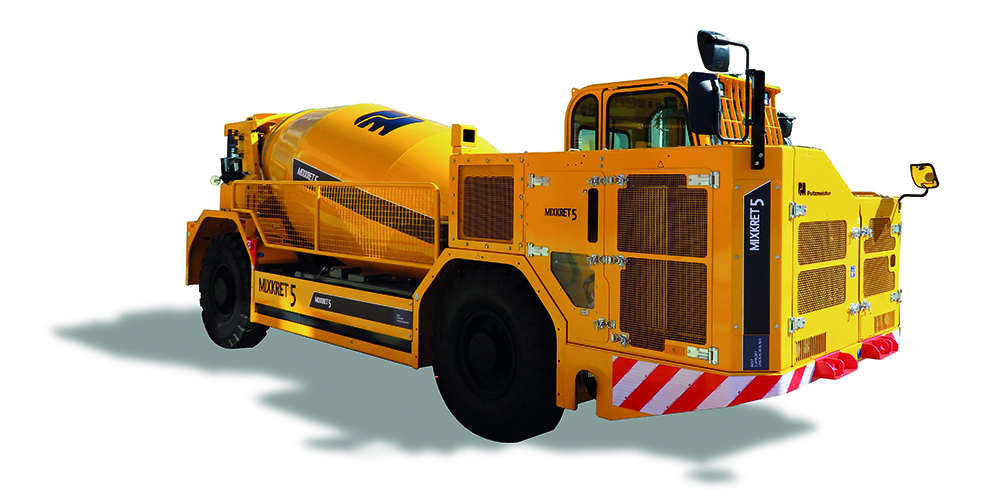

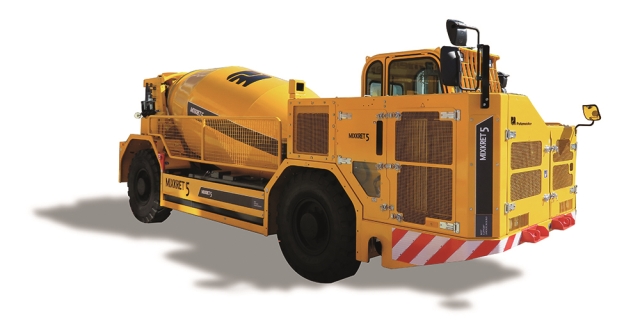

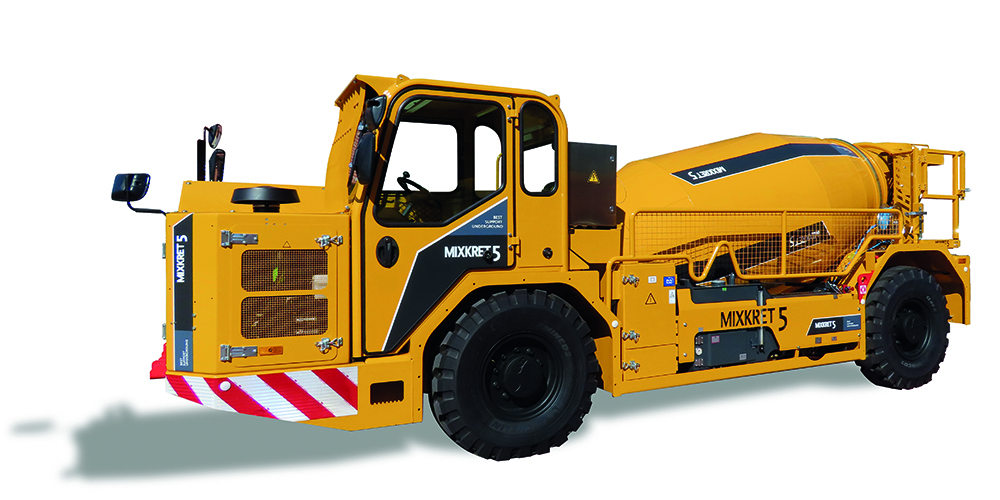

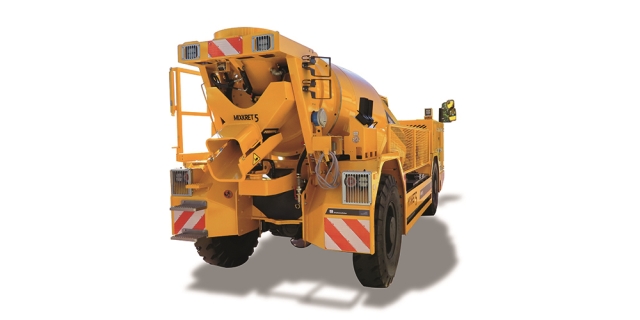

Putzmeister Mixkret 5 Low Profile Concrete Mixer
- Product Code: WEB-MIXKRET5
-
Description:
Compact, strong and versatile to enhance the total concrete spraying process. With a concrete capacity of 5 m³, the Putzmeister Mixkret 5 complements the Putzmeister low-profile concrete mixer series. The machine is equipped with a powerful 6-cylinder 168 kW diesel engine and Integrated Continuously Variable Drive (ICVD) to fully use the motor power at all times, without interruptions of the tractive force.
PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.
KEY FEATURES
• Safety first: automatic speed regulation system enables full-load traveling at the maximum safe speed
• Mixing drum with a capacity of up to 5 m³
• Integrated Continuously Variable Drive (ICDV) ensures the correct relationship between engine torque and speed
• Reliable and stable behaviour thanks to low position of gravity center of the mixing drum
• Available with liquid additive discharging system
TECHNICAL DETAILS
Length x Width x Height - 7515x 2200 x 2500 mm
Weight - 11500 kg
Ground Clearance - 285 mm
Wheelbase - 4000 mm
Max. Longitudinal Gradient while Driving - 30 %
Max. Transversal Gradient while Driving - 10 %
Inner Turning Radius - 2400 mm
Outer Turning Radius - 6000 mm
Engine - Diesel
Engine Power - 168 / 150 kW
Emission Stage - EU-Stage llI A / EU-Stage V
Max. Speed - 20 km/hr
Diesel Tank - 265 l
Max. Concrete Capacity - 5 m³
Adjustable turning speed in both directions - 0-18 rpm
Concrete Discharge Height - 1160 - 1369 mm
