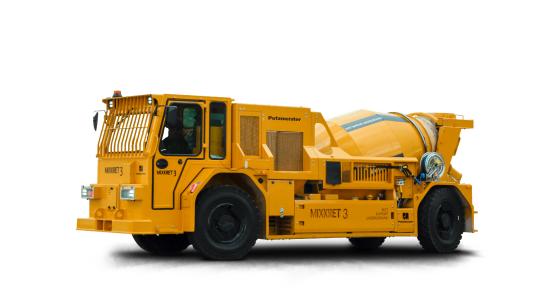

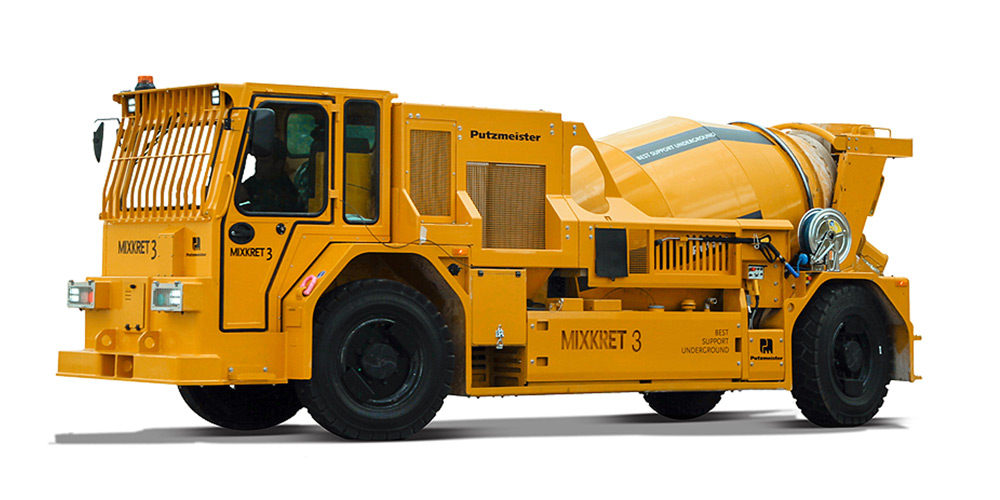

Putzmeister Mixkret 3 Low Profile Concrete Mixer

  • Product Code: WEB-MIXKRET3
  • Description:

    Low profile mixer for mining with a compact design. The concrete mixer Mixkret 3 has been designed and developed to complete and improve the total concrete spraying process. The concrete mixing drum has a capacity of 3 m³ and is equipped with an additive tank. Mixkret 3 has a powerful motorization (a diesel engine with 4 cylinders and 106 kW), which gives it a great performance for climbing and transfer, as well as the ability to work at height. The engine has EU emission stage IIIA / Tier 3.

    PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.



KEY FEATURES

• Small dimensions and turning radius suitable for narrow vein mining, complementing and improving the complete shotcrete process

• Mixed up to 3 m³ of concrete despite its small size and reduced height

• Powerful motorization for a high capacity of climbing and transfer, as well as the ability to work at height

• Compact and robust design ideal for the harsh conditions of underground mining

• Shares main components with the robotised Putzmeister Wetkret 4 shotcrete equipment, facilitating and improving spare parts management

• Continuously variable hydrostatic transmission system (ICVD) without gear change, improves climbing capacity, transfer speed, starting acceleration and fuel consumption

• Optional Equipment: closed driving cabin, tramming direction lights, wheels for mining, moisture protection kit for the electrical panel, flowmeter for water pump, etc.



TECHNICAL DETAILS

Length x Width x Height - 6531 x 1970 x 2354 mm

Weight - 9950 kg

Ground Clearance - 245 mm

Wheelbase - 4000 mm

Max. Longitudinal Gradient while Driving - 30 %

Max. Transversal Gradient while Driving - 10 %

Inner Turning Radius - 2541 mm

Outer Turning Radius - 5473 mm

Engine - Diesel

Engine Power - 106 kW

Emission Stage - EU-Stage III A / EPA Tier 3

Max. Speed - 20 km/hr

Diesel Tank - 160 l

Max. Concrete Capacity - 3 m³

Adjustable turning speed in both directions - 0-21 rpm

Concrete Discharge Height - 1120 - 1380 mm
