Putzmeister M 760 Stage V Mixokret
- Product Code: WEB-M760V
-
Description:

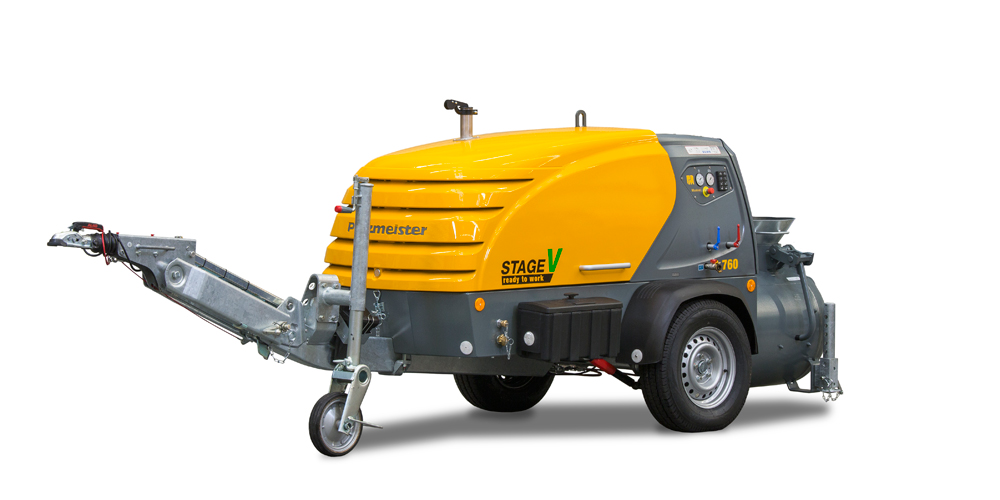

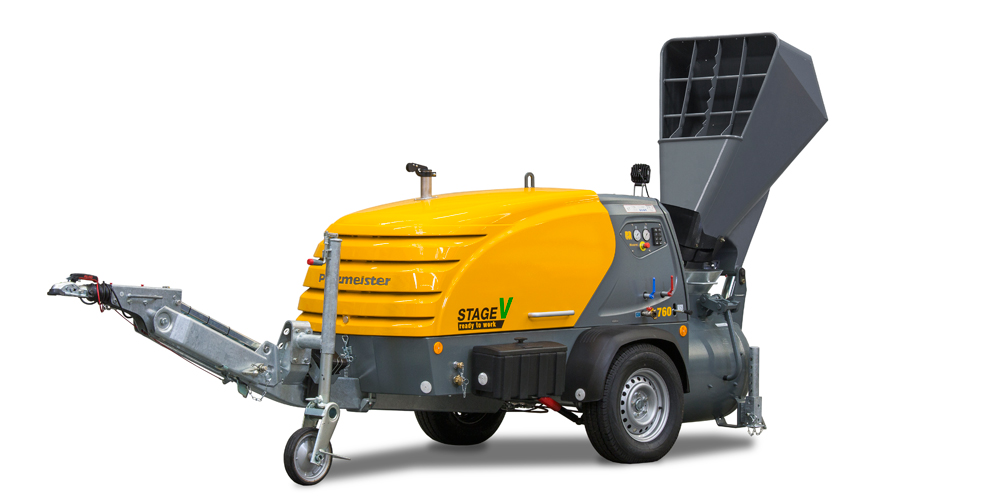

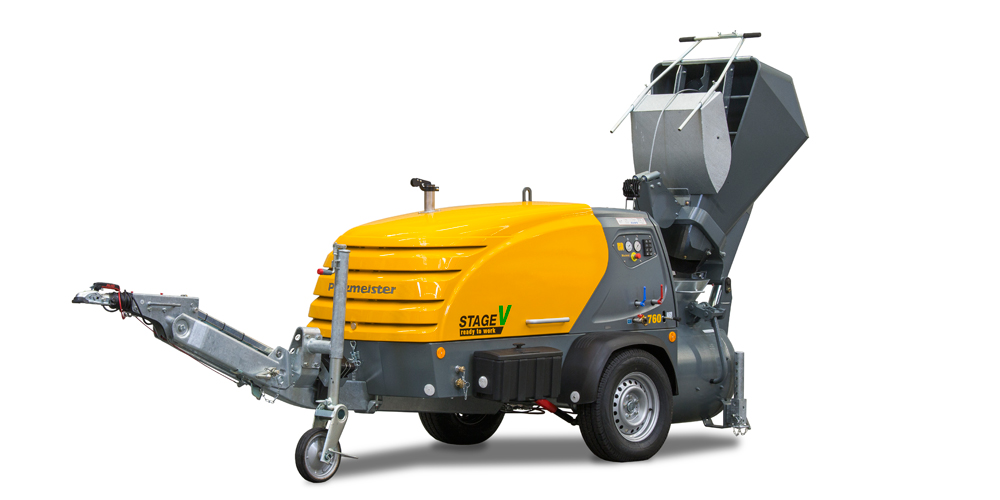

The environment friendly and powerful Mixokret M 760 Stage V Green Efficiency floor screed pump has been developed for big tasks. More power for lower fuel consumption, emissions and noise. It can be used to pump cement screed, calcium sulphate screed (anhydrite), magnesia screed and sand and aggregate. The Mixokret M 760 Stage V Green Efficiency is available in 3 versions: 1. M 760 DH Stage V Diesel (Basic version). 2. M 760 DHB Stage V (Diesel and feeder). 3. M 760 DHBS Stage V (Diesel, feeder and scraper).
PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.
KEY FEATURES
• Maximum power – meets all requirements of the current “Stage V” emission category
• Higher output and more efficient through machine performance management in series
• Hydraulic mixing unit with overload protection and reverse
• New robust keypad improves usability
• Auto-Power-Off – prevents the battery from draining overnight
• Large diesel tank with 70 litres volume
• User-friendly operation of feeder lever and air taps
• Optimised maintenance and service features
• Robust design ensures value retention and high resale values
TECHNICAL DETAILS
Mixing Vessel - 200 l
Horizontal Reach gross - 190 m
Vertical Reach - 135 m
Delivery Pressure - 8 bar
Compressor - 4.8 m³/min
Engine - Diesel, 3-cylinder Deutz with turbocharging
Engine Power - 44.5 kW
Emission Stage - Stage V
Diesel Tank - 70 l
Max. Aggregate Size - 16 mm
Chassis - braked
Refer to brochure for weight & sizes
DOWNLOADS
Putzmeister M 760 Stage V Brochure
