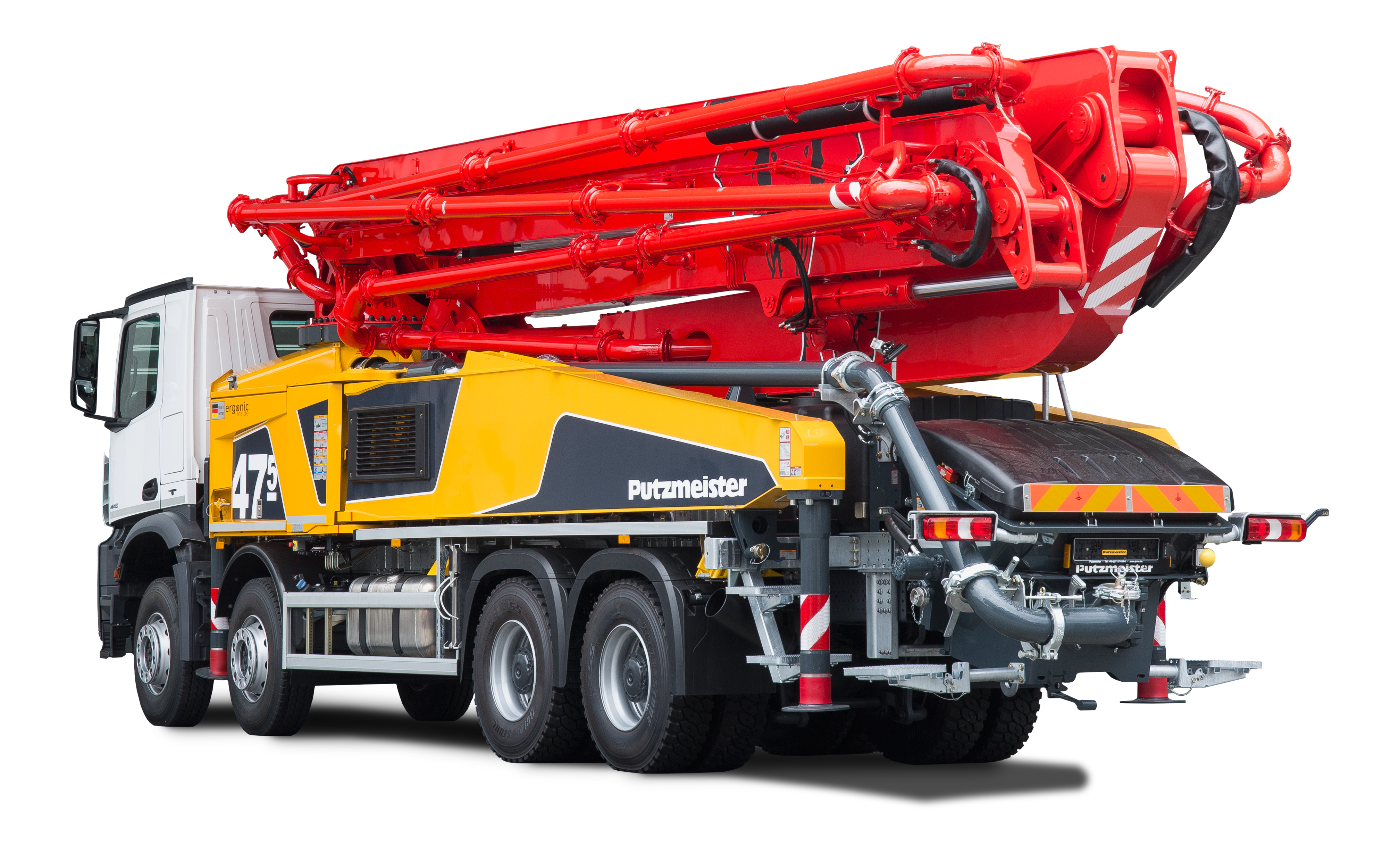

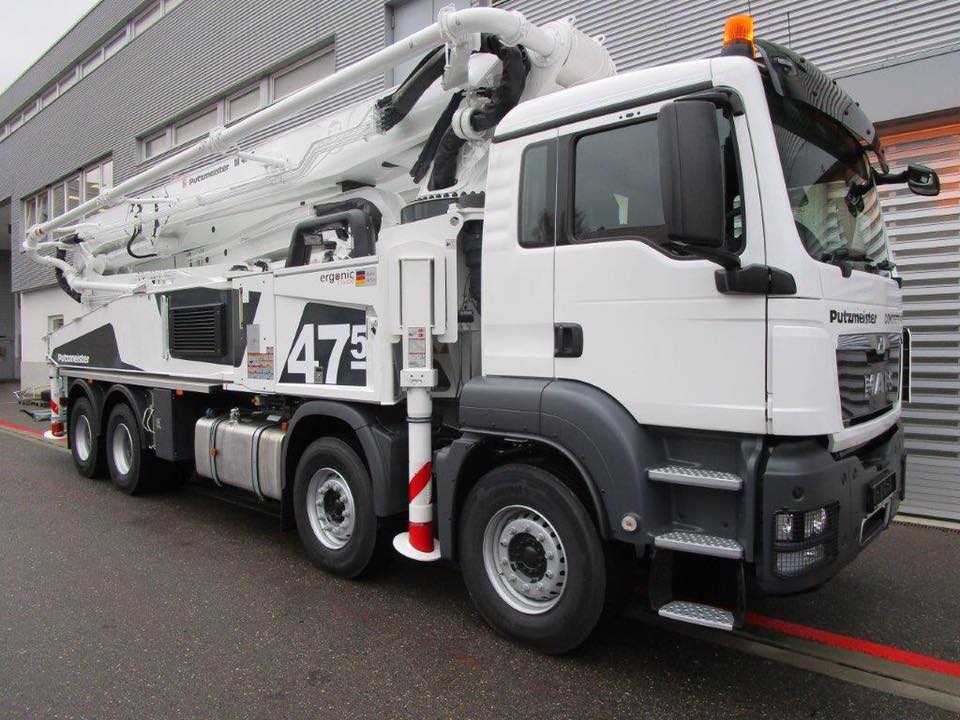

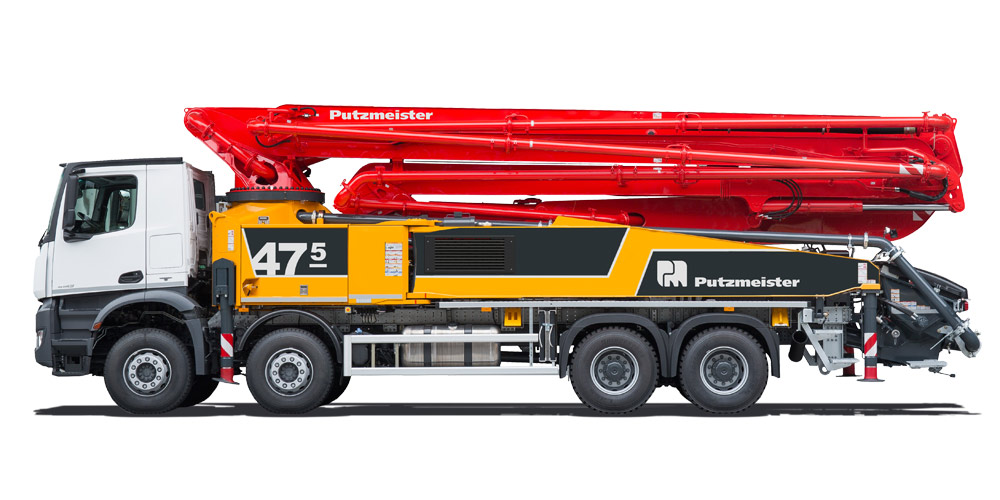

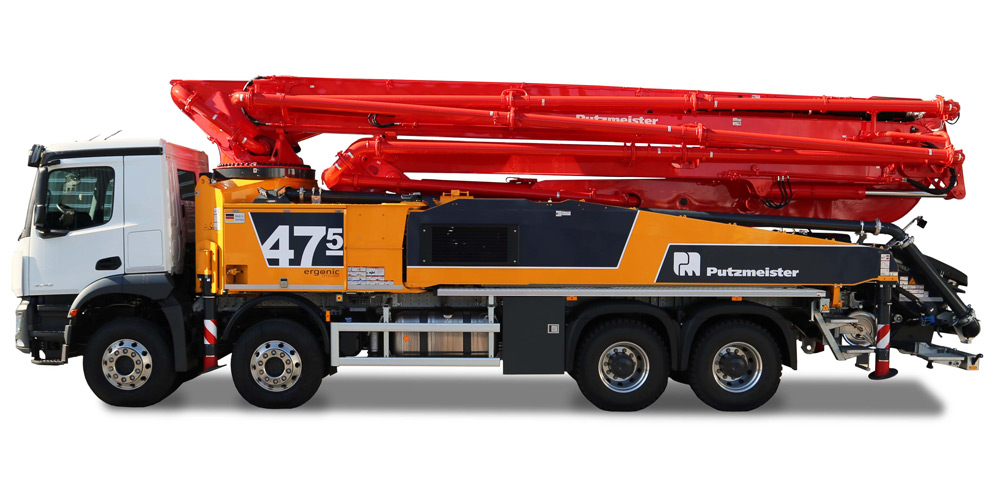

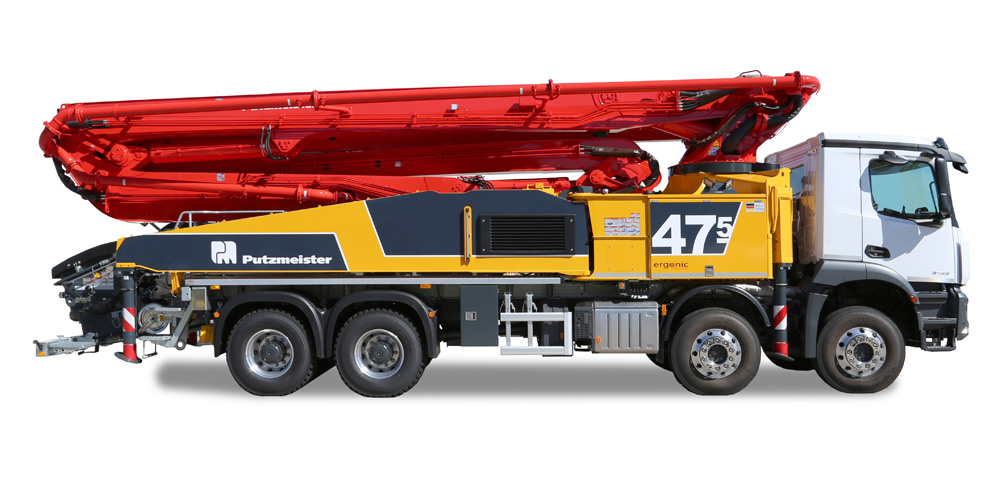

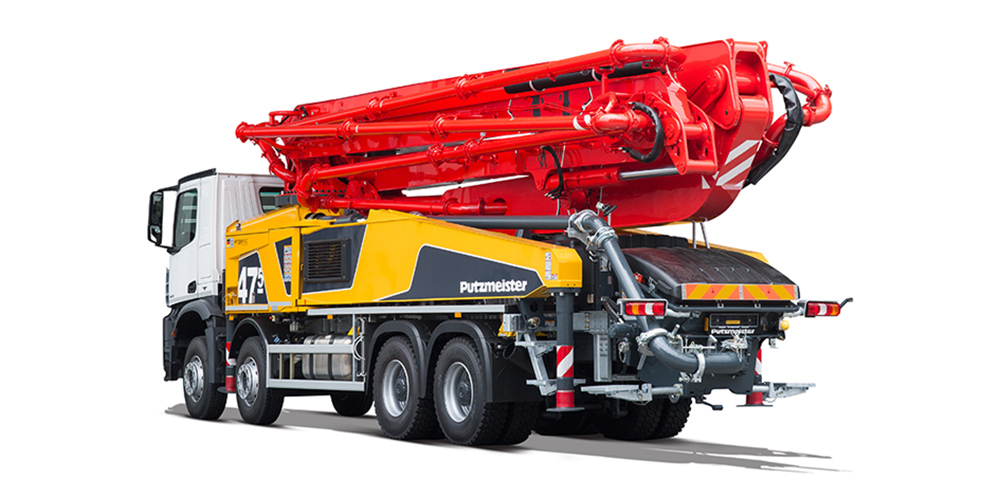

Putzmeister M 47-5 Truck Mounted Concrete Pump
- Product Code: WEB-M47-5
-
Description:

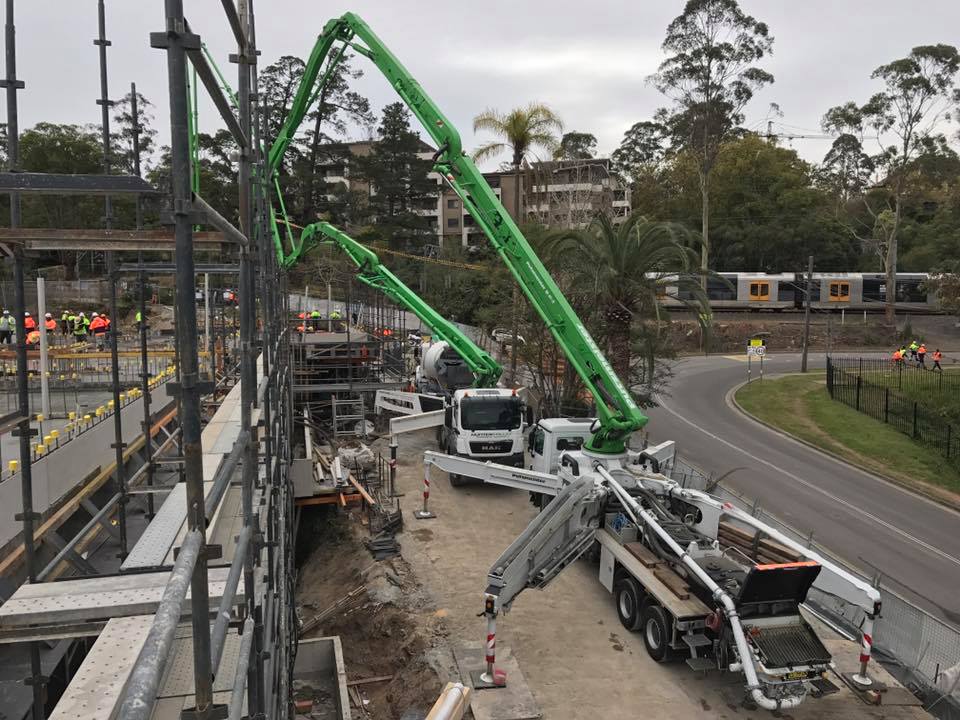

The BSF47-5 truck-mounted concrete pump is one of the lightest machines in its class. It is ideal for application at medium to large sized sites as well as job sites that offer challenging setup situations. The new fully flexible outrigger together with the intuitive Ergonic 3.0 control gives you all the freedom you need when space on the construction site is tight.
PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.
KEY FEATURES

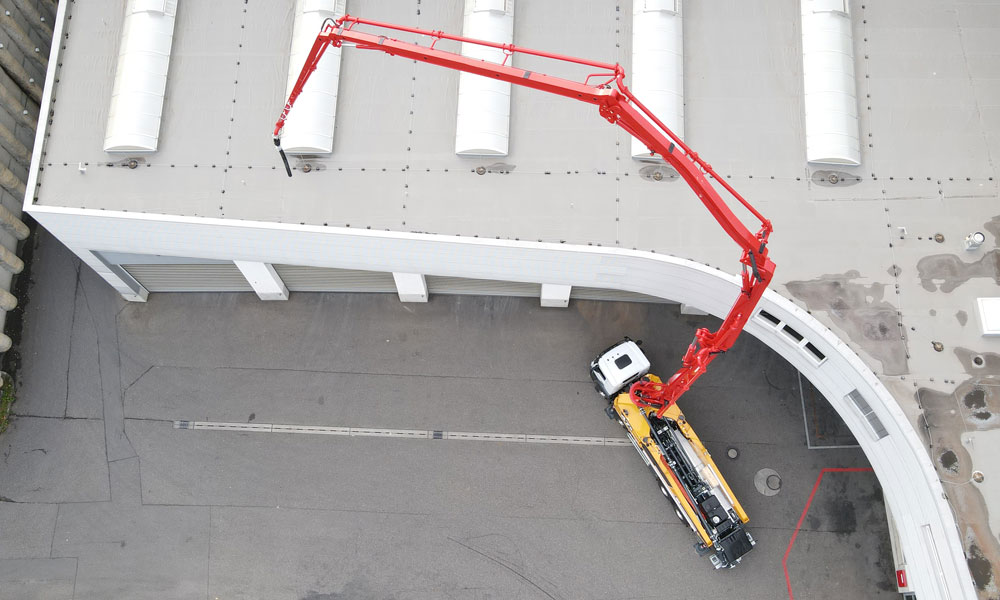

• Smooth 5-section-boom with Roll Z-Folding
• TRDI-Support for compact support area, fast setting up, relieved framework and difficult setup situations (iSC and OSS, One Side Support optional)
• Efficient work with Ergonic 3.0 operating system
• Reduced service cost
• Boom tip load 160kg
TECHNICAL DETAILS
Arms - 5
Folding Type - RZ
Vertical Reach - 46.1 m
Horizontal Reach gross - 41.1 m
Unfolding Height - 11.1 m
End Hose - Length - 3 m
Delivery Line - DN 125
Delivery Cylinder Diameter - Stroke Length - 230/2100 mm
Output (rod side) - 160 m³/hr
Output (piston side) - 108 m³/hr
Delivery Pressure (rod side) - 85 bar
Strokes (rod side) - 31
DOWNLOADS
Data Sheet / Specifications / Overview
(Please Note: drawing may differ to New Zealand specifications)
