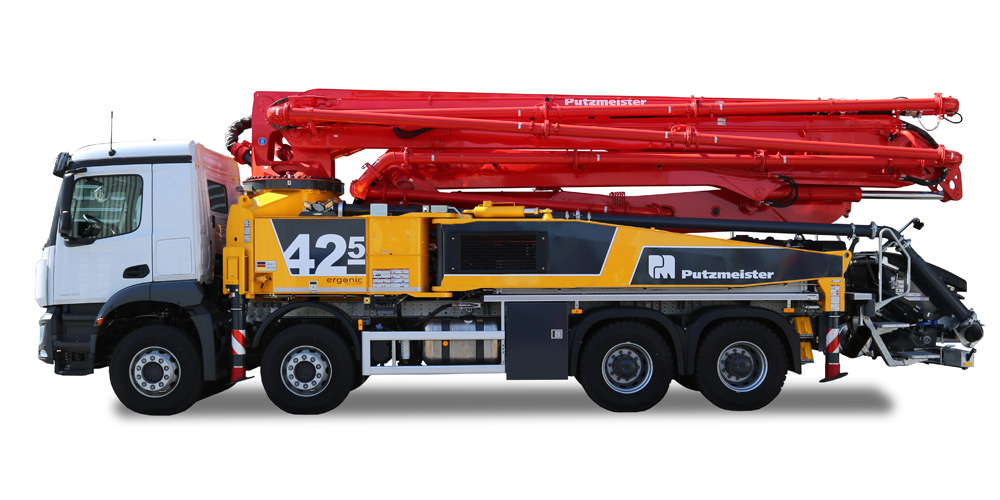

Putzmeister M 42-5 Truck Mounted Concrete Pump
- Product Code: WEB-M42-5
-
Description:
The next generation of the Putzmeister M42-5 truck-mounted concrete pump has improved maneuverability and weight indices for 4 axle chassis. The M42-5 is equipped with the OSS support system, which allows you to work in a limited workspace. The concrete pump length is less than 12 meters, and it weighs less than 32 tons (depending on vehicle and equipment).
PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.
KEY FEATURES
• Smooth 5-arm placing boom, thanks to intelligent laying of the delivery line and the balanced development of the steel structure
• Efficient work through consistently clever ergonomic design
• Even better safety through closer consideration for current standards and guidelines
• Service-friendly as a result of its optimised accessibility and consistent bolted concept
• Lower service costs thanks to maintenance-free components, fewer special components (only 3 standard delivery line bends) and lower volumes of functional fluids (oil volume reduced by 30 %)
TECHNICAL DETAILS
Vertical Reach - 41.6 m
Horizontal Reach gross - 37.3 m
Unfolding Height - 8.6 m
Slewing Range - 365 °
End Hose - Length- 4 m
Delivery Line - DN 125
Delivery Cylinder Diameter - Stroke Length - 230/2100 mm
Output (rod side) - 160 m³/hr
Output (piston side) - 108 m³/hr
Delivery Pressure (rod side) - 85 bar
Strokes (rod side) - 31
DOWNLOADS
Data Sheet / Specifications / Overview
(Please Note: drawing may differ to New Zealand specifications)
