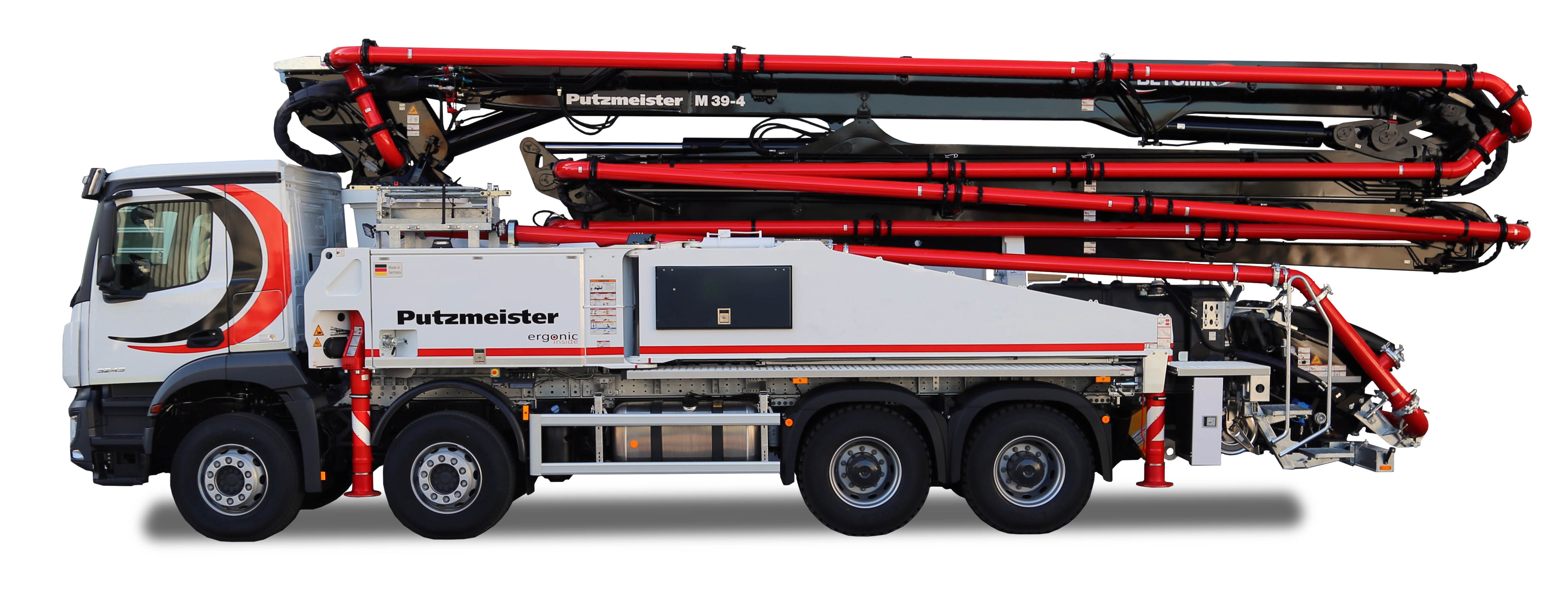

Putzmeister M 39-4 Truck Mounted Detach Concrete Pump
- Product Code: WEB-M39-4
-
Description:
Putzmeister’s BSF39-4 Truck-Mounted Concrete Boom Pump comes equipped with a newly designed four-section Z boom that can either be permanent or detachable. It’s a jack-of-all-trades that can achieve typical and high-rise pumping applications as well as frost law and special weight considerations. We’ve listened to our user feedback and put it into action. Rather than purchasing three separate pieces of equipment, customers will benefit from the value of a single, customizable machine.
PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.
KEY FEATURES
• Easy replacement of the radio remote control thanks to radiomatic(R) iLOG Technology Lithium ion battery for a working time of up to 17 hours
• Putzmeister concrete pump technology is designed to withstand extreme conditions as it performs in high- pressure and long-distance pumping applications
TECHNICAL DETAILS
Arms - 4
Folding Type - Z
Vertical Reach - 38.30 m
Horizontal Reach gross - 33.60 m
Unfolding Height - 9 m
Slewing Range - 365 °
End Hose - Length - 3 m
Delivery Line - DN 125
Concrete Pump .16 H
Delivery Cylinder Diameter - Stroke Length - 230/2100 mm
Output (rod side) - 160 m³/hr
Output (piston side) - 108 m³/hr
Delivery Pressure (rod side) - 85 bar
Strokes (rod side) - 31
DOWNLOADS
Data Sheet / Specifications / Overview
Data Sheet / Specifications / Overview - Multi
(Please Note: drawing may differ to New Zealand specifications)
