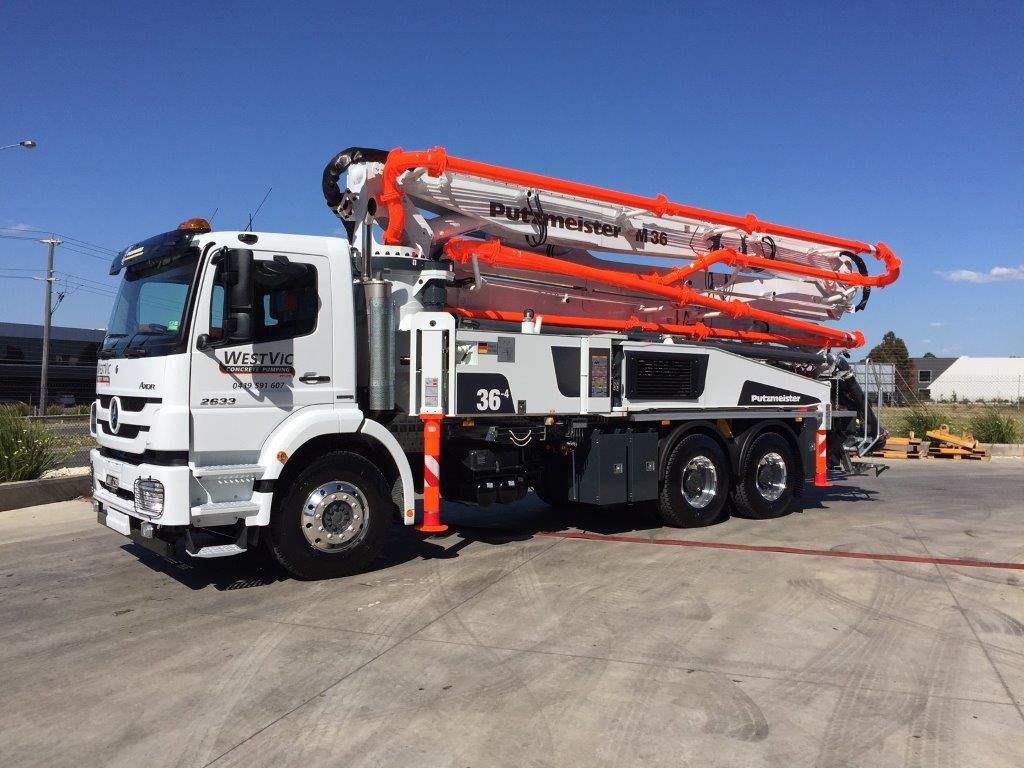

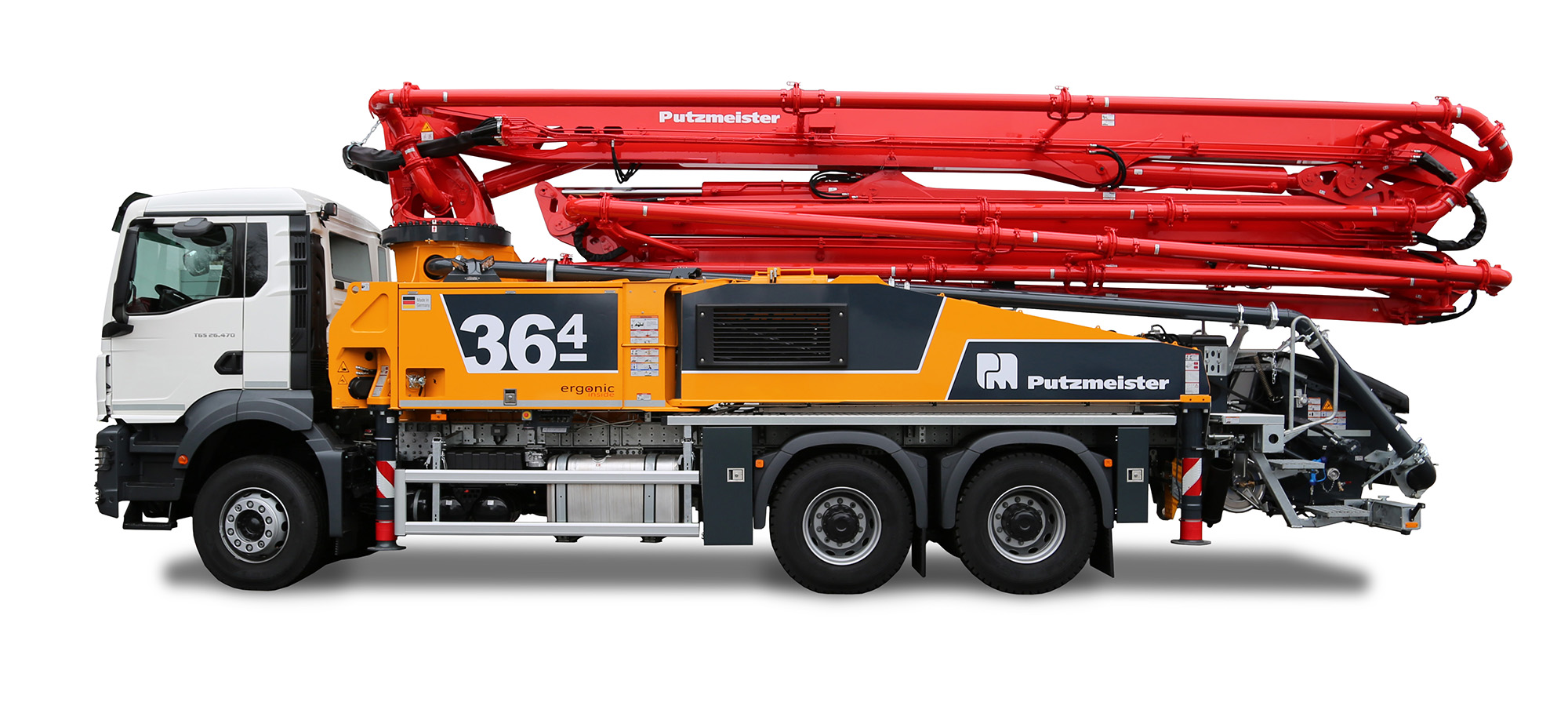

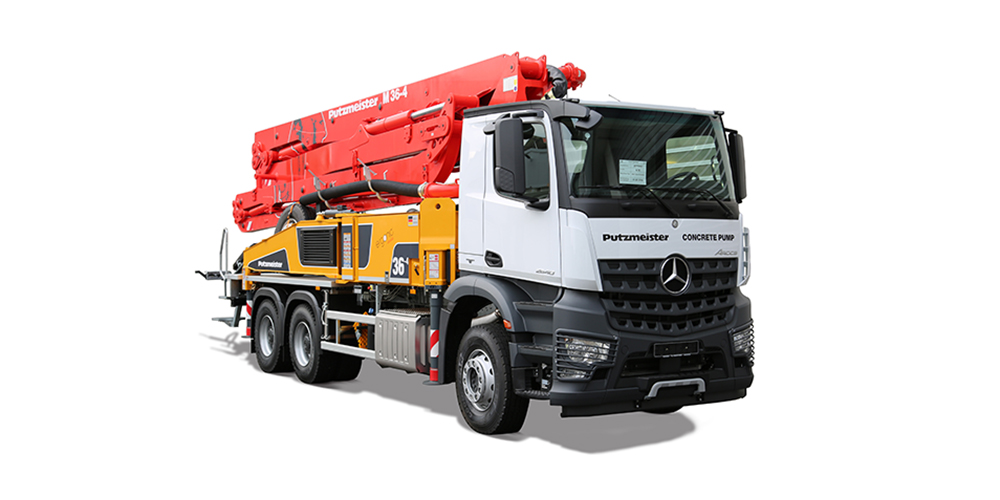

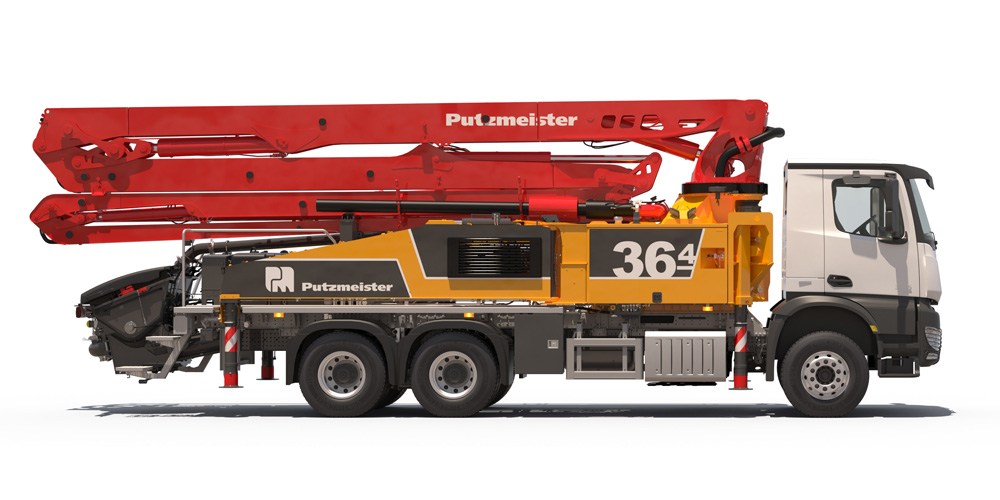

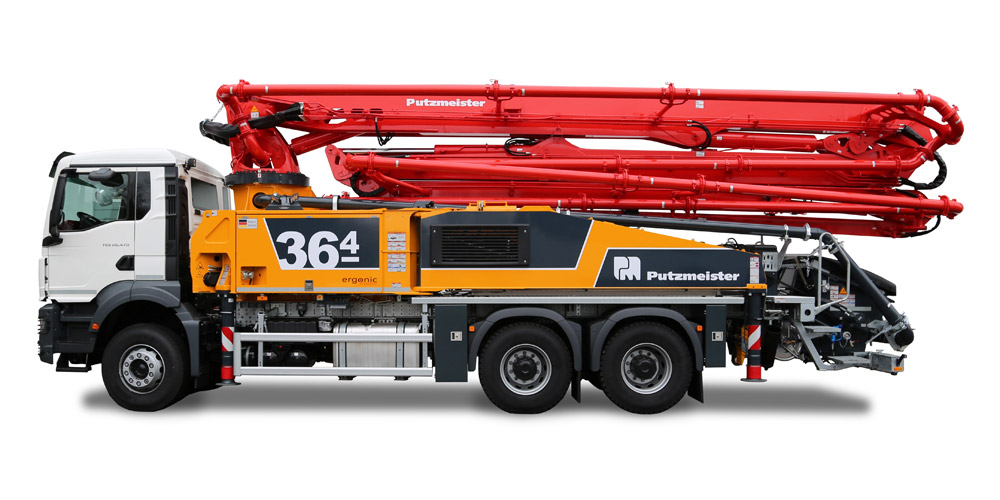

Putzmeister M 36-4 Truck Mounted Concrete Pump
- Product Code: WEB-M36-4
-
Description:
The most efficient all-rounder Truck-Mounted Concrete Pump in its class. The BSF36-4 reaches around 36 m, demonstrating enormous flexibility. The Z-folding makes it very adaptable, not least because of the optimal slip properties. Whether it is in the production hall, under bridges and underpasses or for the construction of multi-storey buildings, the BSF36-4 is very suitable for versatile work and with ease because we have further optimised the entire machine with respect to its weight. This allows more scope for loading accessories and operating materials, because the BSF36-4 offers high reserves with its surprisingly low weight. You therefore easily reach the next place of use quickly, and economically.
PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.
KEY FEATURES
• Smoother, more flexible 4-arm placing boom with Z fold system, lower unfolding height and optimum slip characteristics
• Versatile use on job sites, whether operating in low buildings, concreting ceilings, working on base plates, etc.
• Work efficiently thanks to logical, sophisticated ergonomics and intuitive, simple operation of the Ergonic® 2.0 control system
• All information on the radio remote control display. Complete control and all the information at the workplace at all times
• High load thanks to weight reserves
• Low support widths thanks to flexible support and space-saving structures (optional)
• Robust and stable due to reinforced base structure, compact boom pedestal and intelligent boom line installation
• Maintenance- and service-friendly as a result of its optimum accessibility and consistent screw concept
• Lower service costs thanks to maintenance-free components, fewer different types of components (e.g. only three standard elbow types) and smaller quantities of functional fluids
TECHNICAL DETAILS
Arms - 4
Folding Type - Z
Vertical Reach - 35.6 m
Horizontal Reach gross - 31.4 m
Unfolding Height - 8.5 m
End Hose - Length - 4 m
Delivery Line - DN 125
Pump BSF .16 H
Delivery Cylinder Diameter - Stroke Length - 230/2100 mm
Output (rod side) - 160 m³/hr
Output (piston side) - 108 m³/hr
Delivery Pressure (rod side) - 85 bar
Strokes (rod side) - 31
DOWNLOADS
Data Sheet / Specifications / Overview
(Please Note: drawing may differ to New Zealand specifications)
