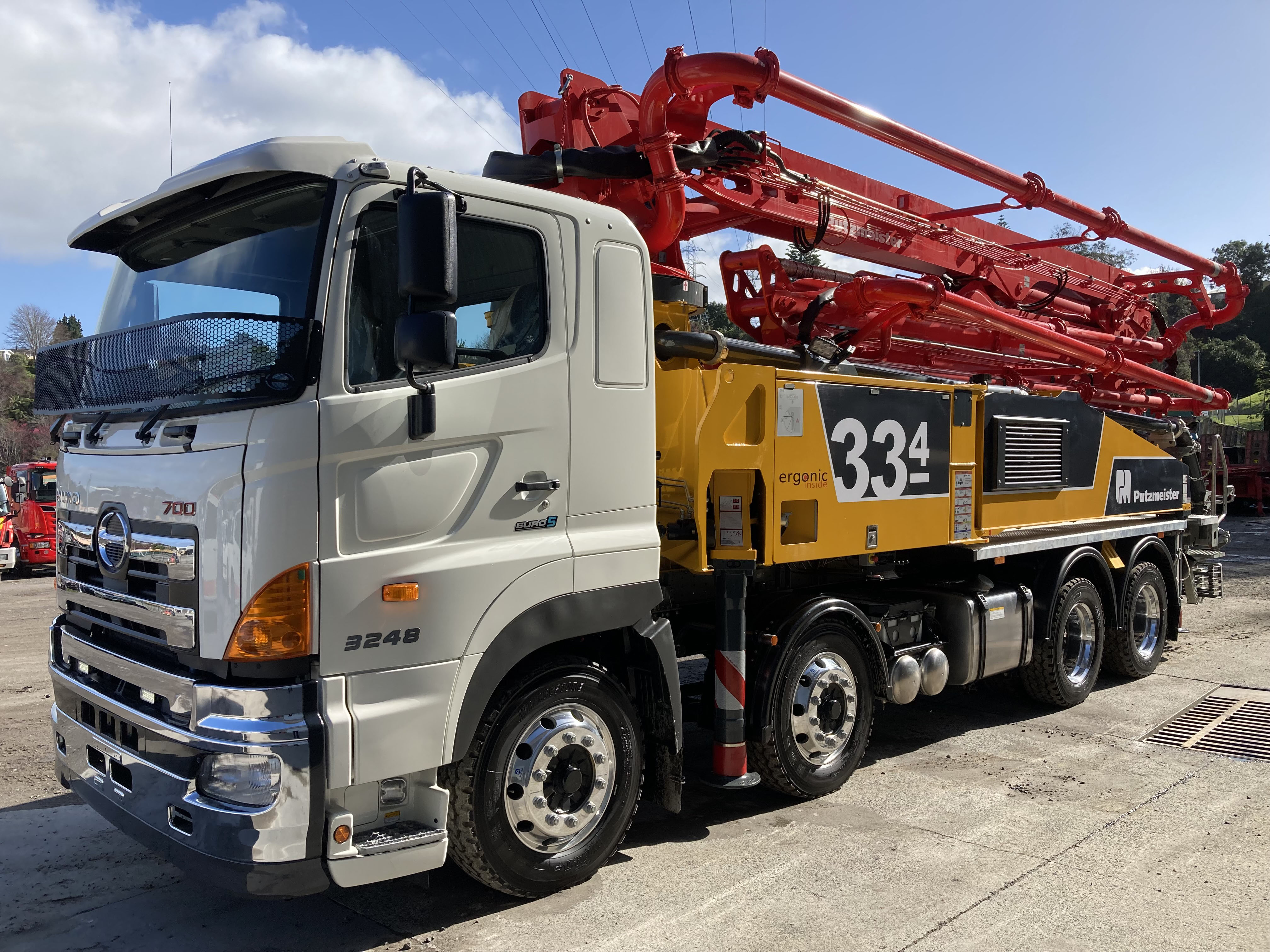

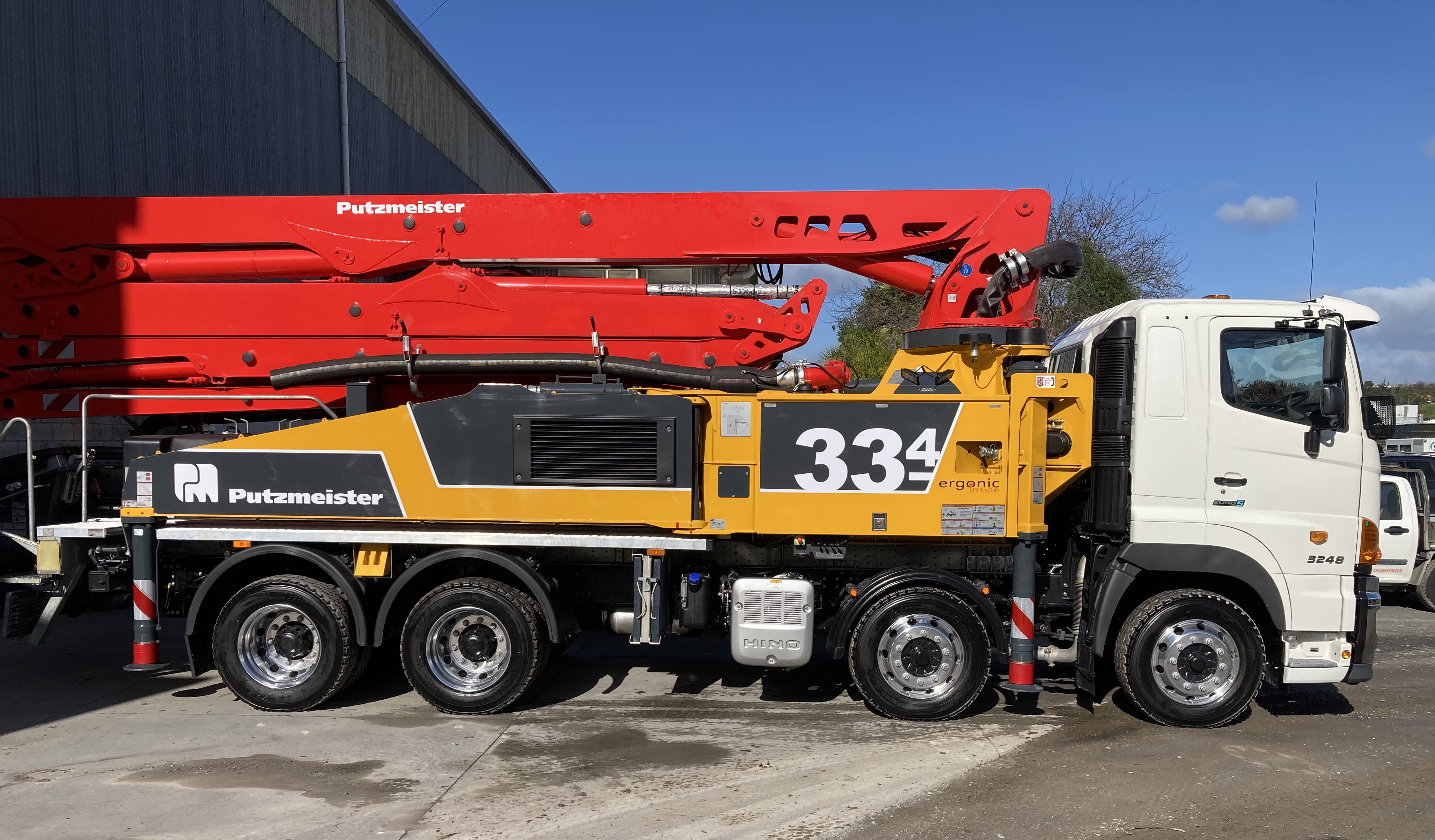

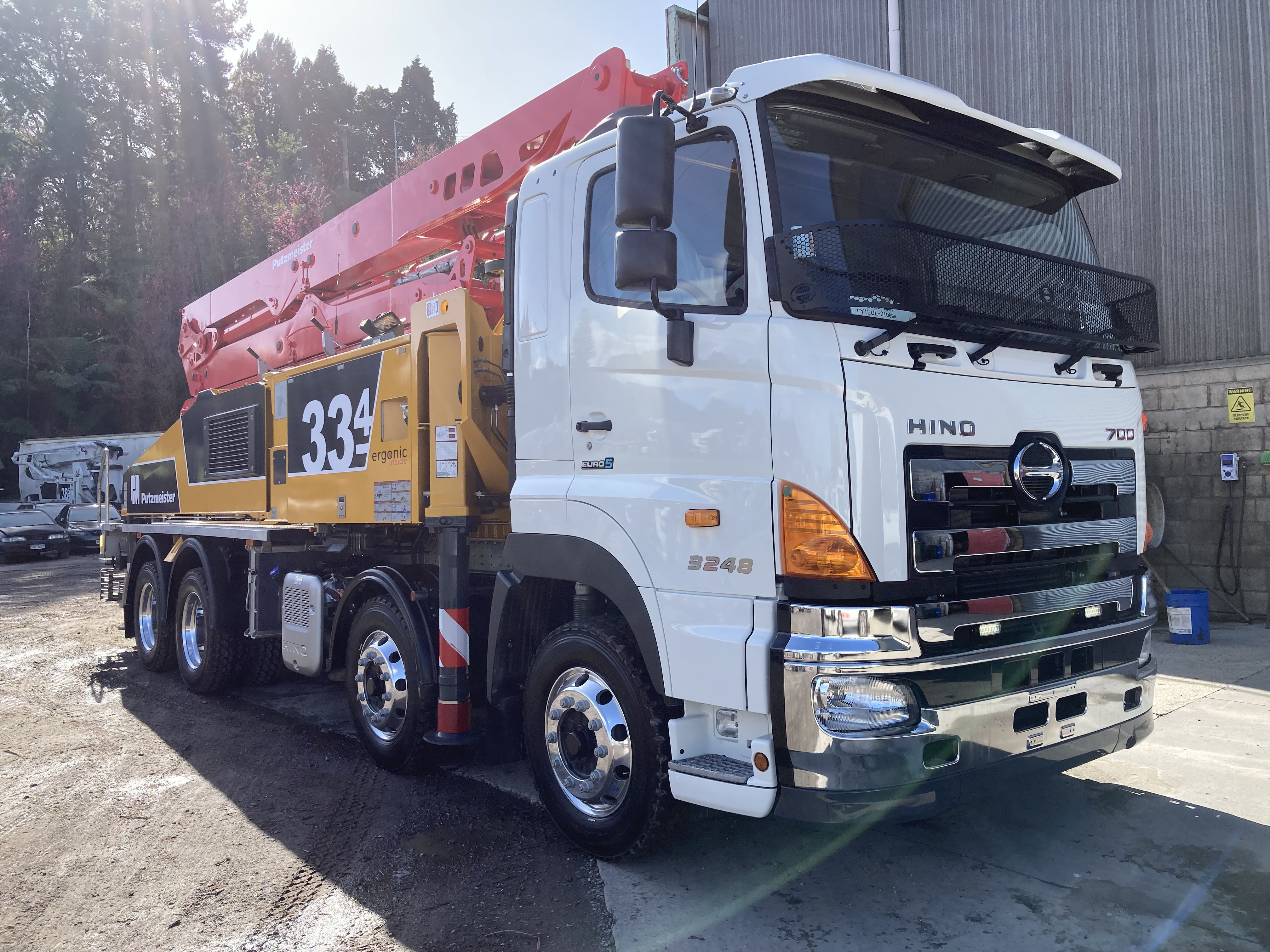

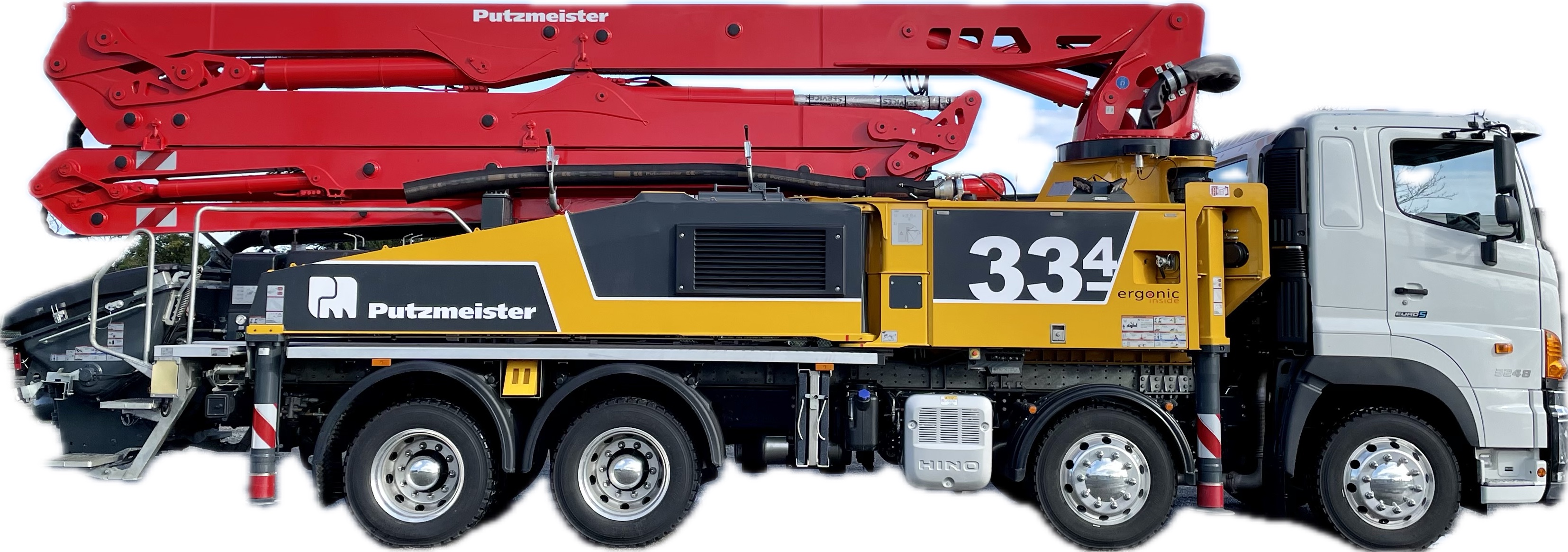

Putzmeister M 33-4 Truck Mounted Concrete Pump
- Product Code: WEB-M33-4
-
Description:
The Putzmeister 33-4 is an allrounder truck mounted concrete pump with a 32.1 m vertical reach. Uncomplicated maintenance is assured with high wear resistant components, maintenance-free components where possible and many standard components to save time and money. Putzmeister is committed to helping you place concrete faster, further, more efficiently and with greater accuracy.
PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.
TECHNICAL DETAILS
Boom M 33-4
Sections - 4
Reach height - 32.1 m
Horizontal reach gross - 27.8 m
Horizontal reach net - 25.1 m
Reach depth max. - 20.2 m
Unfolding height - 7.6 m
End hose length - 4 m
Folding system - Z
Delivery line - DN 125
Pump BSF .16 H
Rod side Output - 160 m³/h
Rod side Delivery pressure - 85 bar
Rod side Strokes - 31 per min.
Piston side Output - 108 m³/h
Piston side Delivery pressure - 130 bar
Piston side Strokes - 21 per min.
Delivery cylinder - 230 Ø mm
Stroke - 2100 mm
