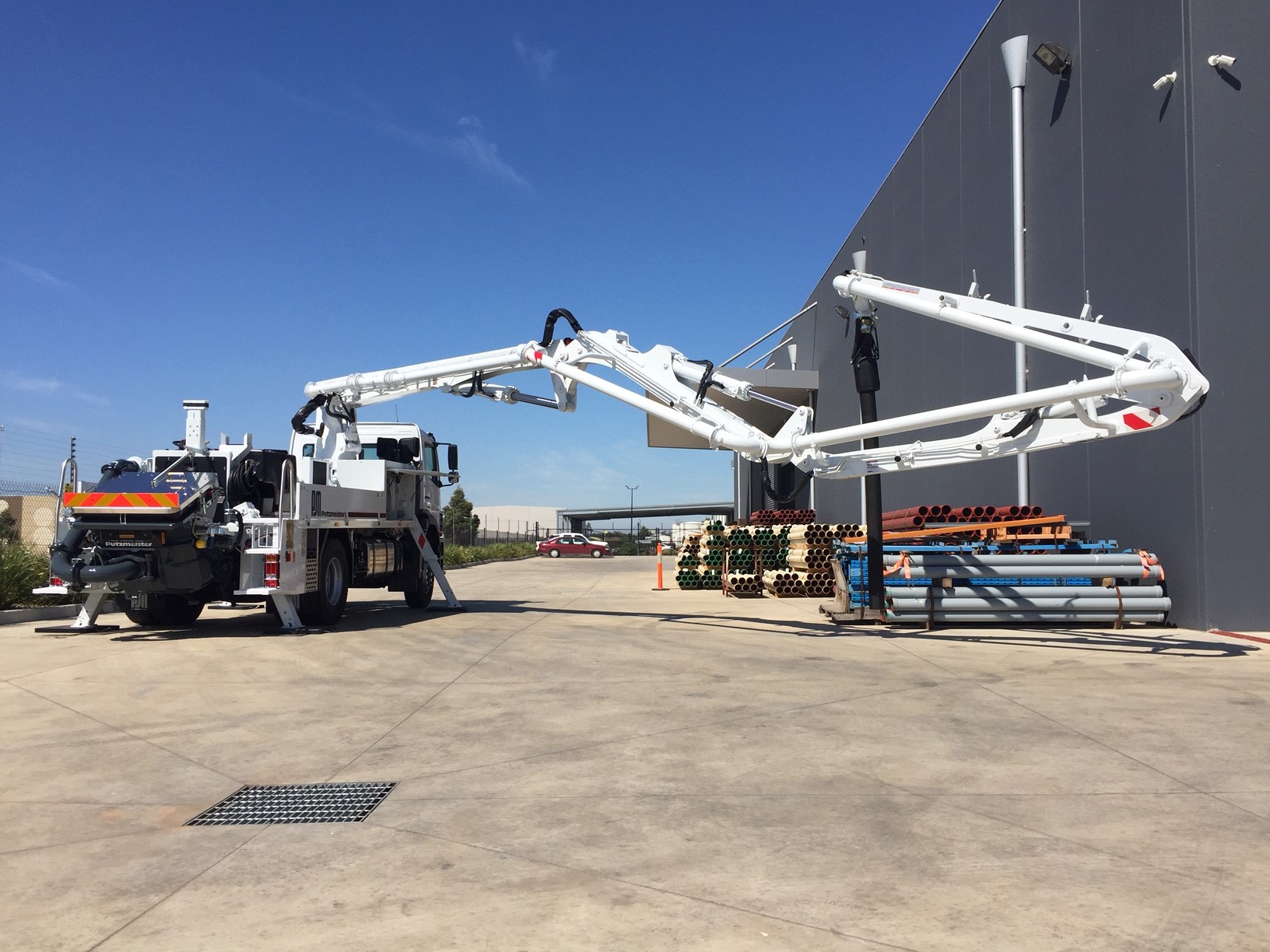

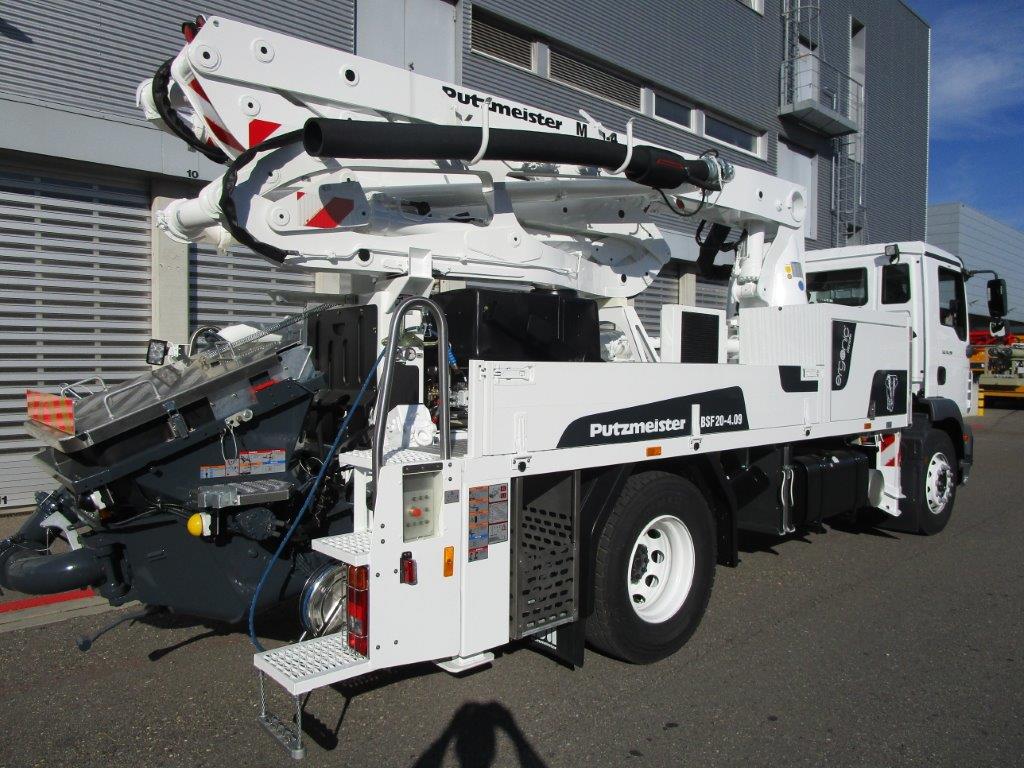

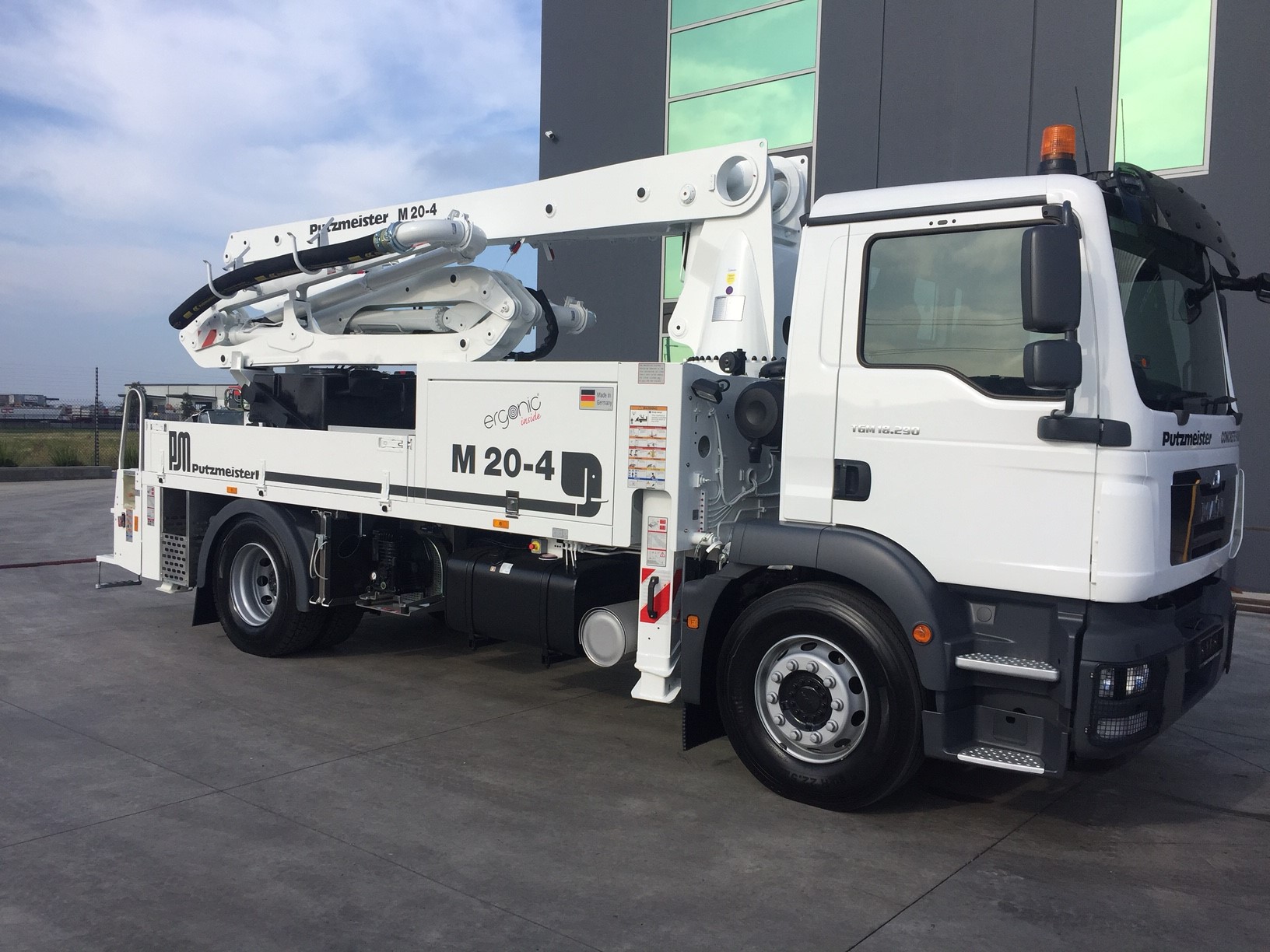

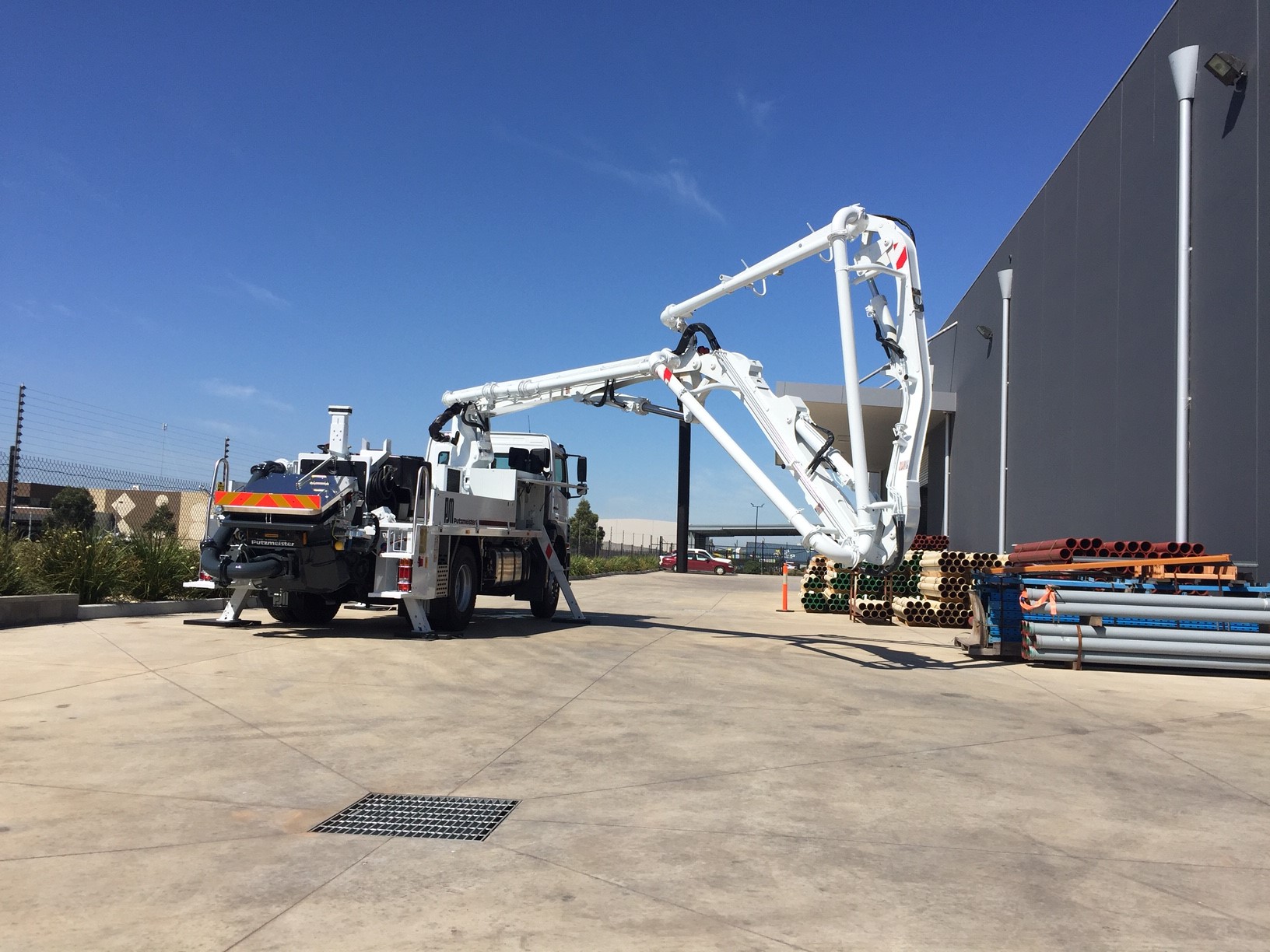

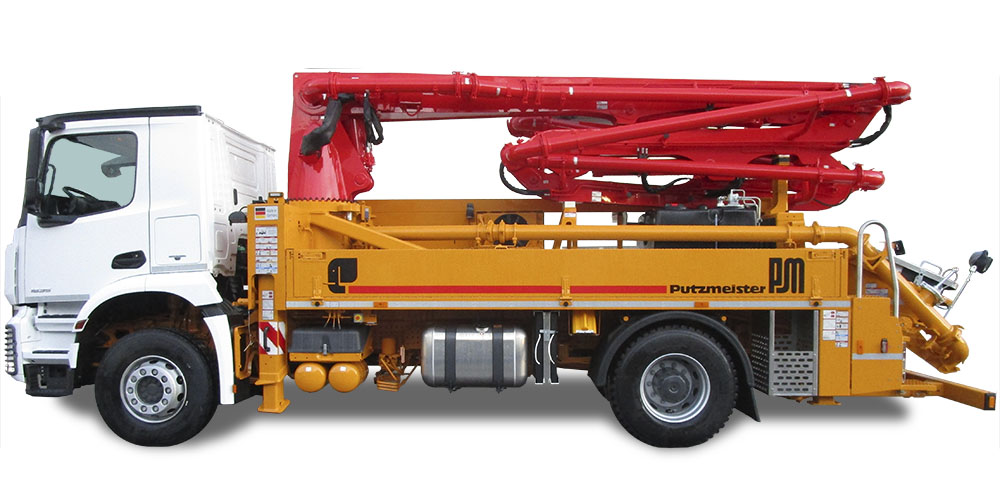

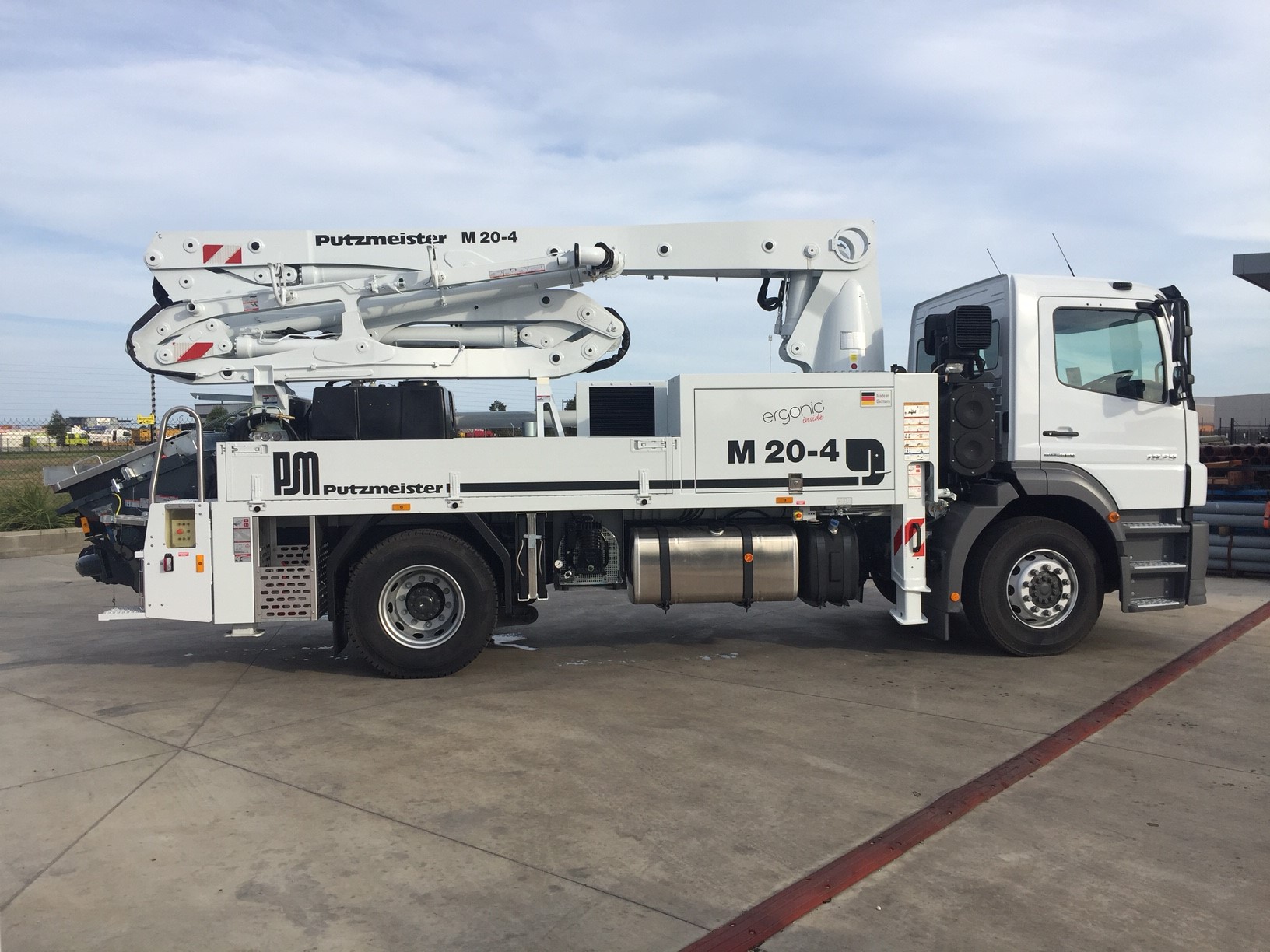

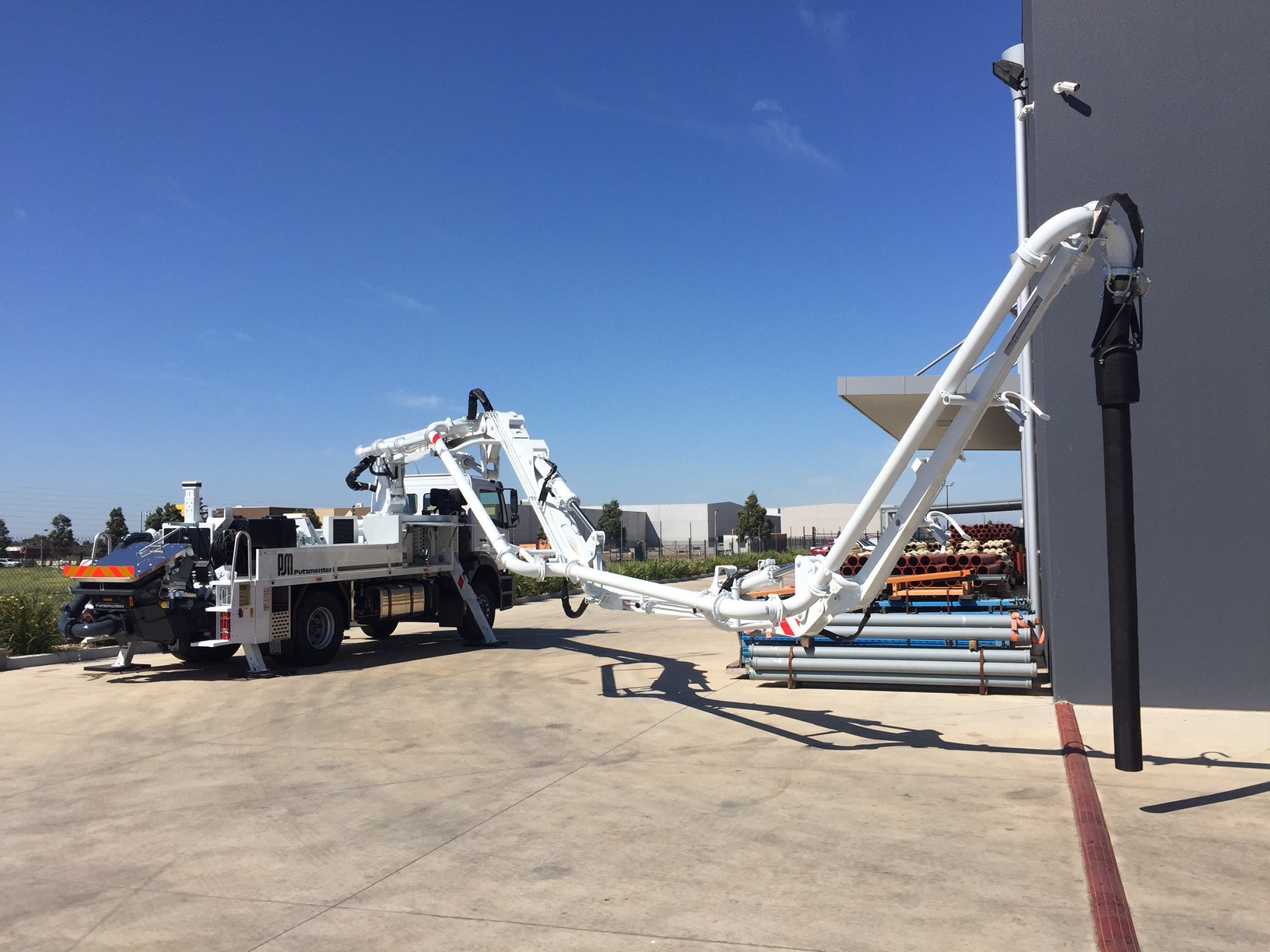

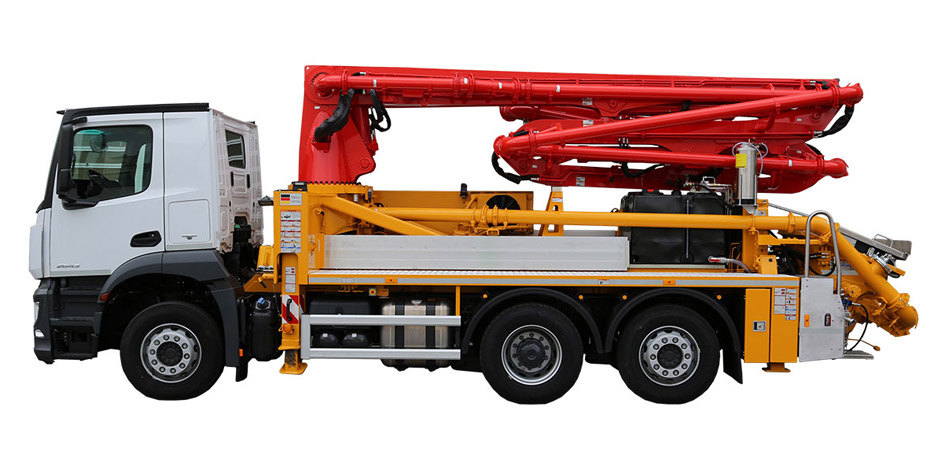

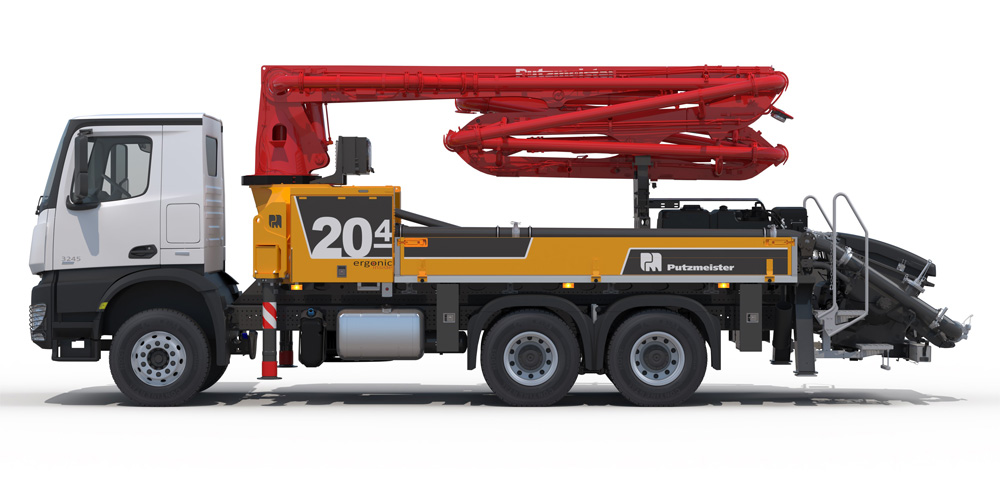

Putzmeister M 20-4 Truck Mounted Concrete Pump
- Product Code: WEB-M20-4
-
Description:
The M20 is the ideal machine for the narrowest operating conditions. Its compact design allows it to be used even in low tunnels. To achieve this, Putzmeister engineered the M20 to be as compact as possible, with the option of mounting it on a 2-axle truck.
PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.
KEY FEATURES
• 3.9 m unfolding height
• Around 20 m vertical reach with four short boom segments
• Available on 2- and 3- axle trucks
• Hall master function with IBC
TECHNICAL DETAILS
Arms - 4
Folding Type - ZR
Vertical Reach - 19.8 m
Horizontal Reach gross - 16.3 m
Unfolding Height - 3.9 m
End Hose - Length - 3 m
Delivery Line - 125/85 mm/bar
Support width Standard (front-rear) - 3.8 - 2.6 m
Support width iSC (front/rear) - 2.6 - 3.8 / 2.6 m
Length - <10 m
Height - <4 m
Output 11 H / 16 H - 110 m³/h / 160 m³/h
Pressure 11 H / 16 H - 78 / 85 bar
DOWNLOADS
(Please Note: drawing may differ to New Zealand specifications)
