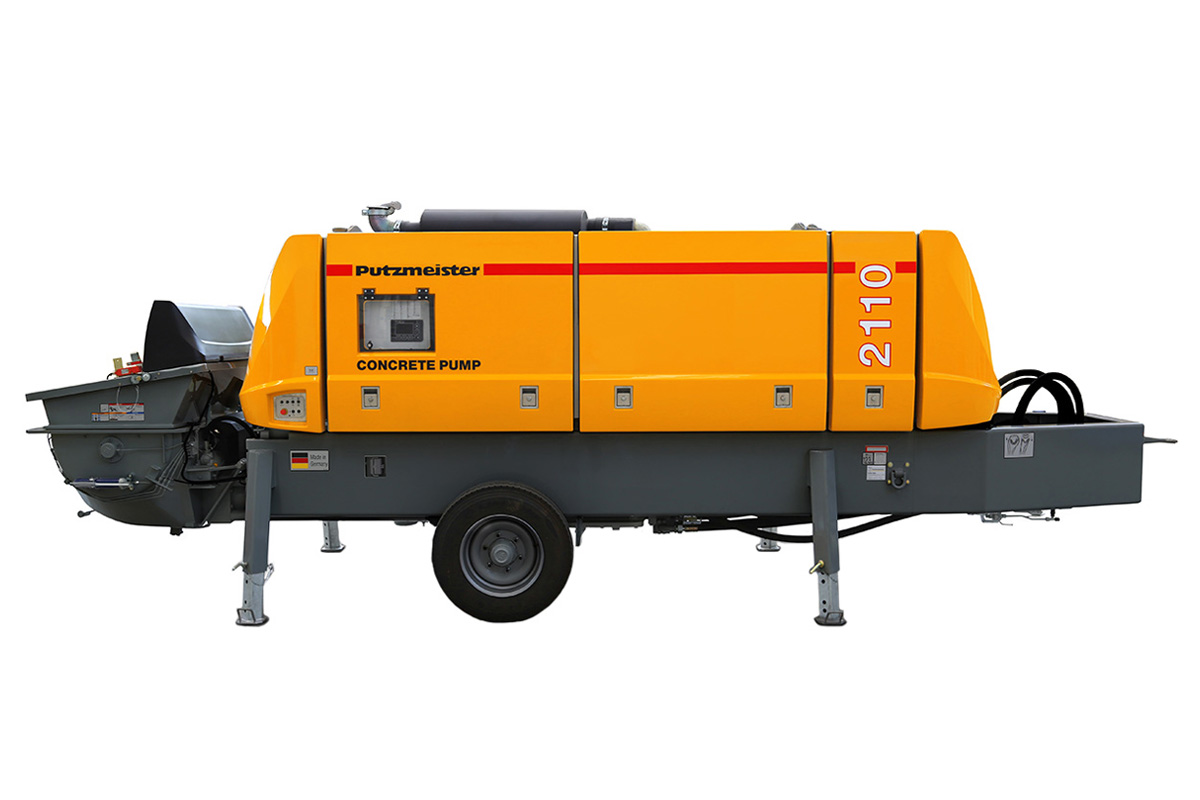

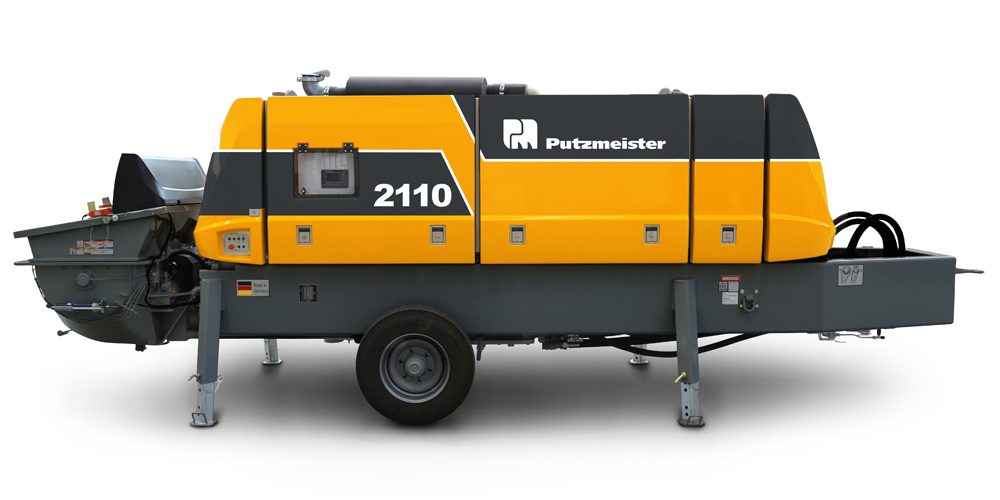

Putzmeister BSA 2110 HP D Trailer Pump
- Product Code: WEB-BSA2110
-
Description:
The BSA 2110 HP D is the world record long-stroke concrete pump with high performance and high delivery pressures. With this machine you are on the safe side. Delivery pressure and flow rate are suitable for almost all applications, especially medium distance and building construction projects. The pump is powered by a Deutz diesel engine with EU Stage IIIA exhaust emission level.
PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.
FEATURES
• External gate valve connection is standard
• Easy change of hydraulic hoses from rod side (max. output) to piston side (max. pressure) operation (option)
• Fully enclosed control panel for weather-proof wear
• High quality wear resistant components
TECHNICAL DETAILS
Output (rod side) - 102 m³/hr
Output (piston side) - 70 m³/hr
Delivery Pressure (rod side) - 150 bar
Delivery Pressure (piston side) - 220 bar
Strokes (rod side) - 26
Strokes (piston side) - 18
Engine Power - 330 kW
Delivery Cylinder Diameter - Stroke Length - 200/2100 mm
Pressure Connection - 200 mm
Length x Width x Height - 7245 x 2248 x 2387 mm
Weight - 8800 kg
Trailer Type - F8
DOWNLOADS
Putzmeister Stationary Concrete Pumps Brochure
Data Sheet / Specifications / Overview
(Please Note: drawing may differ to New Zealand specifications)
