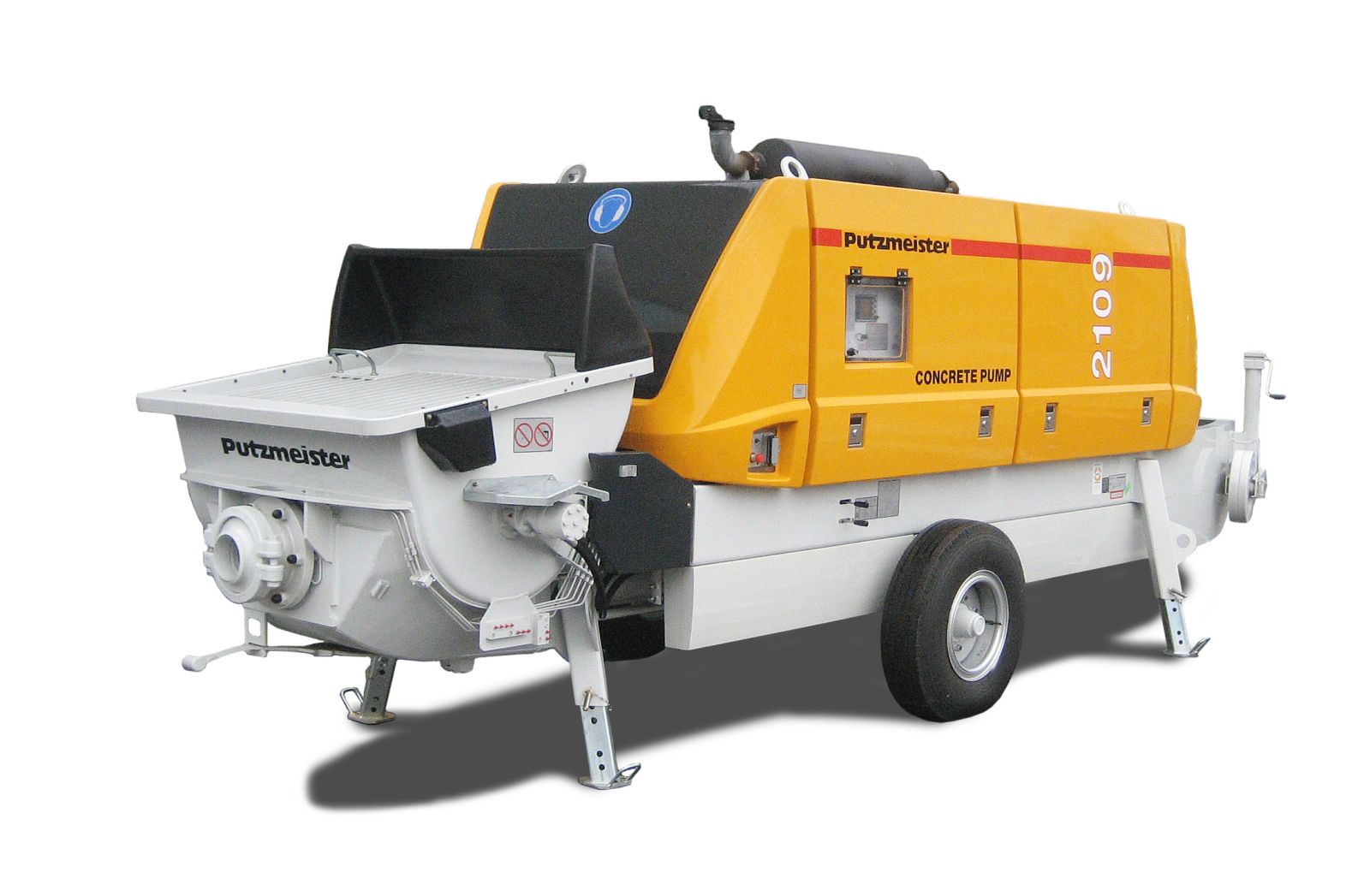

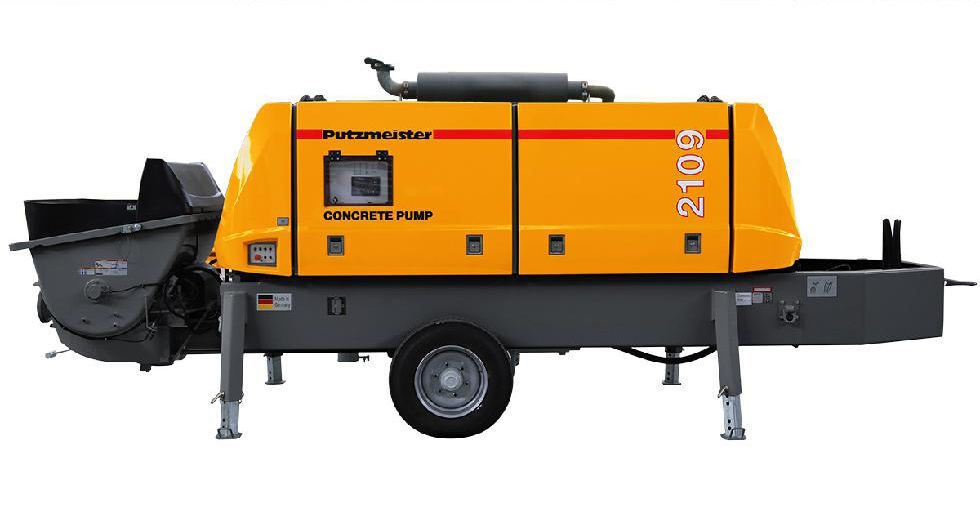

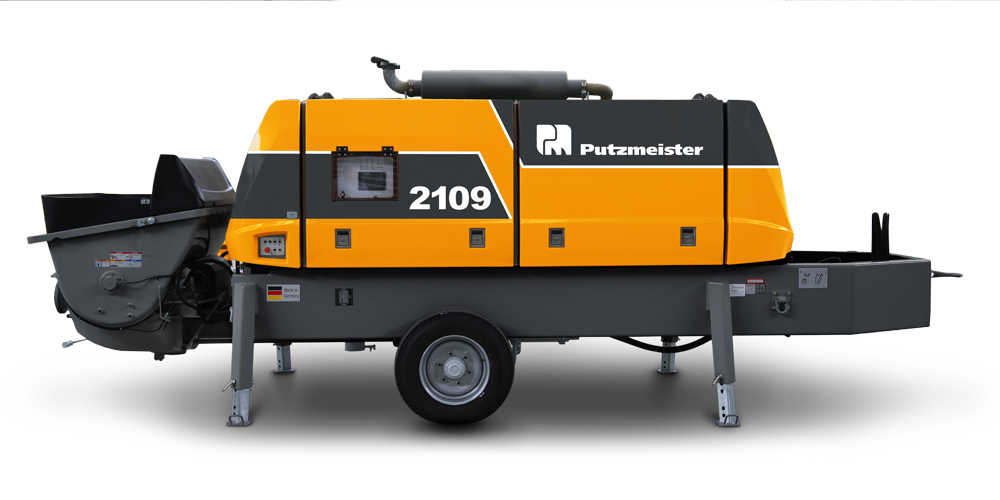

Putzmeister BSA 2109 HD Trailer Pump
- Product Code: WEB-BSA2109
-
Description:
Always a good choice if high pressure and high performance is needed. The BSA 2109 is an all-rounder with a vertical reach from 100 m to 300 m and a horizontal reach about 1,000 m. The concrete pump is Deutz diesel-powered with an exhaust-stage 3A.
PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.
FEATURES
• Economical machine for high pressure applications
• High quality wear resistant components
• Reduced amount of concrete residue due to optimised hopper shape
• Optimized sealing of S-Valve due to automatic ring
• Hydraulic and switch cylinder are protected outside of concreting area
TECHNICAL DETAILS
Output (rod side) - 95 m³/hr
Output (piston side) - 57 m³/hr
Delivery Pressure (rod side) - 91 bar
Delivery Pressure (piston side) - 152 bar
Strokes (rod side) - 24
Strokes (piston side) - 15
Engine Power - 200 kW
Delivery Cylinder Diameter - Stroke Length - 200/2100 mm
Pressure Connection - 150 mm
Length x Width x Height - 6825 x 2170 x 2475 mm
Weight - 6300 kg
Trailer Type - F8
DOWNLOADS
Putzmeister Stationary Concrete Pumps Brochure
Data Sheet / Specifications / Overview
(Please Note: drawing may differ to New Zealand specifications)
