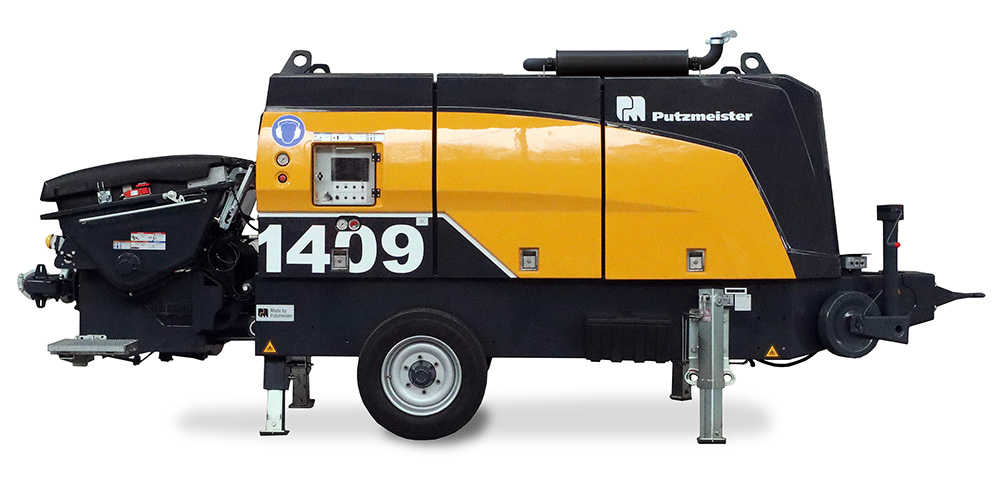

Putzmeister BSA 1409 D Trailer Pump
- Product Code: WEB-BSA1409D
-
Description:
The BSA 1409D stationary concrete pump is a reliable all-rounder, which excels in piling, tunnel concreting, high-rise pumping and backfilling. With smooth and reliable pumping, superior durability and unbeatable flexibility, the pump is able to meet the needs of the most demanding jobs. The new BSA 1400 series is designed for maximum usability, reliability and cost efficiency.
PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.
KEY FEATURES
• Fully new arranged SBU arrangement for a faster change from rod to piston drive side
• Complete new Human machine interface (HMI) (with basic operational functions directly accessible and large coloured 7" display)
• Increased diesel tank capacity from 120 litres to 200 liters
• 26% less hydraulic oil volume due to streamlined control systematics and new pump control Ergonic® 3 FFH
• Splash guard series
• Frame with more stability and lifetime
• Front support wheel series for easier positioning and manouverability
• Ultra robust Glass fibre reinforced hood with enhanced service accessibility
TECHNICAL DETAILS
Output (rod side) - 98 m³/hr
Output (piston side) - 66 m³/hr
Delivery Pressure (rod side) - 73 bar
Delivery Pressure (piston side) - 109 bar
Strokes (rod side) - 37
Strokes (piston side) - 25
Engine - DEUTZ TCD2012L6
Engine Power - 155 kW
Emission Stage - IIIA
Delivery Cylinder Diameter - Stroke Length - 200x144 mm
Pressure Connection - 125 mm
Length x Width x Height - 5945x1922x2419 mm
Weight - 5000 kg
Trailer Type - F8
