Putzmeister BSA 1005 H
- Product Code: WEB-BSA1005H
-
Description:

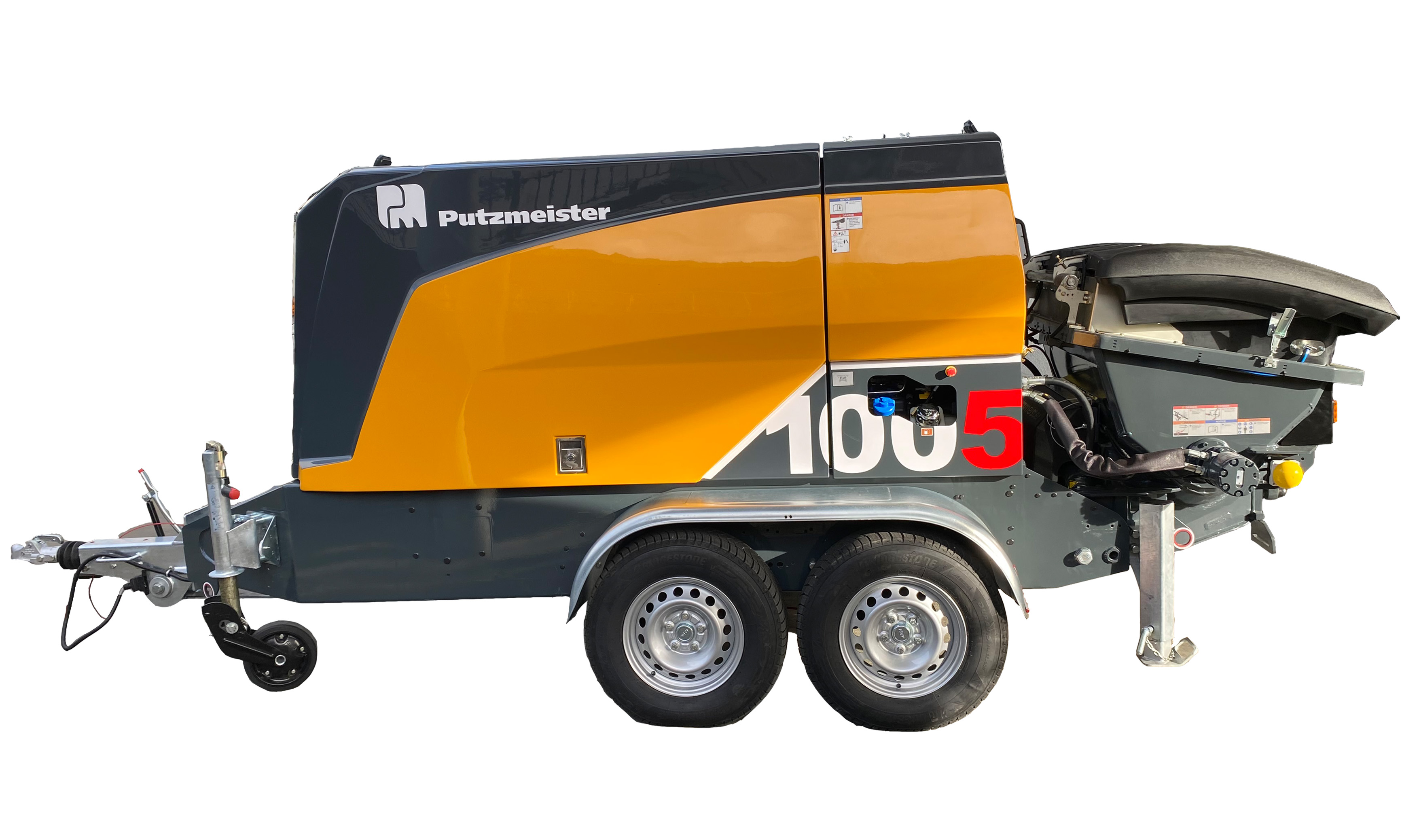

The BSA 1005 H D4F is the compact concrete pump in the 1000 series, equipped with a CAT diesel engine and Ergonic 3 control. It is suitable for flexible use on smaller construction sites and for wet concrete spraying - wherever space is in short supply.
KEY FEATURES
• Fuel-economic automatic speed drawdown on pump stop
• Clear operating data and engine status indication via the display
• High-quality wear resistant components for service-life
TECHNICAL DETAILS
Output - 50 m³/hr
Delivery Pressure - 101 bar
Strokes / minute - 46
Engine Power - 90 kW
Delivery Cylinder Diameter / Stroke Length - 150/1000 mm
Line Connection - 125 mm
Length x Width x Height - 5350 x 1650 x 2000 mm
Weight - 3380 kg
* All data provided is based on experience and depends on the material used. Specifications subject to change without prior notice, no responsibility is taken for the correctness of this information. Other data can be obtained on request.
DOWNLOADS
Data Sheet / Specifications / Overview
