Putzmeister BSA 1005 D5

  • Product Code: WEB-BSA1005D5
  • Description:

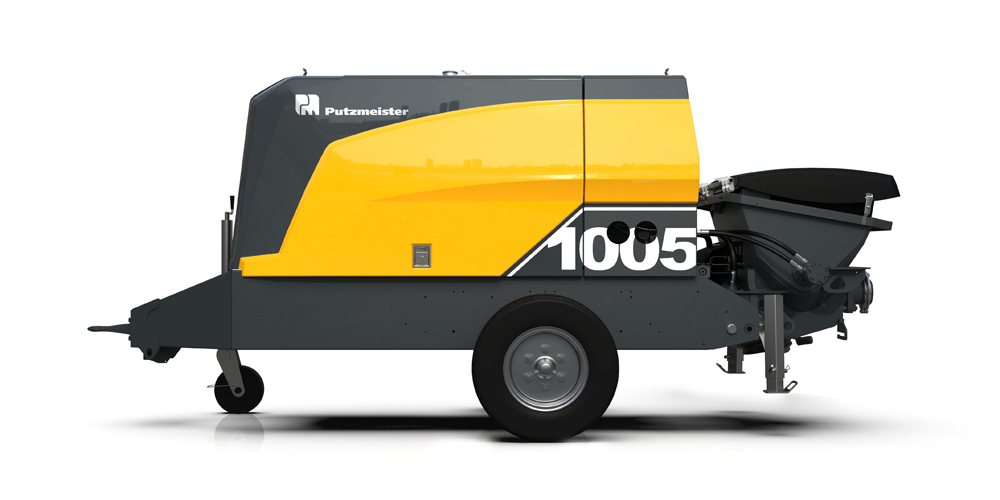

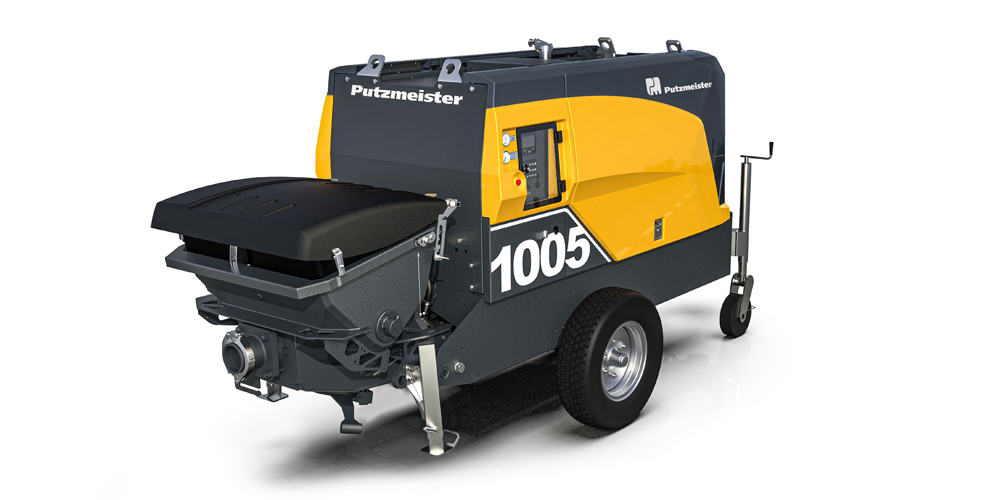

    The BSA 1005 D5 is the compact concrete pump in the 1000 series, equipped with a Deutz diesel engine and Ergonic 3 control. With the BSA 1005 D5, it is possible to deliver normal concrete with a grain size of up to 32 mm. Ideal for small jobsites.

KEY FEATURES

 • Engine emission Stage V without AdBlue system

 • Fuel-economic automatic speed drawdown on pump stop

 • Clear operating data and engine status indication via the display

 • High-quality wear resistant components for service-life

 • CE mark

TECHNICAL DETAILS

Output - 52 m³/hr

Delivery Pressure - 70 bar

Strokes - 33

Engine Power - 55.4 kW

Delivery Cylinder Diameter / Stroke Length - 180/1000 mm

Pressure Connection - 125 mm

Length x Width x Height - 4697 x 1748 x 2138 mm

Weight - 2900 kg

* All data provided is based on experience and depends on the material used. Specifications subject to change without prior notice, no responsibility is taken for the correctness of this information. Other data can be obtained on request.
