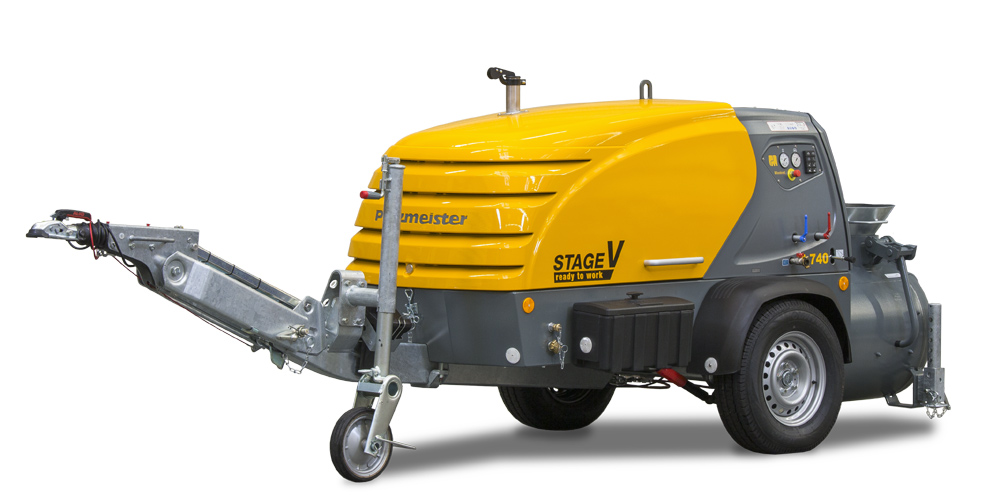

Putzmeister M 740 Stage V Mixokret
- Product Code: WEB-M740V
-
Description:

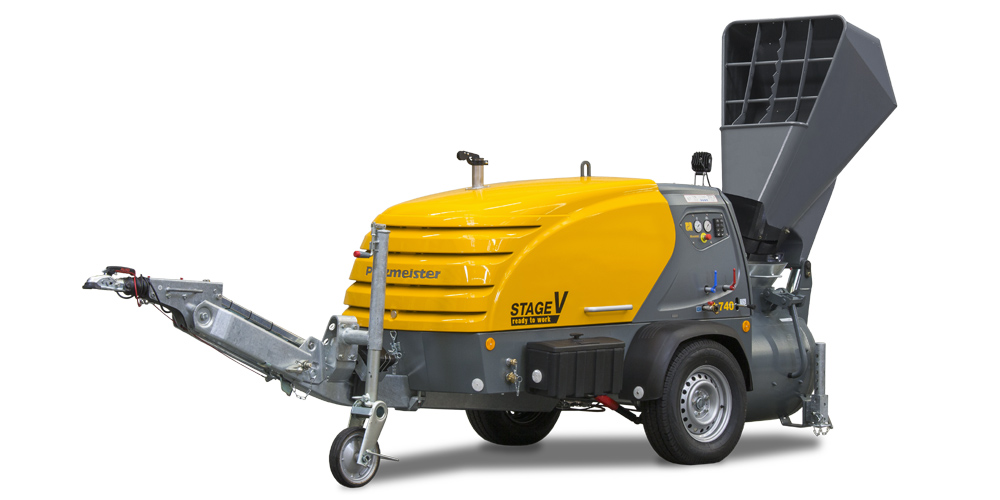

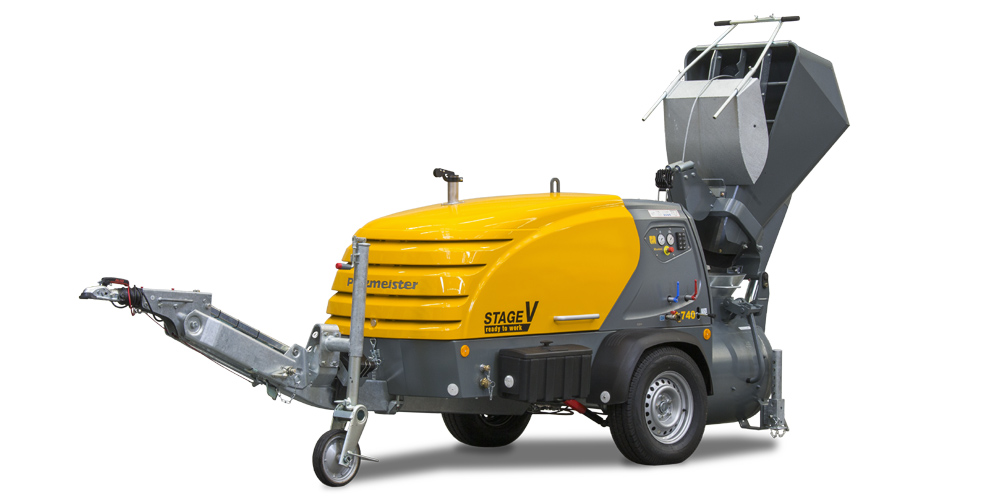

Known for its power and durability, its simple operation, modern design and easy-to-service layout makes the M 740 one of the very best floor screed pumps. More power thanks to the Deutz engine - this meets all requirements of the current "Stage V" emission category. It can convey materials like cement screed, Calcium Sulphate screed (anhydrite), Magnesia screed as well as sand and aggregate for special application. The Mixokret M 740 Stage V is available in 3 versions: 1. M 740 DH Stage V Diesel (Basic version), 2. M 740 DHB Stage V (Diesel and feeder), 3. M 740 DHBS Stage V (Diesel, feeder and scraper).
PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.
KEY FEATURES
• More power
• More output or fuel savings thanks to machine performance management (optional)
• Mixing unit with overload protection and reverse

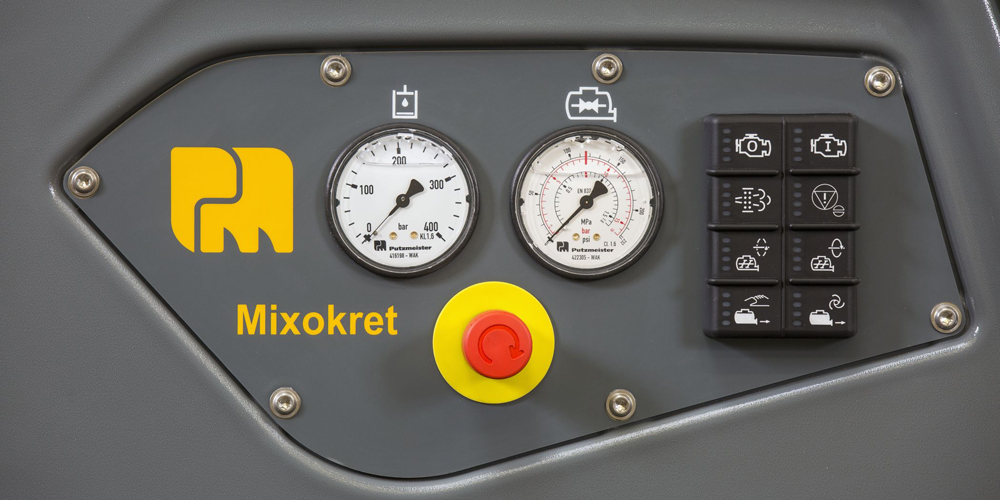

• User-friendly robust keypad clearly arranged and easy to use - thanks to the "follow the blue light" principle
• Large diesel tank
• Optimised maintenance and service features
• Feeder lever and air taps user-friendly arranged
• Robust design ensures value retention and high resale values
TECHNICAL DETAILS
Mixing Vessel - 200 l
Horizontal Reach gross - 180 m
Vertical Reach - 90 m
Delivery Pressure - 8 bar
Compressor - 4.35 m³/min

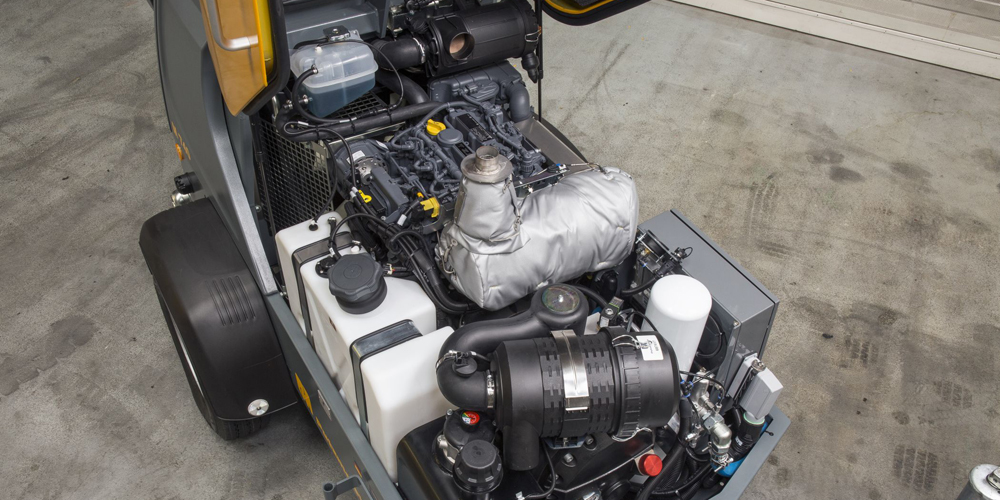

Engine - 3-cylinder Deutz Diesel with turbocharging
Engine Power - 36.4 kW
Emission Stage - Stage V
Diesel Tank - 70 l
Max. Aggregate Size - 16 mm
Chassis - braked
Refer to brochure for weight & sizes
DOWNLOADS
Putzmeister M 740 Stage V Brochure
