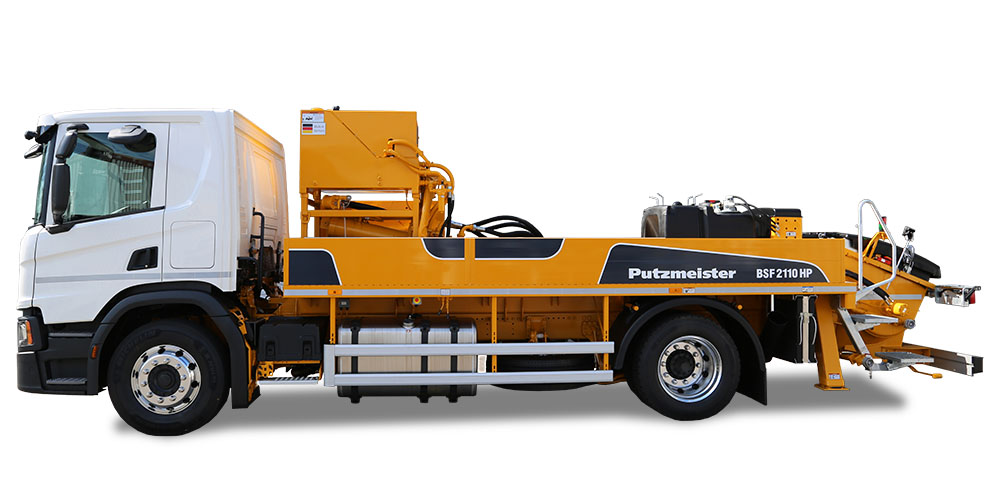

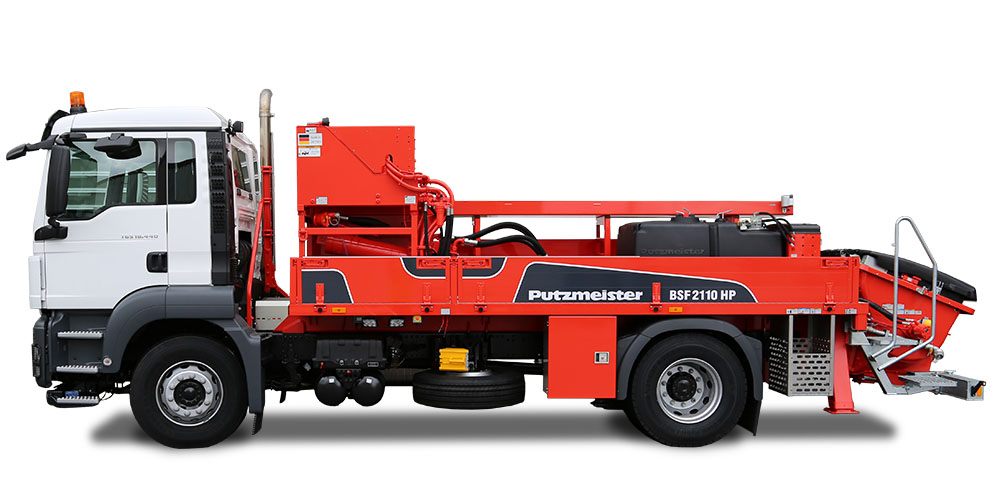

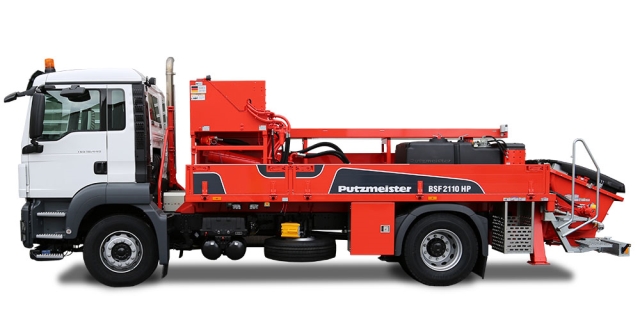

Putzmeister BSF 2110 HP Moli Line Pump
- Product Code: WEB-BSF2110HP
-
Description:
It is a common complaint that stationary concrete pumps often cannot be used cost-efficiently for short pours. MOLI is here to change that. The MOLI is a mobile pipeline concrete pump for high-pressure delivery of concrete and it offers a simple solution. The pump is quickly set up and is ready for operation in next to no time.
PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.
KEY FEATURES
• Maximum profitability, as it can be used at several construction sites during the day
• Powerful concrete pump unit
• Transports everything required for delivery of concrete
• Simple operation and easy handling
• On-board compressor and high-pressure flushing water pump allow easy cleaning of the whole delivery system
• No time-consuming set-up, no crane required
TECHNICAL DETAILS
Delivery Cylinder Diameter - Stroke Length - 200/2100 mm
Output (piston side) - 69 m³/hr
Delivery Pressure (piston side) - 220 bar
Strokes (piston side) - 18
Output (rod side) - 106 m³/hr
Delivery Pressure (rod side) - 150 bar
Strokes (rod side) - 26
Length x Width x Height - 8.8 x 2.5 x 3.2 m
DOWNLOADS
Putzmeister Truck Mounted Concrete Pumps Brochure
Data Sheet / Specifications / Overview
(Please Note: drawing may differ to New Zealand specifications)
