Baron CU6000 Conveyor

  • Product Code: WEB-BCU6000
  • Description:

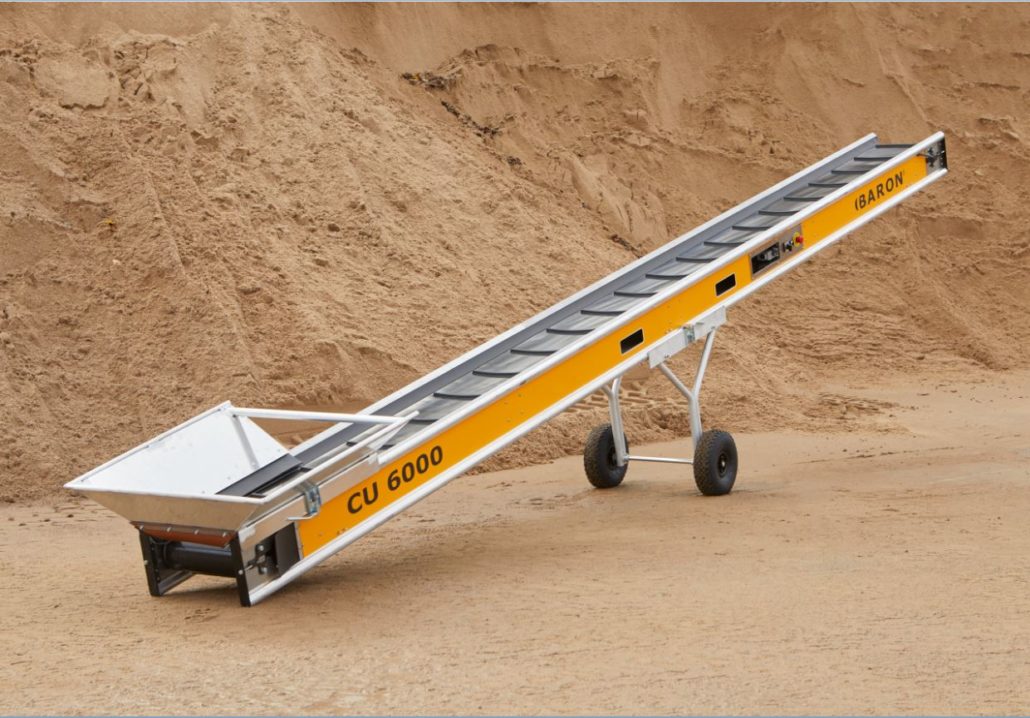

    The Baron CU6000 conveyor is hard-wearing and can be used for all types of materials from demolition debris to soil and wet mortar. The closed side profile provides an extremely high load capacity while offering a maximum degree of safety.

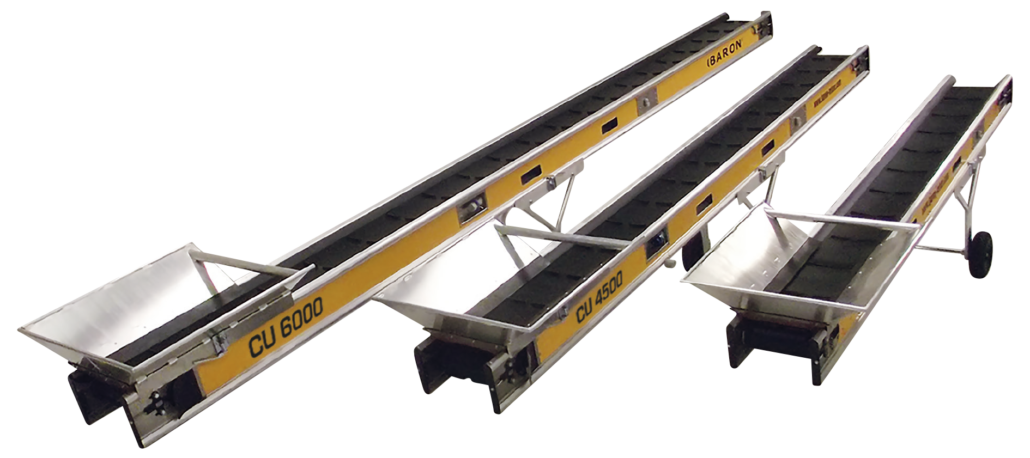

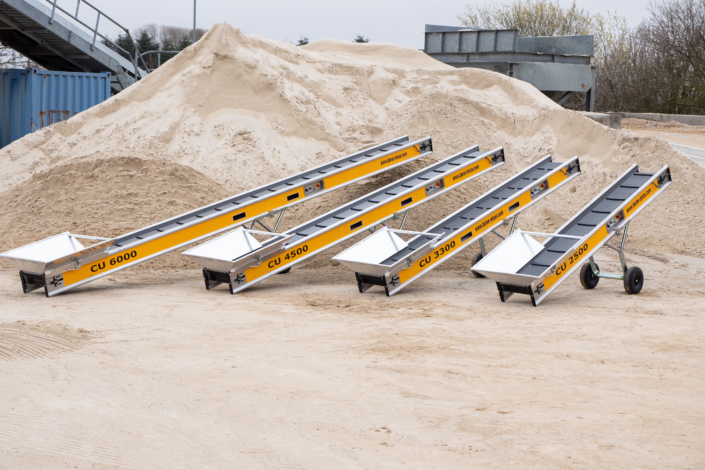

    The conveyors can be connected in series with up to eight conveyors at a time and are available in the editions CU (ConveyorUnit) and CCU (ConveyorCotrolUnit), from 2.5 to 6.0 metres in length. The CCU is required, if you want to make a series connection, as this is used for steering of the other conveyors. The CU conveyors have been designed for users who have no need for series connections but don’t want to miss out on the variable speed and the option for both forwards and backwards movement.

    PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.



PRODUCT ADVANTAGES

  • Extremely high load capacity and durability
  • Tolerates heavy use and handling
  • Easy to clean
  • Electrical parts securely housed
  • Closed side profile
  • Superb quality and finish
  • Fully-welded aluminium construction
  • Extremely safe
  • High pulling power
  • Easy belt adjustment
  • Forklift brackets
  • Hard-wearing PVC belt
  • All electrical parts are rated IP54
  • Tolerates high-pressure cleaning
  • Long product life
  • Low weight
  • Able to transport all types of materials
  • Stackable
  • Low maintenance costs
  • Strong undercarriage
  • Quick and easy maintenance

TECHNICAL DATA CU6000

Drum motor:
Current:
Belt speed:
Max. pullpower:
Belt length:
Total length:
Belt width:
Total width:
Height:
Weight:
0.55 kW
240 V
20-80 cm/s
200 kg
600 cm
630 cm
34 cm
45,5 cm
25 cm
103 kg
