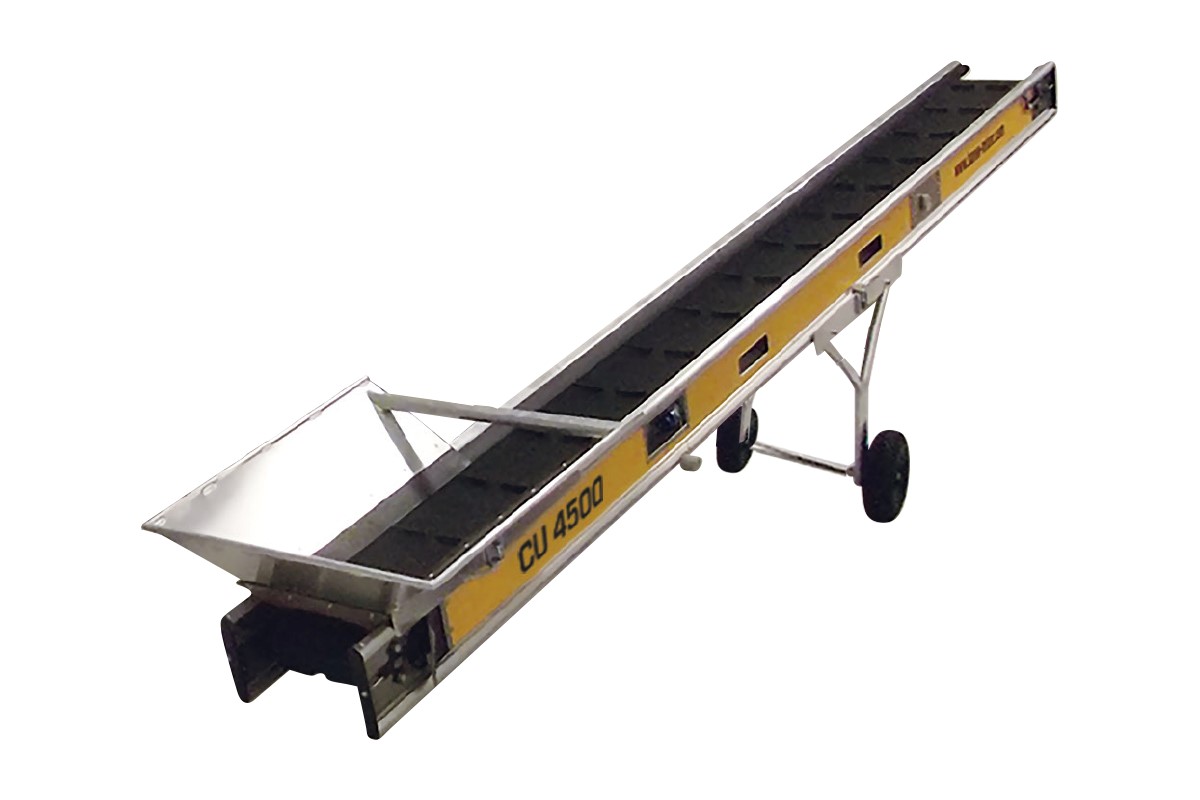

Baron CU4500 Conveyor

  • Product Code: WEB-BCU4500
  • Description:

    The Baron CU4500 conveyor is hard-wearing and can be used for all types of materials from demolition debris to soil and wet mortar. The closed side profile provides an extremely high load capacity while offering a maximum degree of safety.

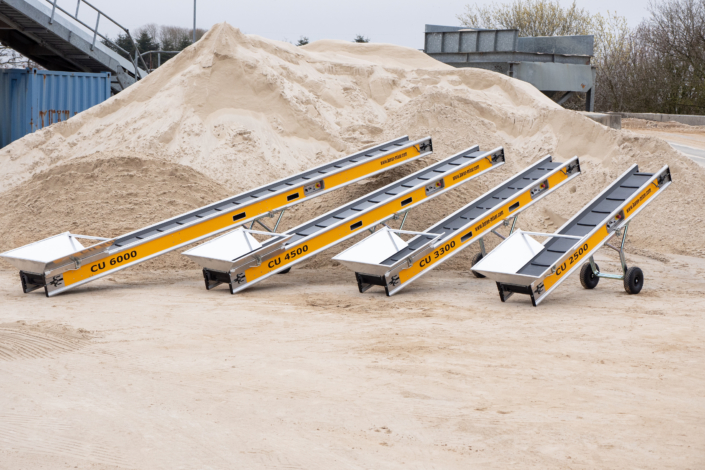

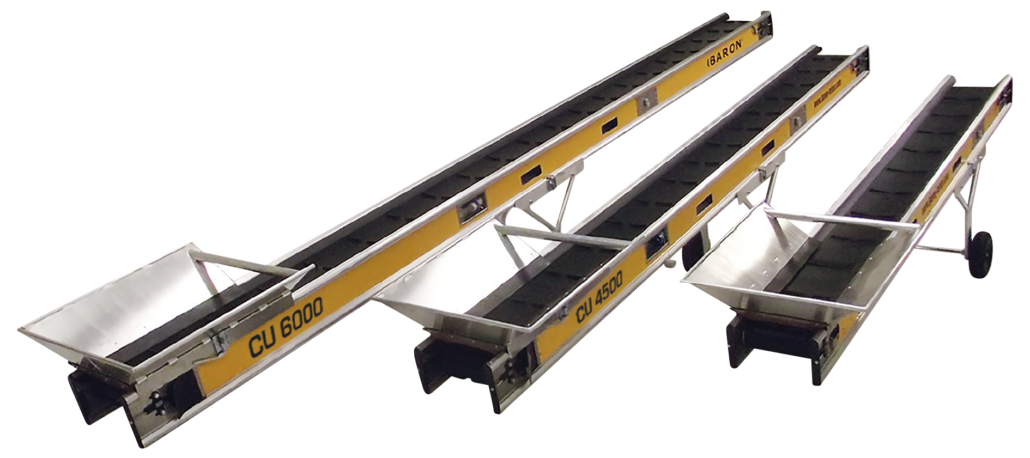

    The conveyors can be connected in series with up to eight conveyors at a time and are available in the editions CU (ConveyorUnit) and CCU (ConveyorCotrolUnit), from 2.5 to 6.0 metres in length. The CCU is required, if you want to make a series connection, as this is used for steering of the other conveyors. The CU conveyors have been designed for users who have no need for series connections but don’t want to miss out on the variable speed and the option for both forwards and backwards movement.

PRODUCT ADVANTAGES

• Extremely high load capacity and durability

• Hard-wearing PVC belt

• Easy to clean

• Easy belt adjustment

• Closed side profile

• Electrical parts securely housed

• Superb quality and finish

• Fully-welded aluminium construction

• Extremely safe

• High pulling power

• Tolerates high-pressure cleaning

• All electrical parts are rated IP54

• Forklift brackets

• Low weight

• Able to transport all types of materials

• Stackable

• Long product life

• Low maintenance costs

• Tolerates heavy use and handling

• Strong undercarriage

• Quick and easy maintenance



TECHNICAL DATA CU4500

Drum motor:
Current:
Belt speed:
Max. pullpower:
Belt length:
Total length:
Belt width:
Total width:
Height:
Weight:
0.55 kW
240 V
20-80 cm/s
200 kg
450 cm
480 cm
34 cm
45,5 cm
25 cm
87 kg
