Baron CU3300 Conveyor
- Product Code: WEB-BCU3300
-
Description:
The Baron CU3300 conveyor is hard-wearing and can be used for all types of materials from demolition debris to soil and wet mortar. The closed side profile provides an extremely high load capacity while offering a maximum degree of safety.

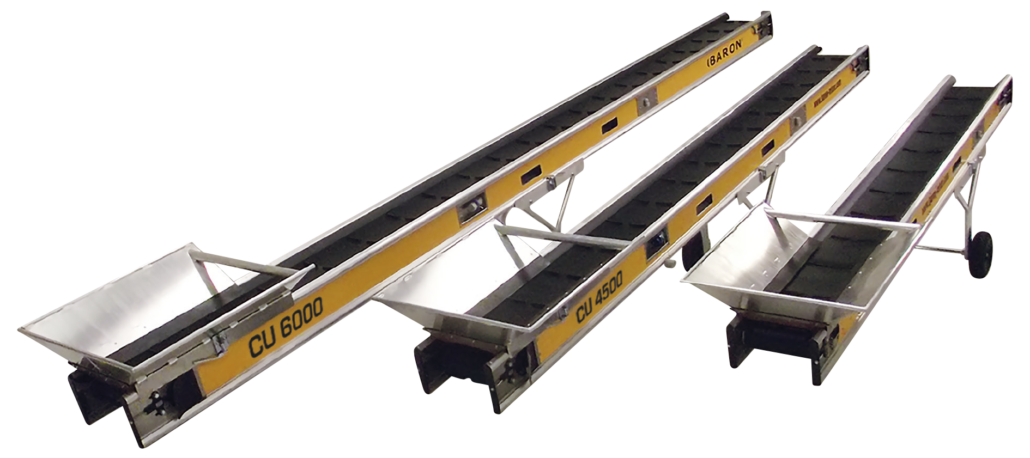

The conveyors can be connected in series with up to eight conveyors at a time and are available in the editions CU (ConveyorUnit) and CCU (ConveyorCotrolUnit), from 2.5 to 6.0 metres in length. The CCU is required, if you want to make a series connection, as this is used for steering of the other conveyors. The CU conveyors have been designed for users who have no need for series connections but don’t want to miss out on the variable speed and the option for both forwards and backwards movement.
PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.
PRODUCT ADVANTAGES
- Extremely high load capacity and durability
- Easy belt adjustment
- Closed side profile
- Easy to clean
- Hard-wearing PVC belt
- High pulling power
- Superb quality and finish
- Fully-welded aluminium construction
- Extremely safe
- Tolerates high-pressure cleaning
- Electrical parts securely housed
- Forklift brackets
- Low weight
- All electrical parts are rated IP54
- Stackable
- Long product life
- Able to transport all types of materials
- Tolerates heavy use and handling
- Strong undercarriage
- Quick and easy maintenance
- Low maintenance costs
TECHNICAL DATA CU3300
| Drum motor: Current: Belt speed: Max. pullpower: Belt length: Total length: Belt width: Total width: Height: Weight: |
0.55 kW 240 V 20-80 cm/s 200 kg 330 cm 360 cm 34 cm 45,5 cm 25 cm 71 kg |
