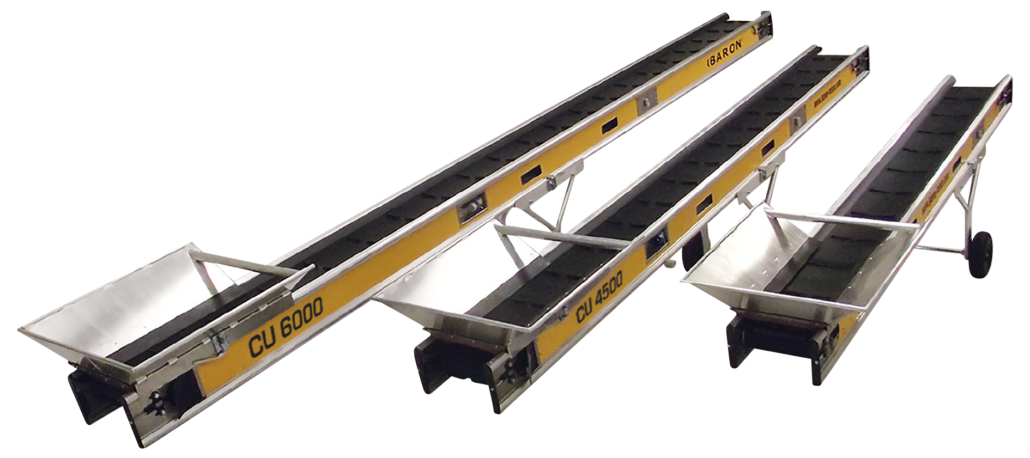

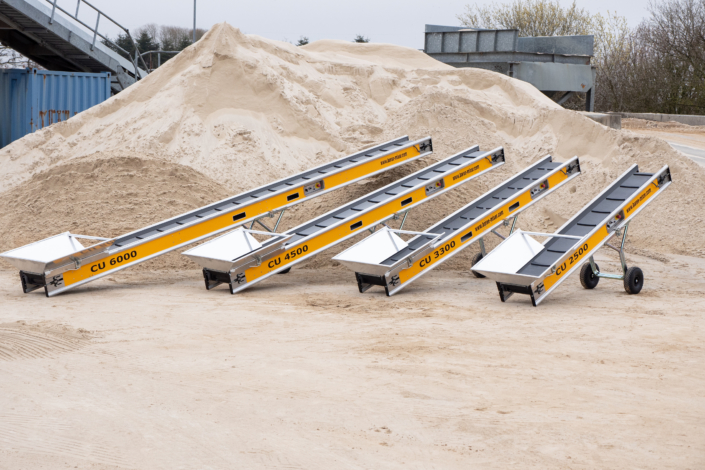

Baron CU2500 Conveyor

  • Product Code: WEB-BCU2500
  • Description:

    The Baron CU2500 conveyor is hard-wearing and can be used for all types of materials from demolition debris to soil and wet mortar. The closed side profile provides an extremely high load capacity while offering a maximum degree of safety.

    The conveyors can be connected in series with up to eight conveyors at a time and are available in the editions CU (ConveyorUnit) and CCU (ConveyorCotrolUnit), from 2.5 to 6.0 metres in length. The CCU is required, if you want to make a series connection, as this is used for steering of the other conveyors. The CU conveyors have been designed for users who have no need for series connections but don’t want to miss out on the variable speed and the option for both forwards and backwards movement.

    PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.



PRODUCT ADVANTAGES

  • Extremely high load capacity and durability
  • High pulling power
  • Easy to clean
  • Hard-wearing PVC belt
  • Easy belt adjustment
  • Superb quality and finish
  • Closed side profile
  • Extremely safe
  • All electrical parts are rated IP54
  • Tolerates high-pressure cleaning
  • Electrical parts securely housed
  • Forklift brackets
  • Fully-welded aluminium construction
  • Low weight
  • Stackable
  • Long product life
  • Quick and easy to maintain
  • Tolerates heavy use and handling
  • Strong undercarriage
  • Able to transport all types of materials
  • Low maintenance costs

TECHNICAL DATA CU2500

Drum motor:
Current:
Belt speed:
Max. pullpower:
Belt length:
Total length:
Belt width:
Total width:
Height:
Weight:
0.55 kW
240 V / 380 V *
20-80 cm/s
200 kg
250 cm
280 cm
34 cm
45,5 cm
25 cm
61 kg
