Baron 6000 Basic Conveyor
- Product Code: WEB-B6000B
-
Description:

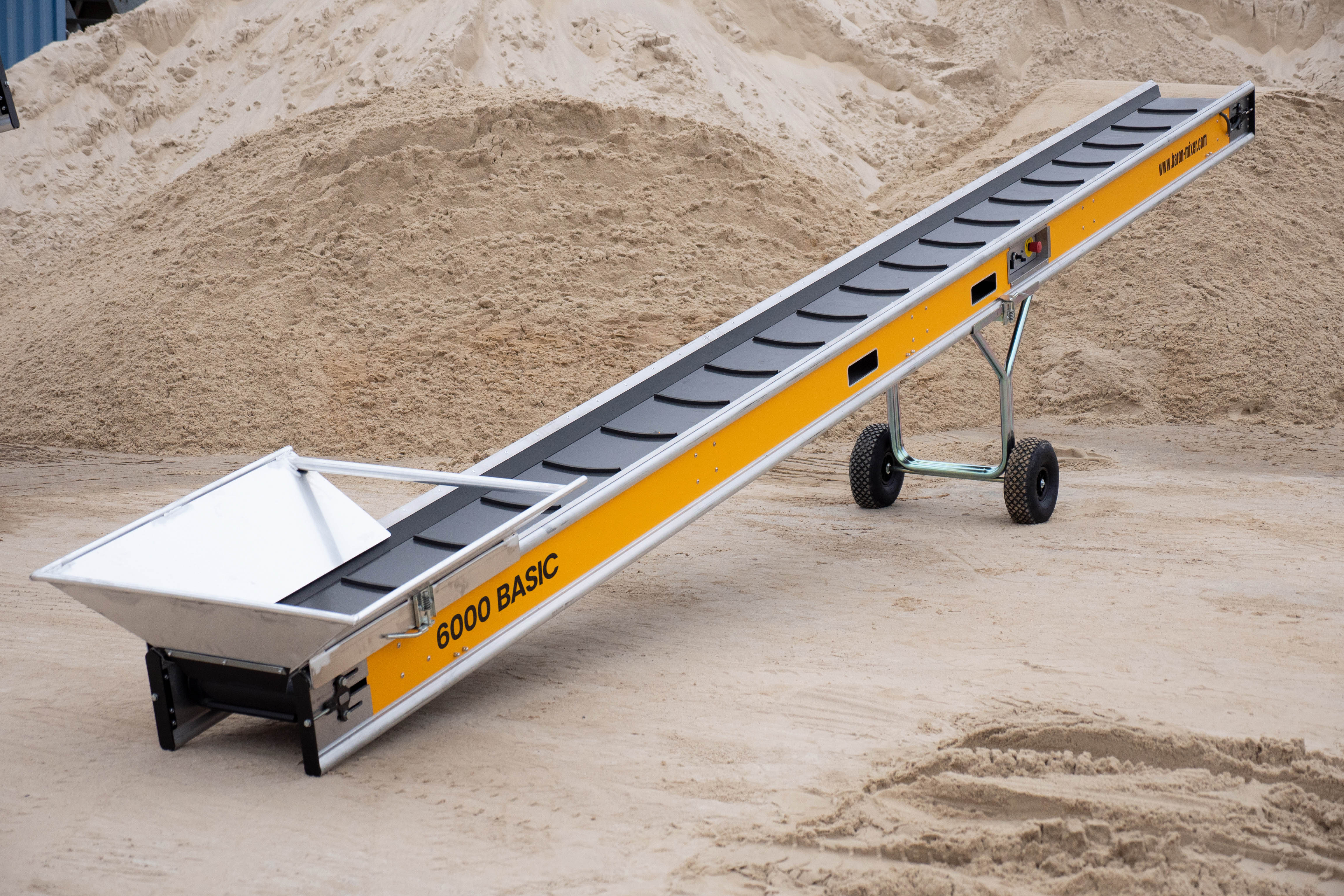

The Baron 6000 Basic conveyor is hard-wearing and can be used for all types of materials from demolition debris to wet mortar and soil. The closed side profile provides an extremely high load capacity while offering a maximum degree of safety. The conveyor is shown with the feeding box and undercarriage, which must be bought separately.
Forward, backwards, variable speed, and series connection. At Baron, you can choose between two series: BASIC and CONNECT. If you need a conveyor that does not need to be connected in series, you should go with the Basic conveyor. If you need a conveyor belt that can be connected - and act as a MASTER/SLAVE in a series connection, then you need a CONNECT conveyor.
PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.
PRODUCT ADVANTAGES
- Extremely high load capacity and durability
- Tolerates heavy use and handling
- Easy to clean
- Electrical parts securely housed
- Closed side profile
- Superb quality and finish
- Fully-welded aluminium construction
- Extremely safe
- High pulling power
- Easy belt adjustment
- Forklift brackets
- Hard-wearing PVC belt
- All electrical parts are rated IP54
- Tolerates high-pressure cleaning
- Long product life
- Low weight
- Able to transport all types of materials
- Stackable
- Low maintenance costs
- Strong undercarriage
- Quick and easy maintenance
TECHNICAL DATA 6000 BASIC
| Length | 630 cm |
|---|---|
| Motor | 550 watt |
| Width | 45 cm |
| Engine | 3-phased 0.55kW |
| Height | 25 cm |
| Weight | 103 kg |
| Current | 1x110V |
| Belt speed (cm/s) | 20-80 |
| Belt Width | 34 cm |
| Belt Length | 600 cm |
| Max. pullpower | 200 kg |
| workindependent | Yes |
| Series connection | No |
| Standard carrier on belt | 12.0000 |
| Variable belt speed | 20 to 80 cm/s |
