Baron 2500 Basic Conveyor
- Product Code: WEB-B2500B
-
Description:

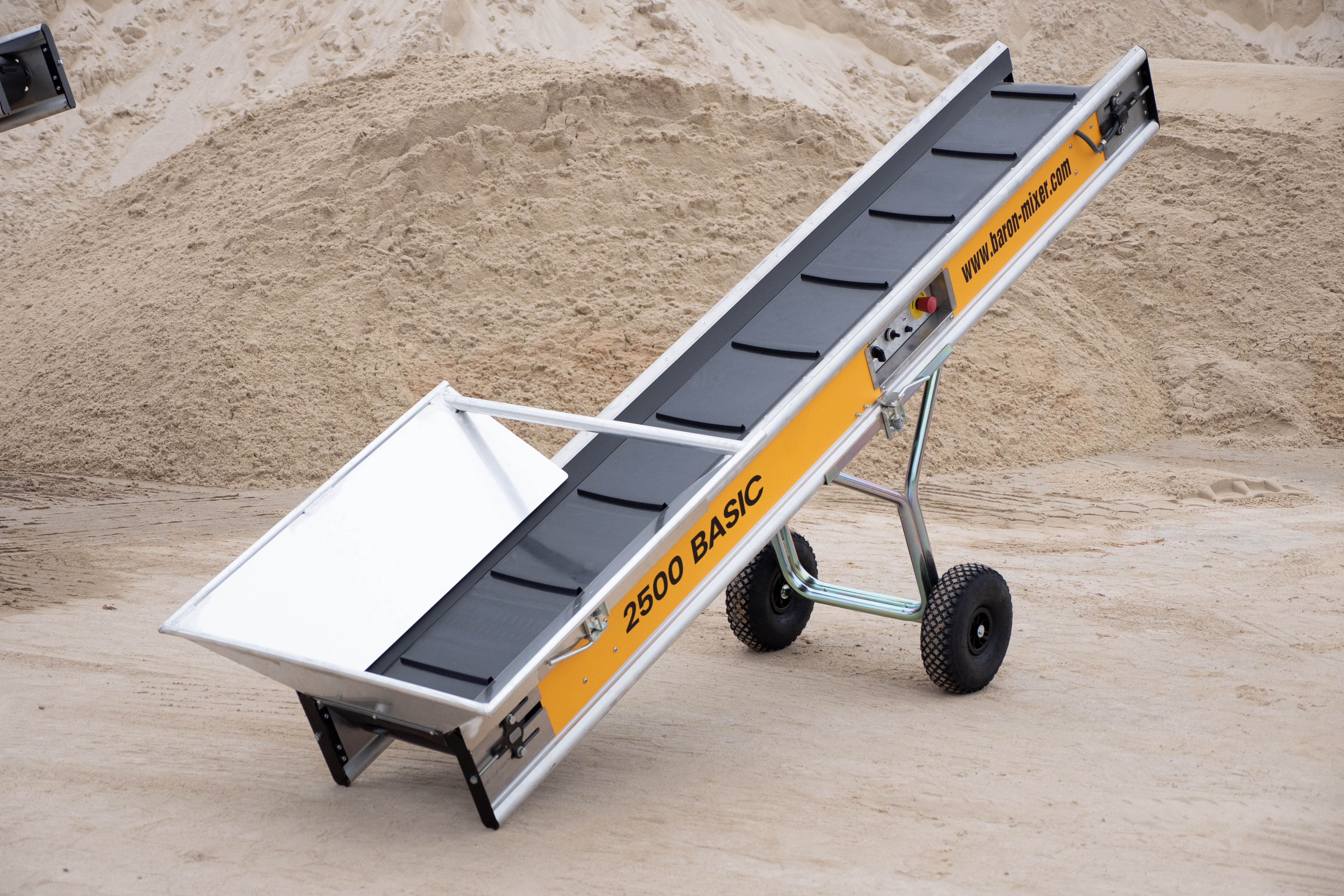

The Baron 2500 Basic conveyor is hard-wearing and can be used for all types of materials from demolition debris to wet mortar and soil. The closed side profile provides an extremely high load capacity while offering a maximum degree of safety. The conveyor is shown with the feeding box and undercarriage, which must be bought separately.
Forward, backwards, variable speed, and series connection. At Baron, you can choose between two series: BASIC and CONNECT. If you need a conveyor that does not need to be connected in series, you should go with the Basic conveyor. If you need a conveyor belt that can be connected - and act as a MASTER/SLAVE in a series connection, then you need a CONNECT conveyor.
PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.
PRODUCT ADVANTAGES
Extremely high load capacity and durability
High pulling power
Easy to clean
Hard-wearing PVC belt
Easy belt adjustment
Superb quality and finish
Closed side profile
Extremely safe
All electrical parts are rated IP54
Tolerates high-pressure cleaning
Electrical parts securely housed
Forklift brackets
Fully-welded aluminium construction
Low weight
Stackable
Long product life
Quick and easy to maintain
Tolerates heavy use and handling
Strong undercarriage
Able to transport all types of materials
Low maintenance costs
TECHNICAL DATA 2500 BASIC
| Length | 280 cm |
|---|---|
| Motor | 550 watt |
| Width | 45 cm |
| Engine | 3-phased 0.55kW |
| Height | 25 cm |
| Weight | 61 kg |
| Current | 1x110V |
| Belt speed (cm/s) | 20-80 |
| Belt Width | 34 cm |
| Belt Length | 250 cm |
| Max. pullpower | 200 kg |
| workindependent | Yes |
| Series connection | No |
| Standard carrier on belt | 12.0000 |
| Variable belt speed | 20 to 80 cm/s |
