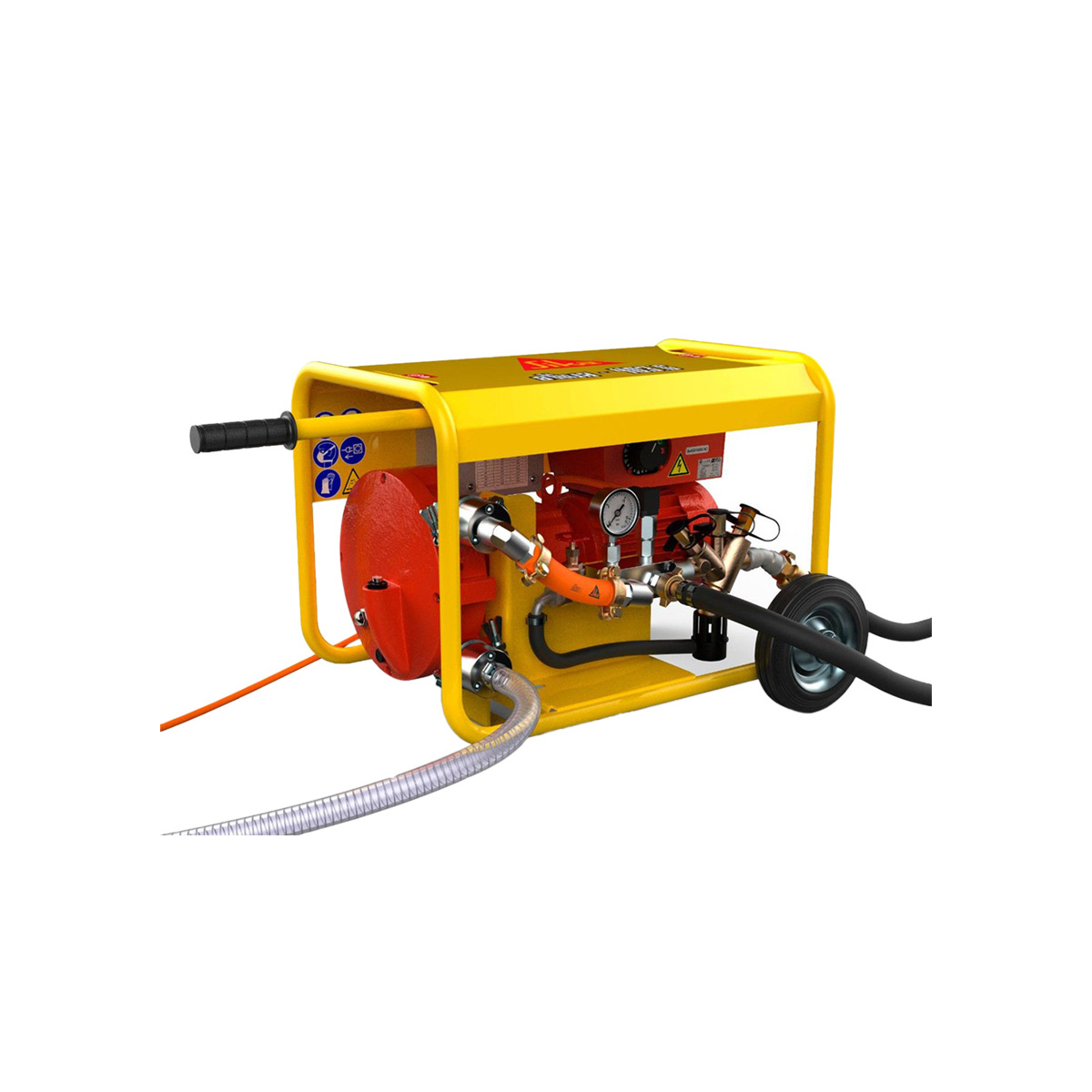

Aliva 403.6 Liquid Dosing Unit
- Product Code: WEB-AL319549
-
Description:
With the Aliva dosing units accurate dosing of liquid admixtures is very simple. High-quality materials ensuring the well-known, long and reliable quality of Aliva machines. The 403.6 comes in three different variants, Air, Manual and Synchro.
PLEASE CONTACT US FOR MORE INFORMATION AND PRICING.
VARIANTS
Aliva 403.6 AIR
The Aliva 403.6 Air is driven by compressed air. 7 bar and 3 Nm³/min of compressed air are required. The pump can be adjusted to deliver between the following volume ranges: DL10: 40-240 litres/h and DL18: 150-700 litres/h.
The flow rate is controlled by the amount of air entering the drive. A display gives an exact reading of the volume pumped.
Aliva 403.6 MANUAL
The flow rate is controlled by a potentiometer on the frequency converter, and delivers a volume of 30 – 700 litres/h.
Aliva 403.6 SYNCHRO
The output is automatically regulated according to the output of a rotor machine or concrete pump. After programming the amount of cement in the concrete and the volume per revolution or stroke, the control system converts the required delivery rate.
Dosing starts and stops synchronously with the feeding machine. The pump delivers from 30 to 700 litres/h. The flow rate can be synchronized with the output rate any piston pump.
KEY SPECIFICATION
• Additive-adding for dry and wet spraying
• Reliable and rugged
• Combine with any pump or rotor machine
FEATURES
• Inox fitting with manometer and push switch
• Air or electric drives
• Manual or synchronized output adjustments
• Suction hose with lance
BENEFITS
• Precise dosing (factory set)
• Stepless output adjustment
• Compact and robust design
• Dry run resistant
