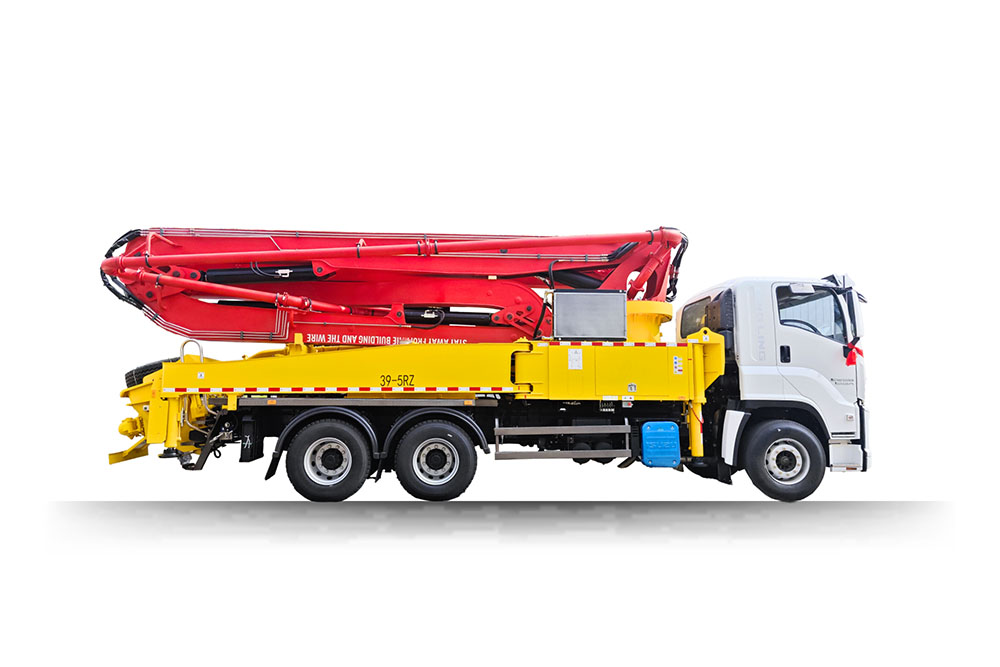

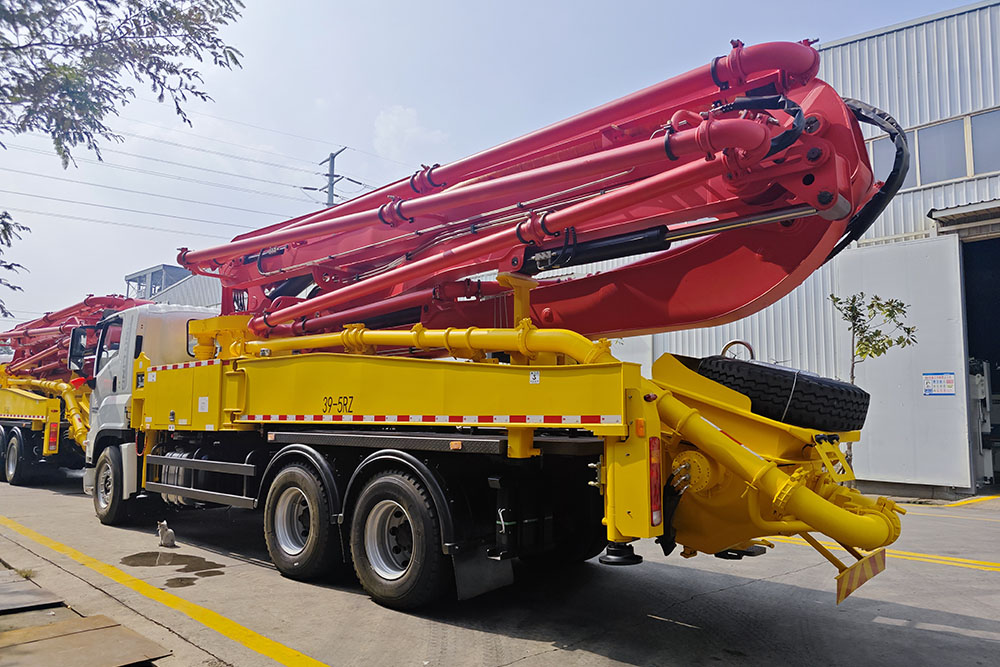

Sany 39M Truck-Mounted Concrete Pump

  • Product Code: WEB-SY39-RZ5-165
  • Description:

    SANY truck-mounted concrete pumps have a heavy-duty design with a simple user interface, which includes an intuitive HBC wireless remote. SANY pumps adopt a range of core technologies to ensure smooth pumping and safe operation. These include 700-degree boom rotation, energy saving, fault self-diagnosis, safety, smart boom system and highly wear resistant parts. Fine production, rigorous tests and reliable components of world-renowned brands guarantee a long service life for your SANY concrete pump.



KEY FEATURES

• Water tank 600 l

• Working light for illuminating hopper

• OSS one side support (assistance device)

• Vibrator on hopper grid



TECHNICAL DETAILS

Folding System - 5-arm RZ

Vertical Reach - 38.1 m

Horizontal Reach - 33.4 m

Unfolding Height - 9.2 m

Delivery Cylinder Diameter - Stroke Length - 230/1900 mm

Output  - 163 m³/hr

Delivery Pressure  - 70 bar

Strokes / min  - 35



DOWNLOADS

Data Sheet SY39 Download
